Operator Restraint System Repair 100 SRM 322

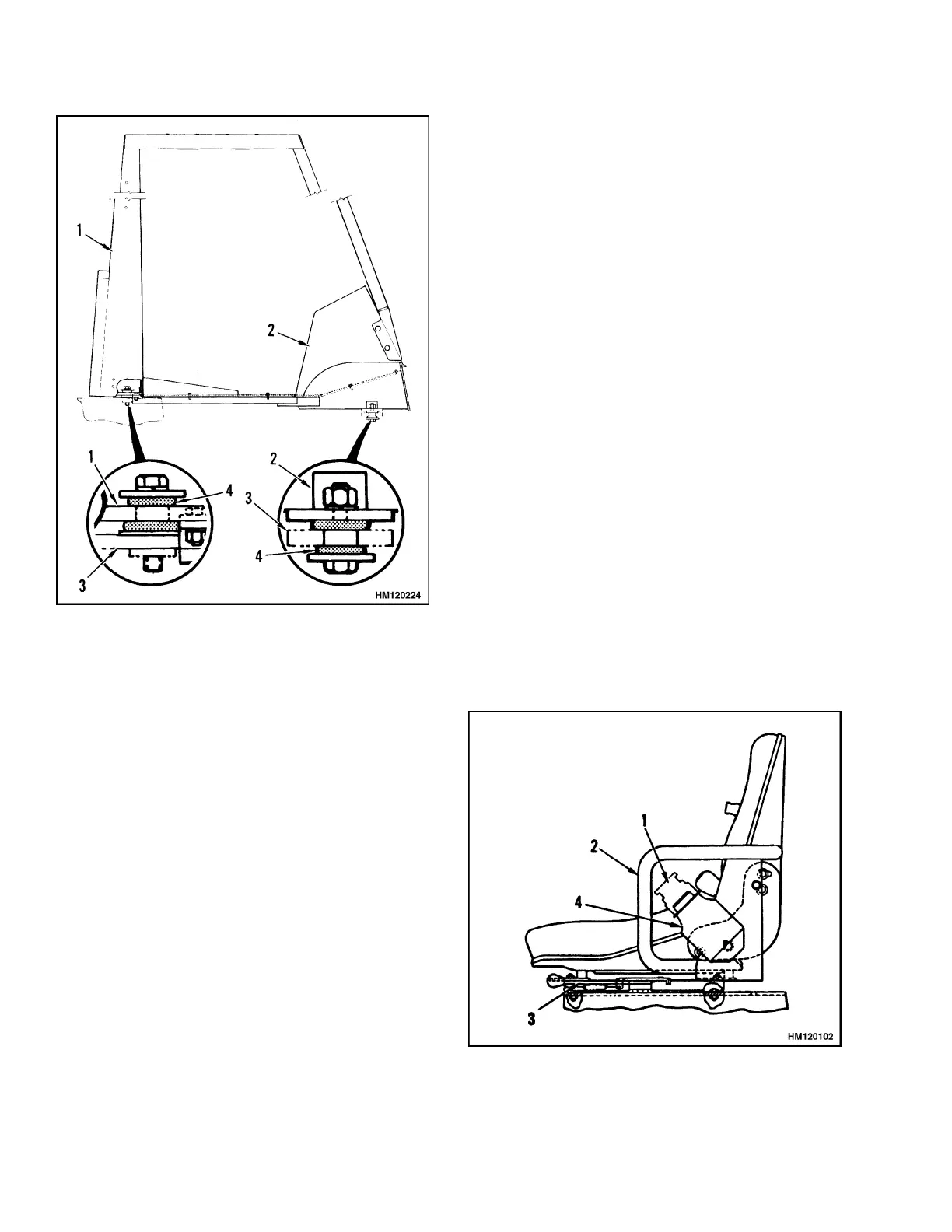

Figure 3. Overhead Guard and Cab Mounting
Legend for Figure 3
1. OVERHEAD GUARD
2. COWL
3. FRAME
4. RUBBER BUSHING
Operator Restraint System Repair
The seat belt, hip restraint brackets, seat, and
mounting are all part of the operator restraint sys-
tem. Eachitemmustbecheckedtomakesureitis
attached securely, functions correctly, and is in good
condition.
The end of the seat belt must fasten correctly in the
latch. Make sure the seat belt pulls from the re-
tractor assembly and retracts smoothly. The seat
belt must be in good condition. A seat belt that is
damagedorwornwillnotgiveprotectionwhenitis
needed.
