100 SRM 322 Description
General
This section has the description of the frame and
some connected parts. See Figure 1. Procedures for
the removal and installation of the counterweight,
hood, overhead guard, and engine are under Coun-
terweight Repair, Hood Repair, Overhead Guard Re-
pair, and Engine Repair. Checks for the operator re-
straint system and procedures for the repair of tanks
and replacement of safety labels are included.
Description
The frame is one weldment and includes the hy-
draulic tank and the fuel tank for gasoline and
diesel fuel.
There is a counterweight for each capacity of lift
truck. The counterweights are similar, but are dif-
ferent weights.
An overhead guard is fastened to the frame of the lift
truck. The overhead guard has the mounts for the
seat plate and the hood.
The hood is connected at mounts on the cowl and the
frame.

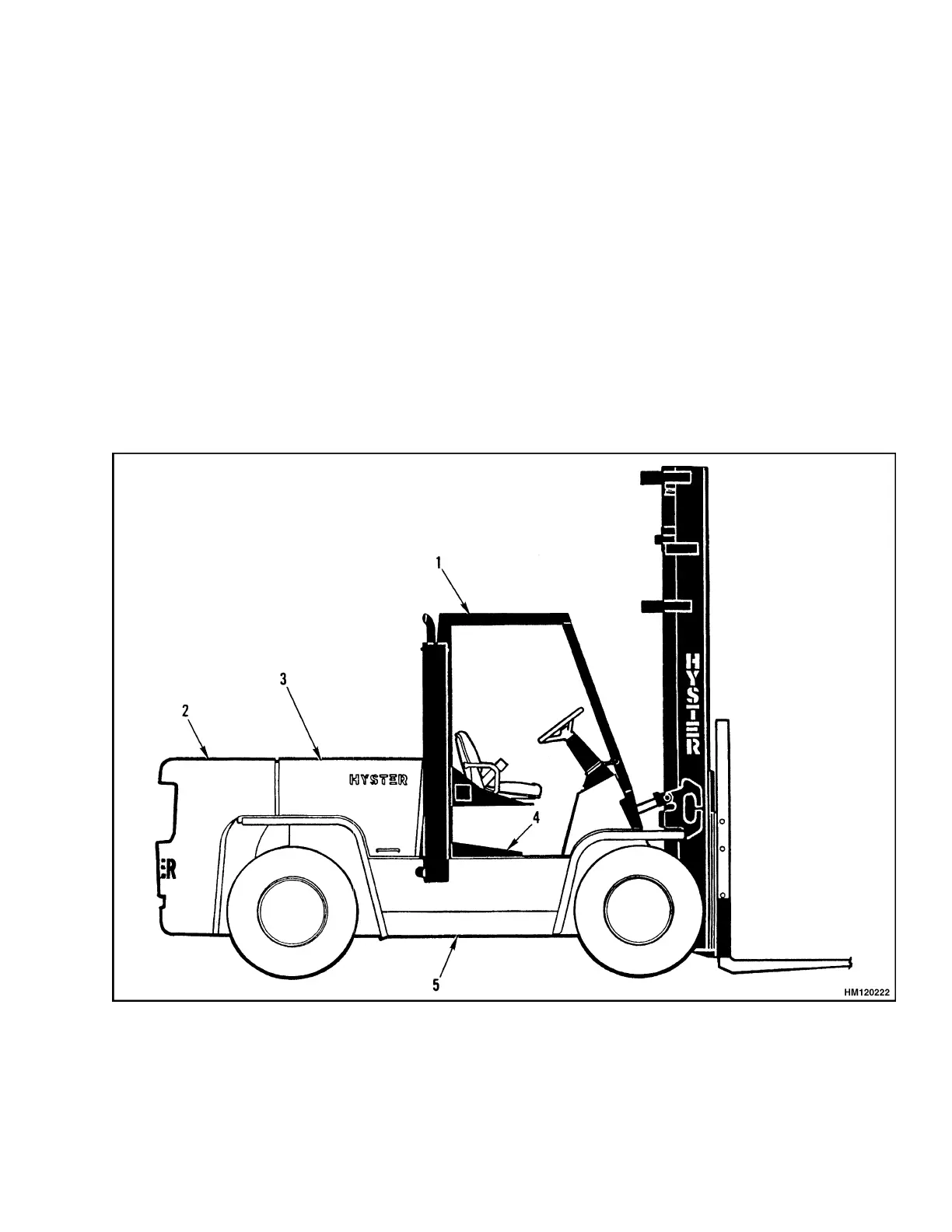

1. OVE
RHEAD GUARD
2. COUNTERWEIGHT
3. HOOD
4. FLO
OR PLATE
5. FRAME
Figure 1. Frame and Connected Parts
1
