100 SRM 322 Engine Repair
10. See Overhead Guard Repair, and install the over-
head guard. Install the brake fluid reservoir on
the bracket. Install the hood. Connect the cables
at the battery.

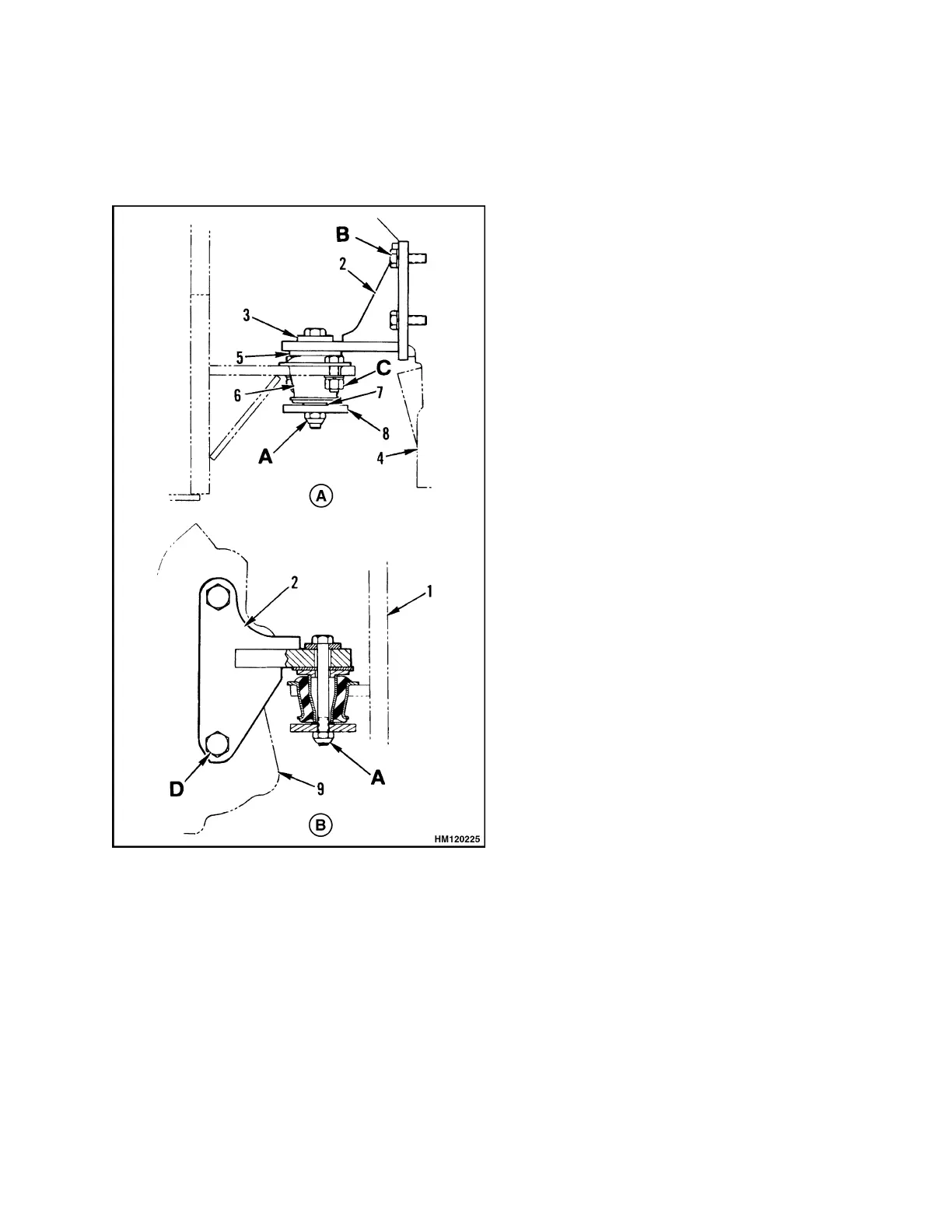

Figure 5. Engine Mounts
Legend for Figure 5
NOTE: A = 40 N•m (30 lbf ft) TORQUE
B = 56 N•m (41 lbf ft) TORQUE
C = 50 N•m (37 lbf ft) TORQUE
D = 165 N•m (122 lbf ft) TORQUE.
A. FAN END OF ENGIN
E (DIESEL SHOWN)
B. FLYWHEEL END OF ENGINE
1. FRAME
2. MOUNT BRACKET
3. WASHER
4. ENGINE
5. OVERLOAD
WASHER
6. ENGINE MOUNT
7. WASHER*
8. REBOUND
WASHER
9. TORQUE
CONVERTER OR
CLUTCH HOUSING
*USE AS NECESSARY TO ALIGN U-JOINT TO
WITHIN 0.5 to 1.5 mm (0.02 to 0.06 in.) OF TRUE
VERTICAL ALIGNMENT
9
