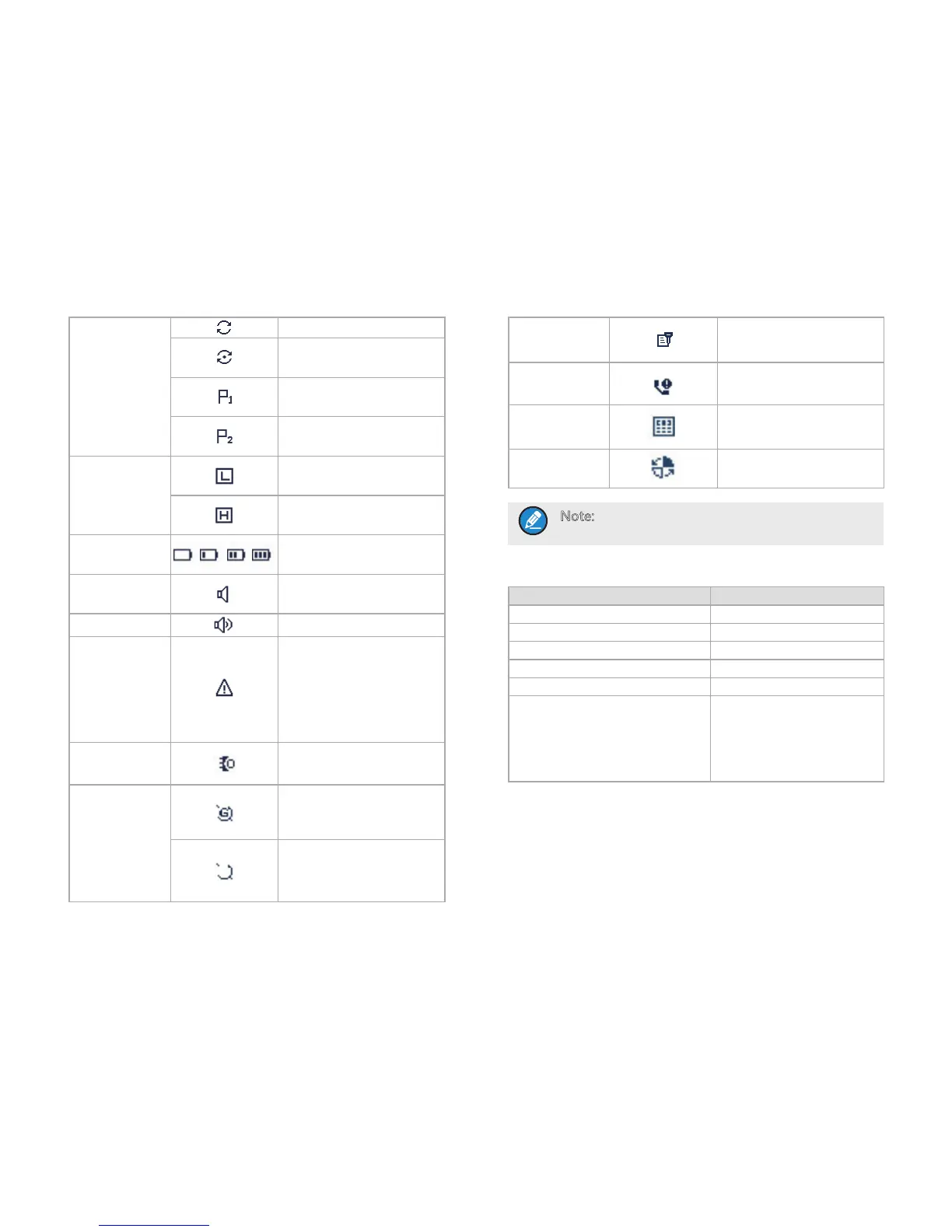

Hytera PD785 Quick Start Guide

English
22
Scan Icon
Scanning is in progress
Scanning pauses on a
non-priority channel
Scanning pauses on
Priority Channel 1
Scanning pauses on
Priority Channel 2
TX Power
Icon
Low TX power for the
current channel
High TX power for the
current channel
Battery
Strength Icon
More bars indicate more
battery power
Monitor Icon
The Monitor feature is
active
Speaker Icon The speaker is unmuted
Emergency
Icon
The Emergency mode
(other than secret
emergency) is active or
an emergency message
is received
Accessory
Icon
An accessory is
connected
GPS Icon
The GPS feature is
active, and valid GPS
data is received
The GPS feature is
active, but no valid GPS
data is received
Scrambler/
Encrypt Icon
The Scrambler/Encrypt
feature is active
Missed Call
Icon
A call is missed
DTMF
Keypad Icon
The DTMF keypad is
enabled
Roam Icon Roaming is in progress
Note: The description related to the GPS feature
in this guide is applicable to PD78XG only.
■
LED Indicator
LED Indicator Radio Status
LED flashes green. Powering on
LED glows red. Transmitting
LED glows green. Receiving
LED flashes green slowly. Scanning
LED flashes orange rapidly. Emergency
LED glows orange.
After voice communication
ends, you can hold
down the
PTT
key to talk
while the LED is glowing
orange.
4. Basic Operations
■
Turning the Radio On/Off
Rotate the Radio On-Off/Volume Control knob clockwise/
counter-clockwise until a click is heard to turn the radio on/off.

Hytera PD785 Specifications

General

Channel Capacity	1024
Zone Capacity	64
Operating Voltage	7.4V
Weight	335 g
IP Rating	IP67
Operating Temperature	-30°C to +60°C
Frequency Range	VHF: 136-174 MHz, UHF: 400-470 MHz
RF Power Output	VHF: 5 W, UHF: 4 W
Channel Spacing	12.5 kHz/25 kHz
Digital Protocol	DMR
Bluetooth	Yes
GPS	Yes
Digital/Analog	Yes
Dimensions	124 X 55 X 37mm
Display	1.8 inch, 65536 colors
