When the radio enters the download mode successfully, its LED indicator flashes red for
seconds and then glows red solidly. Otherwise, it fails. In this case, please turn off the radio and
repeat the above operations.
Step 4 Disconnect the palm microphone from the radio, and use PC37 to connect the radio to PC.
3.1.3 X1e/X1p/PD60X/PD66X/PD68X
The operations are the same as that in Using PC47 Programming Cable of 3.1.2 MD78X/MD65X
section.

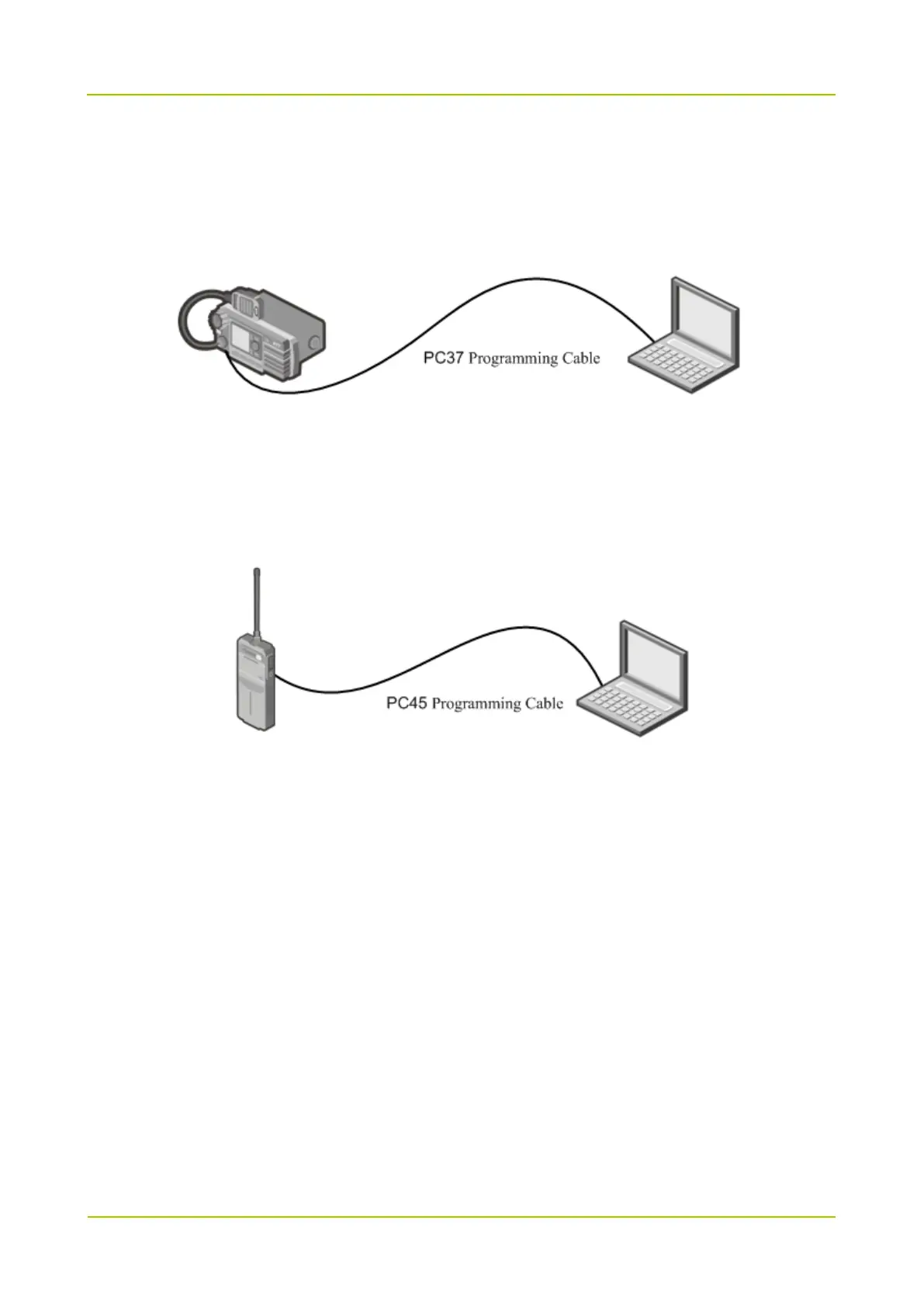

X1e as the example, the connection diagram is shown as below.
3.2 Starting Upgrade
After the radio enters the download mode, please operate as follows:
Step 1 Run the upgrade software to enter the main interface.
To Next Page
