Hytera PD78XG Owner's Manual

3

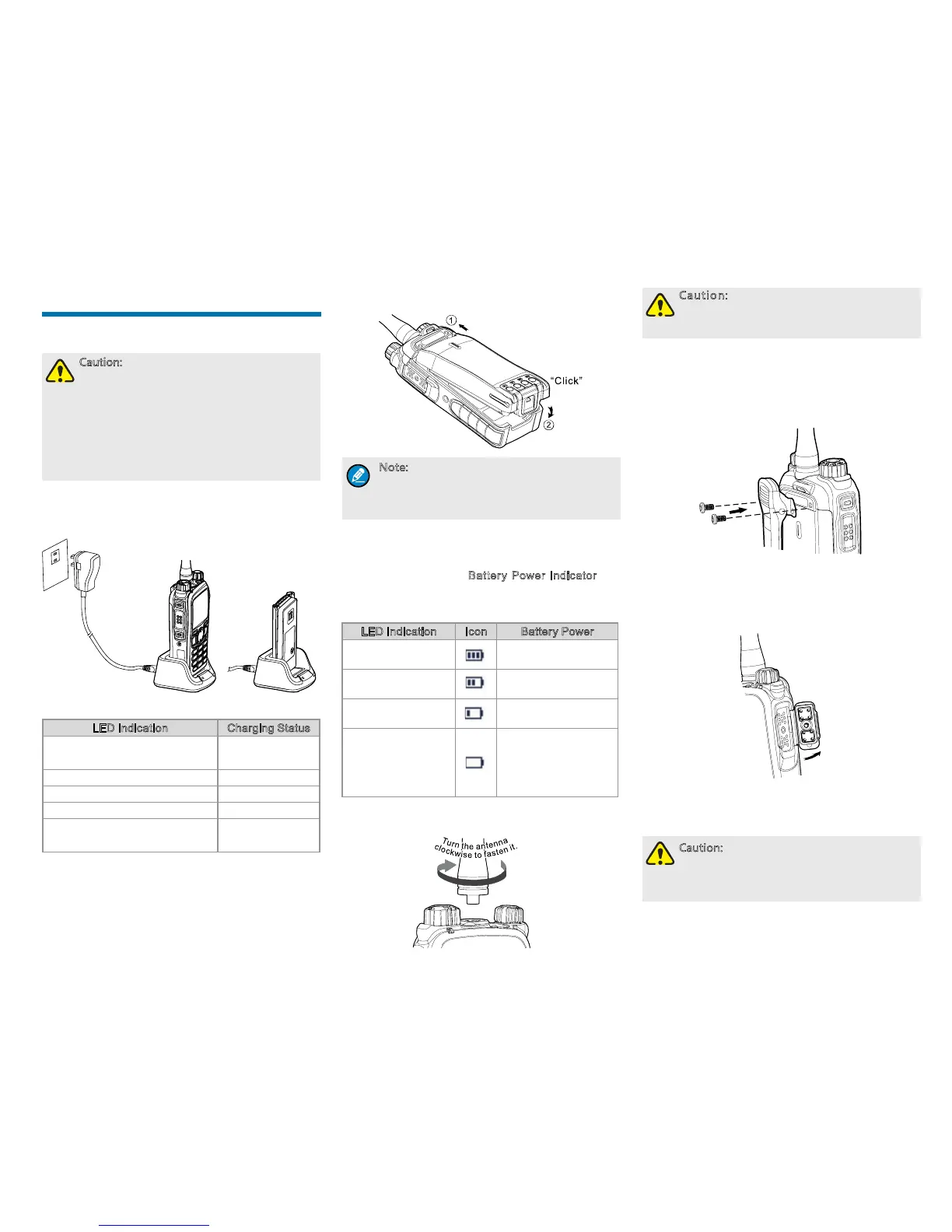

Before Use
Charging the Battery
Caution:
●
Make sure the radio is powered off
before charging. Read the Safety
Information Booklet in advance to get
necessary safety information.
●
To achieve optimal battery performance,
please charge the battery for at least 5
hours before initial use.
Please use the charger specified by the Company to
charge the battery. Charging Diagram is listed below.
Charging Status Indication (on charger):
LED Indication Charging Status
The LED Indicator flashes red
slowly.
Standby (no load)
The LED Indicator glows red. Charging
The LED Indicator glows orange. 90% charged
The LED Indicator glows green. Fully charged
The LED Indicator flashes red
rapidly.
Charging failed
Charge the Radio
(with battery attached)
Charge the Battery
Attaching the Battery
Note: To remove the battery, turn off the
radio first. Then slide the battery latch
upwards to unlock the battery and remove
it.
Checking the Battery Power
You may check the current battery power by holding
down the programmed Battery Power Indicator key
preset by your dealer. And release the key to exit.
Battery power indications are listed below:
LED Indication Icon Battery Power
The LED Indicator
glows green.
High
The LED Indicator
glows orange.
Medium
The LED Indicator
glows red.
Low
The LED Indicator
glows red and low
battery alert beeps.
Under the low battery
threshold. Please
recharge or replace
the battery for proper
radio operation
Attaching the Antenna
Caution: Do not hold the radio by its
antenna, otherwise the performance and
lifespan of the antenna will be reduced.
Attaching the Belt Clip
1. Loosen the screws from the back of the radio.
2. Align the screw holes of the belt clip with those on
the radio’s back, and then tighten the screws.
Attaching the Accessories
1. Open the accessory connector cover as shown
below.
2. Align the accessory (such as an audio accessory,
or a programming cable) plug with the accessory
connector.
Caution:
Do not scrape the silicone rubber
surrounding the accessory connector screw
hole, in order to ensure the waterproof
performance of the radio.

Hytera PD78XG Specifications

General

Brand	Hytera
Model	PD78XG
Category	Portable Radio
Language	English
