5-20
BASIC OPERATION

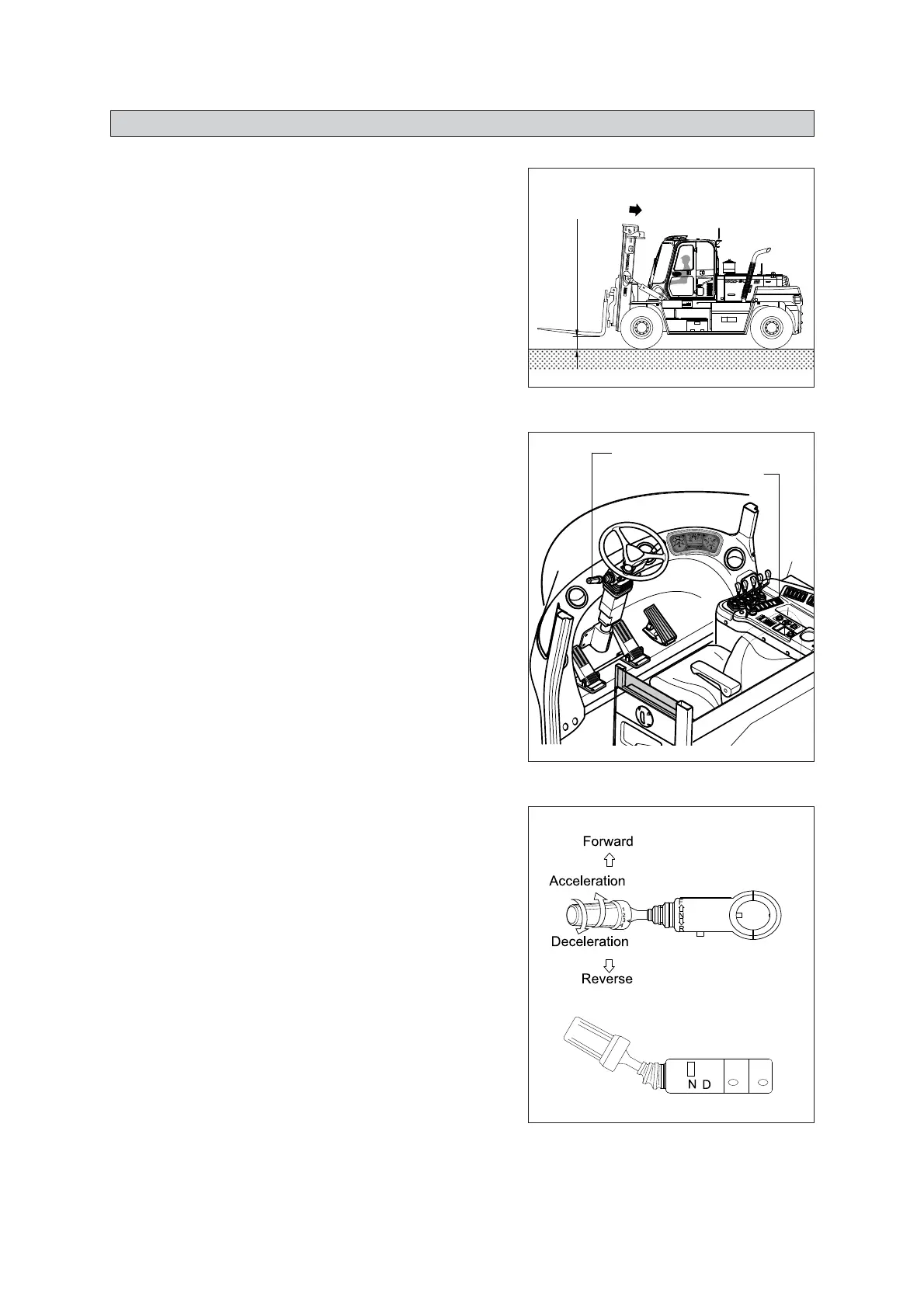

Traveling posture
Lift the forks so that the forks are placed 15~
20
cm
(6~8
in
) above the ground and tilt back the
mast fully.
(1)
Traveling operation
When warm-up operation is completed after the
engine is started, move the truck according to
the following procedure.
Release the parking brake.
Put the gear selector lever in the 1st stage of
forward or backward direction and press gently
the accelerator pedal to move the truck.
①
②
Changing direction and speed
Changing direction and speed
The gear selector lever is designed for the
mounting on the left side of the steering
column.
The positions (speeds) 1 to 3 are selected by a
rotary motion, the driving direction Forward (F) -
Neutral (N) - Reverse (R) by tilting the gear
selector lever.
A neutral lock is installed as protection against
inadvertent drive off.
·
Position N - Gear selector lever blocked in
this position
·
Position D - Driving
When doing work, run the truck in the 1st or
2nd speed.
15-20 cm(6~8in)
Tilt back fully
10. TRAVELING OF THE TRUCK
10. TRAVELING OF THE TRUCK
1)
(2)
(3)
①
②
③
④
Gear selector lever
Parking brake switch
160D9LOP10
160D9LOP14
110D94OP33
