2. DRIVE SYSTEM
GEAR SELECTOR LEVER
Neutral starting
Engine can be started only when the gear selector lever is in neutral position.
Shifting forward/reverse
Forward
Push the lever forward then forward solenoid valve operates and oil comes to forward clutch
thus the truck will run forward.
Reverse
Pull the lever backward then reverse solenoid valve operates and oil comes to reverse clutch
thus the truck will run backward.
OIL LEAKAGE
Check that there is no oil leakage from torque converter, transmission or control valve. If oil oozes
out and forms drops, replace packing.
(1)
(2)
①
②
1)
2)

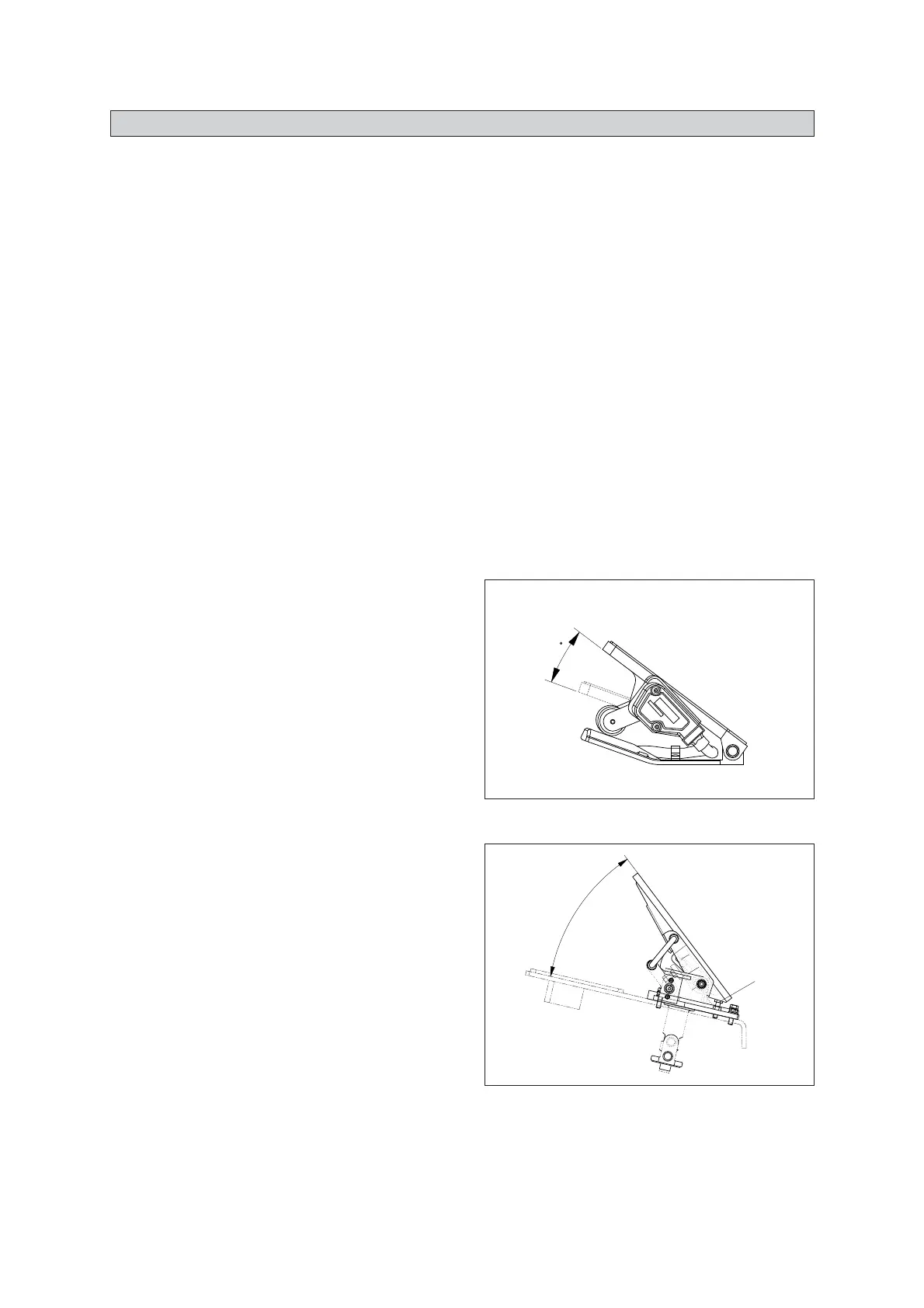

ADJUSTMENT OF PEDAL
Accelerator pedal
Pedal operating range is "A". If the range
is differ much from specification, replace
the pedal immediately.
·
Operating angle(A) : 17.5±2
。
(1)
3)
160D7TA01
Brake pedal
·
Adjust stopper bolt (1) so that pedal
angle is "H".
·
Pedal angle (H) : 35±1
。
(2)
(1)
H
160D7TA04
