Speed meter
The speed meter displays the speed of truck in
mph and km/h .
- 0~50 km/h
- 0~31 mph
(1)
Η
50D93CD03K
This gauge indicates the amount of fuel in the fuel tank.
Fill the fuel when the warning lamp lights ON or the indicator
moves E point, refuel as soon as possible to avoid running out of
fuel.
If the gauge indicates below E point even though the truck is
on the normal condition, check the electric device as that can
be caused by the poor connection of electricity or sensor.
Η
Θ
ö
This indicates the temperature of coolant.
 White range : 40~104 ˚C (104~219 ˚F )
 Red range : Above 104 ˚C (219 ˚F )
Keep idling engine at low speed until the indicator is in the
operating range.
If the indicator is in the red range, turn OFF the engine and
check the radiator and engine.
If the gauge indicates red range even though the truck is on
the normal condition, check the electric device as that can be
caused by the poor connection of electricity or sensor.
Η
Θ
Ι
ö
This range indicates the temperature of transmission oil.
 White range : 40~107 ˚C (104~225 ˚F )
 Red range : Above 107 ˚C (225 ˚F )
Keep idling engine at low speed until the indicator is in the
operating range.
If the indicator is in the red range, it means the transmission is
overheated. Be careful that the indicator does not move into the
red range.
Η
Θ
Ι
50D93CD04K
50D93CD10K
50D93CD11K

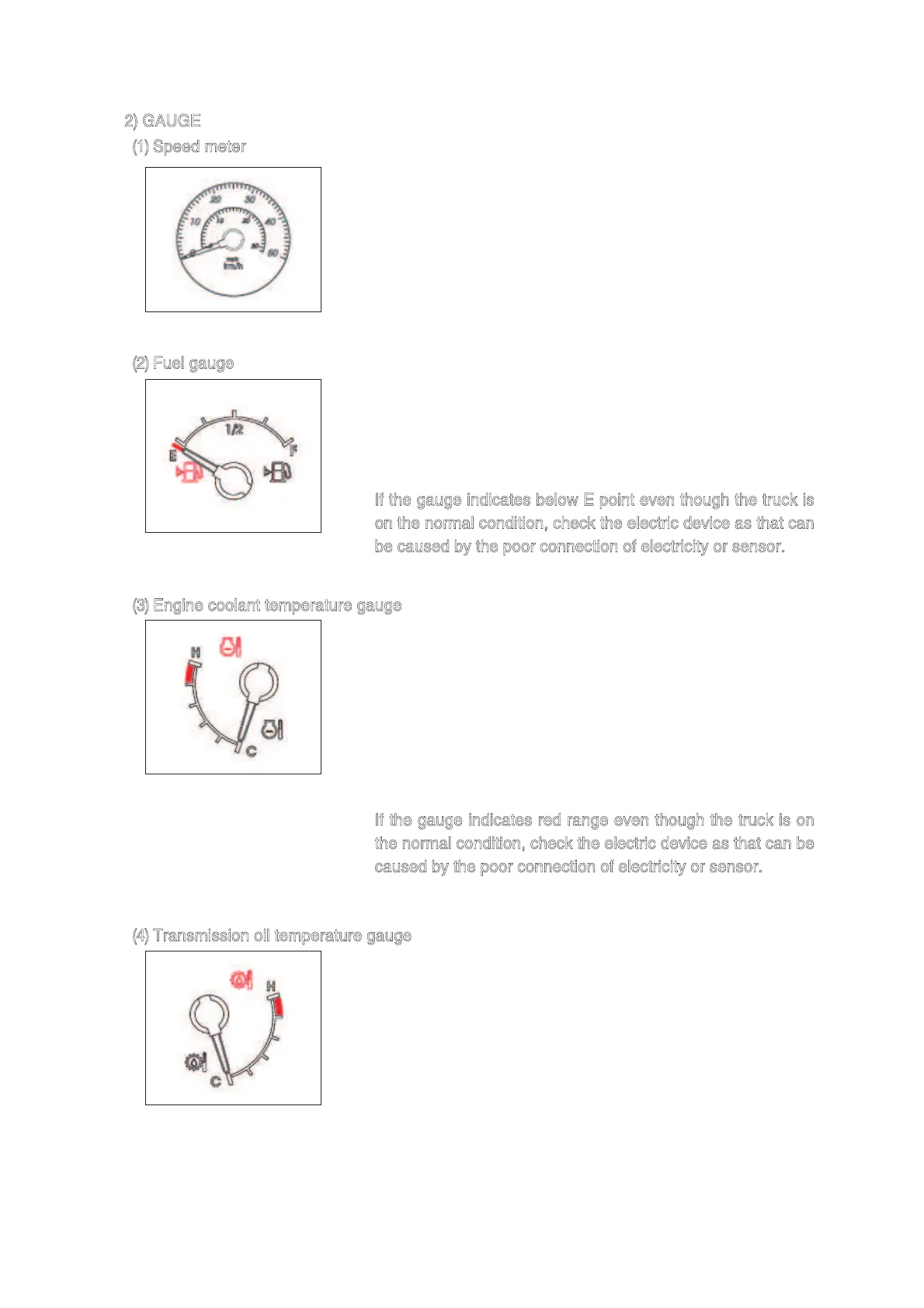

GAUGE 2)
Fuel gauge (2)
Engine coolant temperature gauge (3)
Transmission oil temperature gauge
(4)

Hyundai 180D-9B Specifications

General

Model	180D-9B
Category	Forklifts
Type	Diesel Forklift
Power Source	Diesel
Transmission	Automatic
Tire Type	Pneumatic
Lift Height	3000 mm
