Hyundai 35DS-7 User Manual

7-2
A
B
DETAIL A
DETAIL B
1
2
3
4
9
10
11
12
13
14
15
16
17
19
20
21
5
6
7
8
18
D357EL06H

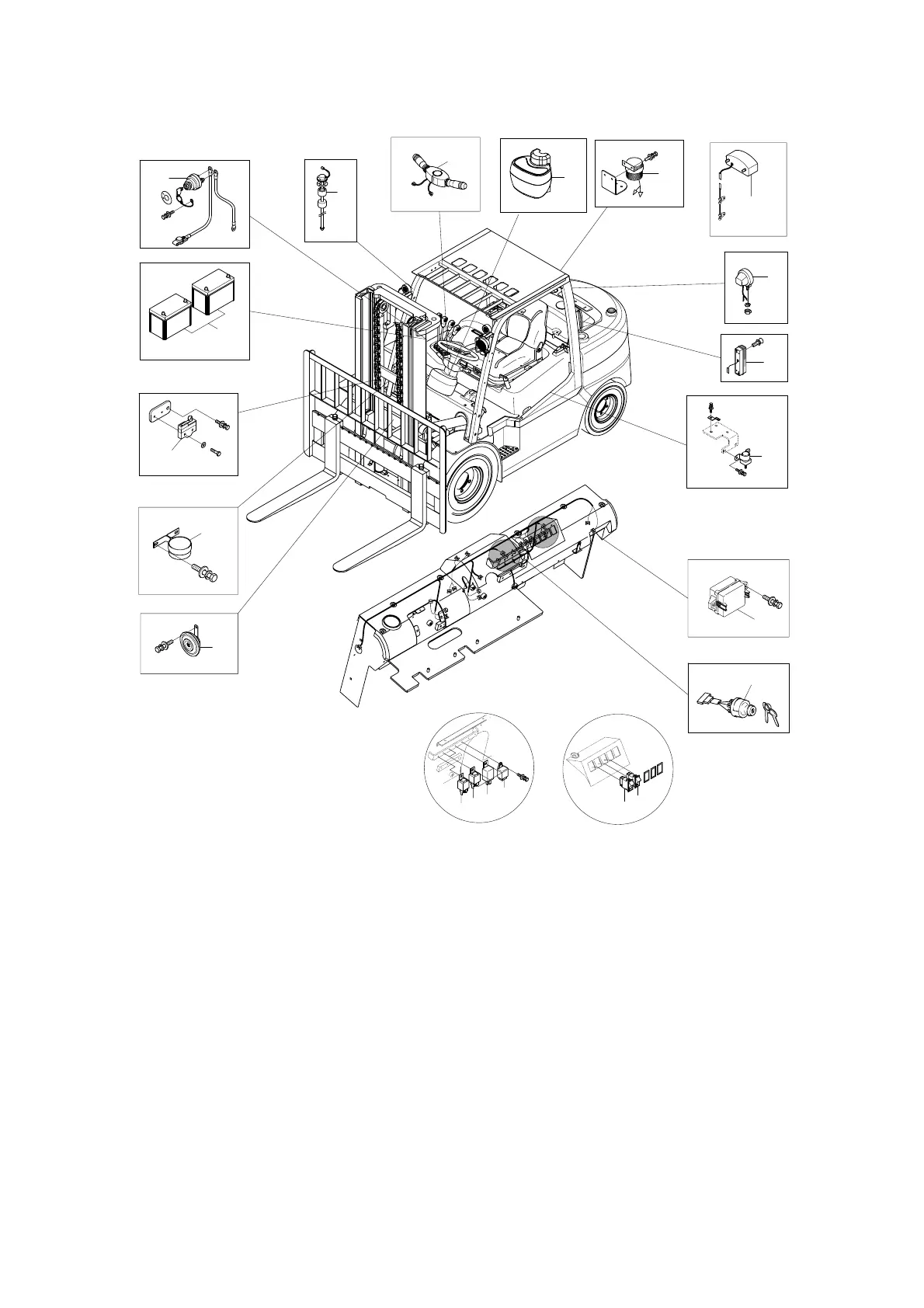

1 Fuse box
2 Start switch
3 Work lamp switch(opt)
4 Hazard switch(opt)
5 Relay 4P
6 Relay 4P
7 Flasher unit
8 Relay 5P
9 High horn
10 Tilt alarm
11 Tilt switch
12 Battery
13 Master switch
14 Fuel sender
15 Combination switch
16 Monitor panel
17 Beacon lamp(opt)
18 License lamp(opt)
19 Rear work lamp(opt)
20 Rear combination lamp
21 Start relay
2. 35D/40D/45D-7(HMC ENGINE)

Hyundai 35DS-7 Specifications

General

Model	35DS-7
Category	Forklifts
Load Capacity	3500 kg
Power Source	Diesel
Lift Height	3000 mm
Mast Type	Duplex
Load Center	500 mm
Engine Power	50 kW
Fork Length	1070 mm
Tire Type	Pneumatic
Transmission	Automatic
Fuel Type	Diesel
Fuel Tank Capacity	70 liters
