Hyundai 30L-7 Service Manual

420 pages

To Next Page

To Next Page

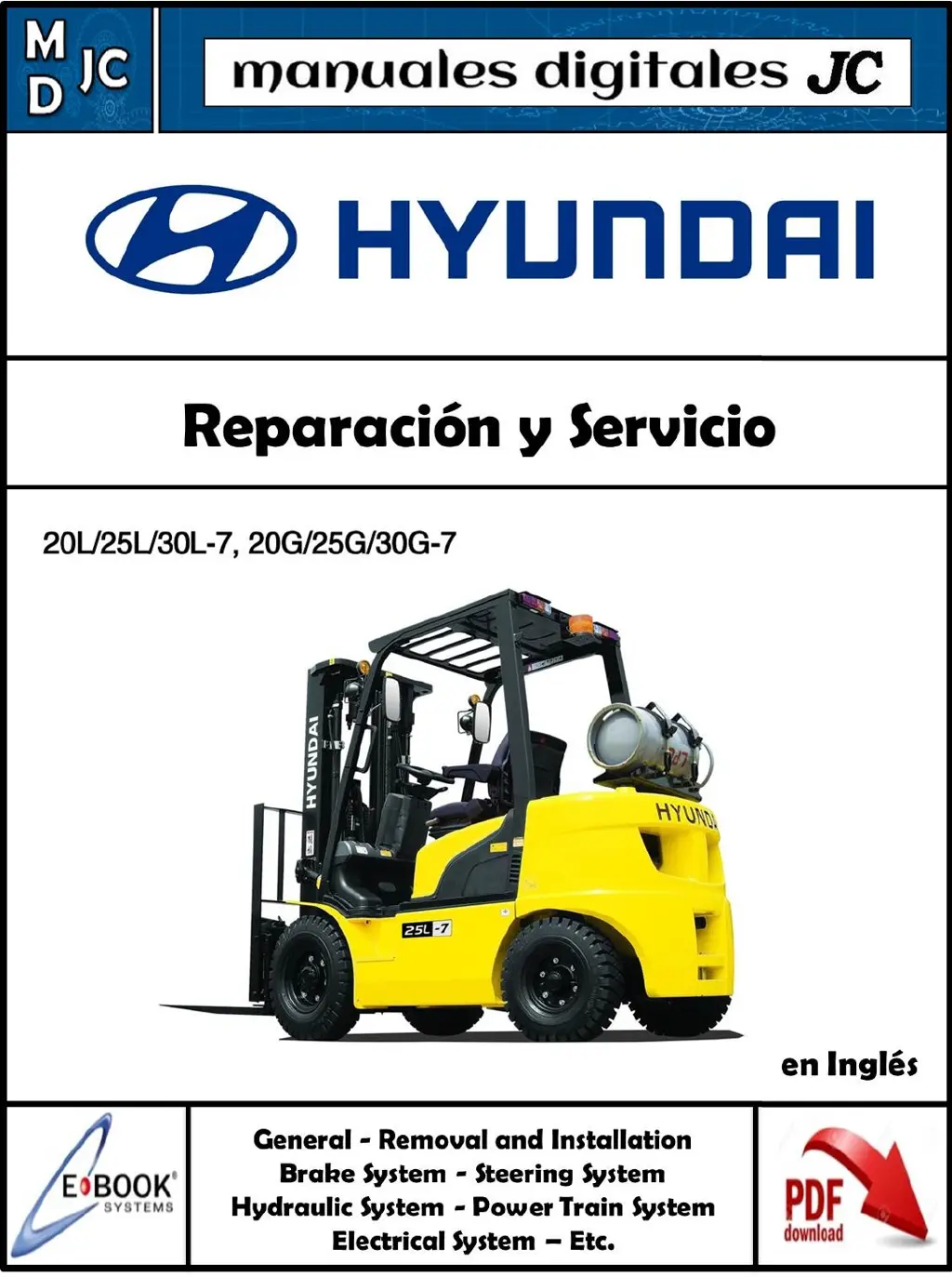

Page #1 background image

Loading...

Page #1 background image

Table of Contents

Questions and Answers:

S
scottingramAug 18, 2025
What to do if power is not transmitted in my Hyundai 30L-7 Forklifts?
- J
  Jack FosterAug 18, 2025
  If power is not being transmitted in your Hyundai Forklifts, it could be due to several issues. Start by checking the oil level and adding oil if necessary. A damaged clutch plate could be the problem; listen for abnormal sounds at low converter speed and replace if damaged. Inspect the oil pump driving system for wear on the pump gear, shaft, and spline, replacing any defective parts. Other potential causes include a broken shaft, lack of oil pressure, improperly positioned inching valve and link lever or forward/reverse spool and link lever. Also, check for a clutch that fails to disengage or is seizing, a broken clutch snap ring, or a damaged clutch drum. For each of these, you should disassemble, check, and repair or replace the faulty components.
J
Jillian WrightAug 28, 2025
What to do if Hyundai Forklifts has unusual oil pressure?
- J
  Jessica ReedAug 28, 2025
  If your Hyundai Forklifts is experiencing unusual oil pressure, a malfunctioning control valve could be the cause; check its spool operation and replace the valve if necessary. In cold weather with high oil viscosity, consider changing the oil if the atmospheric temperature is below freezing. The use of improper oil can also lead to pressure issues, so check and change the oil. Other potential causes include a malfunctioning (worn) gear pump, excessive oil leaks, or air being sucked in. Low oil level or a clogged oil filter can also contribute to unusual pressure. For issues like gear pump malfunction, excessive oil leaks, or air suction, disassemble, check, and repair or replace the affected components.
M
martinezalexandriaSep 1, 2025
What could cause Hyundai 30L-7 Forklifts to not transmit power, even after initial troubleshooting?
- D
  Dylan HernandezSep 2, 2025
  If power is still not being transmitted in your Hyundai Forklifts, even after initial checks, consider the possibility of foreign matter intruding into the oil passage to the clutch. Another potential cause is a worn shaft spline. In both cases, you should disassemble, check, and repair or replace the affected components.

Hyundai 30L-7 Specifications

General

Brand	Hyundai
Model	30L-7
Category	Forklifts
Language	English

Summary

IMPORTANT SAFETY NOTICE

SAFETY INFORMATION

Provides general warnings and precautions for working on the engine safely.

CHAPTER 3. ENGINE ELECTRICAL SYSTEM

2. IGNITION SYSTEM

Covers ignition system overview, troubleshooting, and inspection of coils and plugs.

3. CHARGING SYSTEM

Details alternator components, troubleshooting, and testing procedures for the charging system.

4. STARTING SYSTEM

Explains starting system components, troubleshooting, and inspection of the starter motor.

SECTION 2 REMOVAL AND INSTALLATION OF UNIT

Group 2 Removal and Installation of Unit

Details the procedures for removing and installing major forklift units like the mast and carriage.

SECTION 3 POWER TRAIN SYSTEM

SECTION 4 BRAKE SYSTEM

Group 3 Tests and Adjustments

SECTION 5 STEERING SYSTEM

SECTION 6 HYDRAULIC SYSTEM

Group 3 Disassembly and Assembly

Provides procedures for disassembling and assembling the hydraulic gear pump.

SECTION 7 ELECTRICAL SYSTEM

Group 2 Electrical Circuit

Group 5 Troubleshooting

SECTION 8 MAST

Group 2 Operational Checks and Troubleshooting

Details operational checks and troubleshooting for forks and mast issues.

Group 3 Adjustment

Provides procedures for adjusting mast load rollers and carriage load rollers.

Group 4 Removal and Installation

Outlines the steps for removing and installing forks, backrest, carriage, and mast components.
