Hyundai 35DS-7 User Manual

8-2

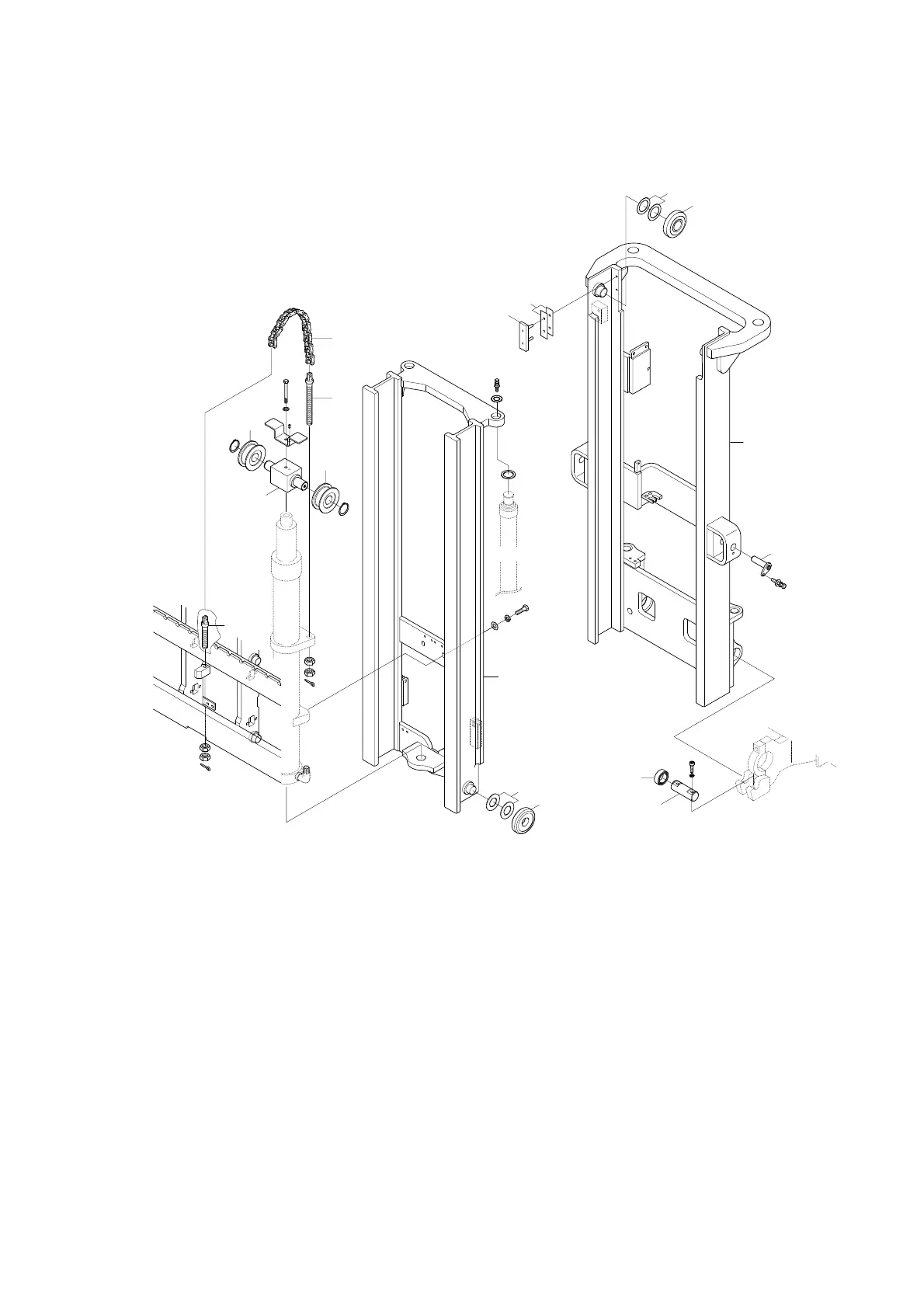

2. 2 STAGE MAST(VF MAST)
1
3
13
4
2
5
8
Free lift
cylinder
10
11
9
12
9
13
3
10
Frame
7
6
Outer mast
Inner mast
Carriage
Lift cylinder
D357MS02
1 Outer mast
2 Shim
3 Roller bearing
4 Backup liner
5 Tilt cylinder pin
6 Mast mounting pin
7 Bearing
8 Inner mast
9 Chain sheave bearing
10 Anchor bolt
11 Chain
12 Sheave bracket
13 Shim

Hyundai 35DS-7 Specifications

General

Model	35DS-7
Category	Forklifts
Load Capacity	3500 kg
Power Source	Diesel
Lift Height	3000 mm
Mast Type	Duplex
Load Center	500 mm
Engine Power	50 kW
Fork Length	1070 mm
Tire Type	Pneumatic
Transmission	Automatic
Fuel Type	Diesel
Fuel Tank Capacity	70 liters
