WARNING! UNPLUG THE AC CORD FROM GAME BEFORE REPLACING SENSORS!
Follow the instructions in “Accessing score sensors” .

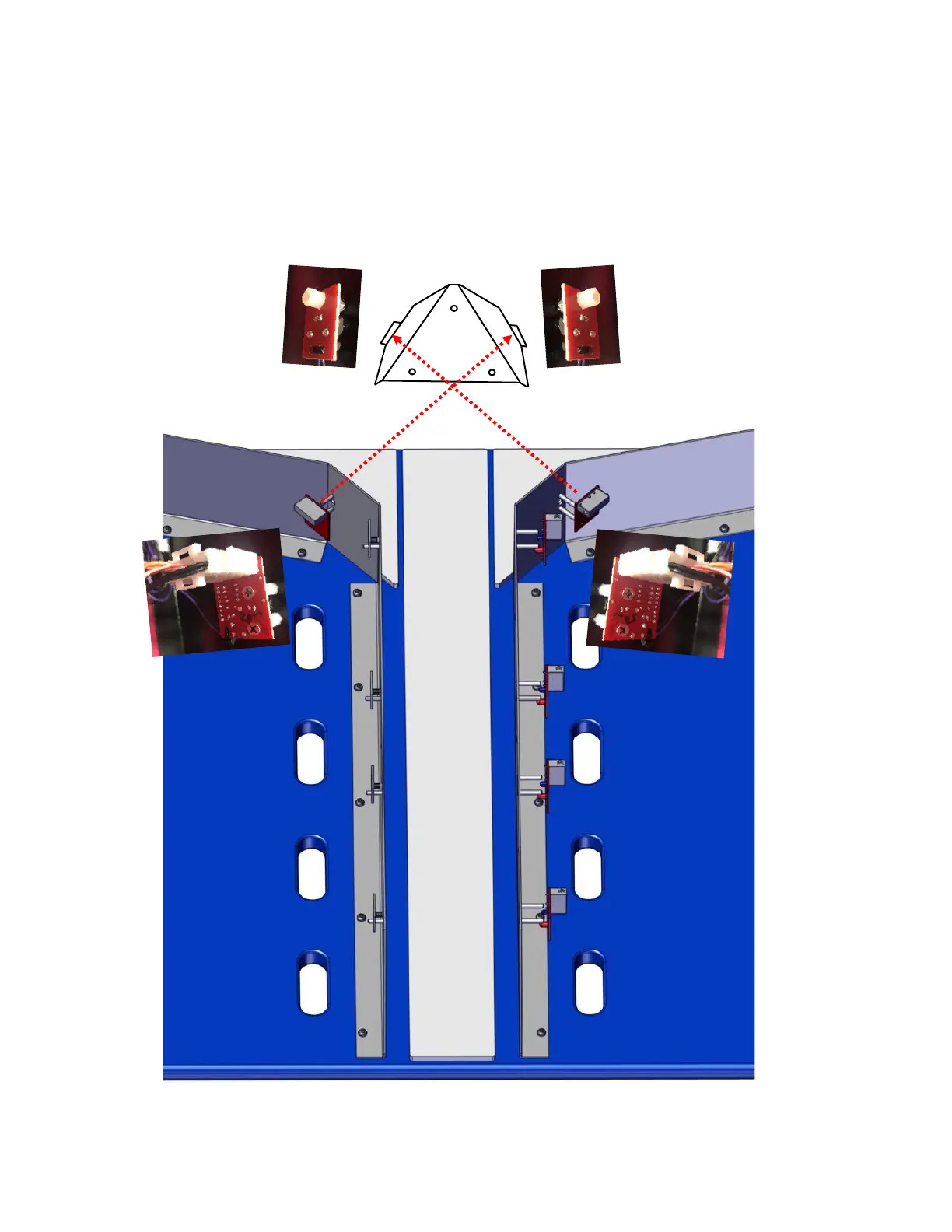

Each sensor is two boards with a harness that connects them together. The board with the
connection to the game’s harness is held in place by #2 Phillips screw. The other board is
attached with a standoff. The boards are aligned straight across from each other.
LEFT AND RIGHT 100 SCORE SENSORS
