I.C.E Iceball Pro - Main Board Connector Pinouts; Audio, Buttons, and Power Connections; Output and RGB Lighting Connections; Sensor and Display Interface

25
P2
J3
P5
J4
J6
J1
P4
J5
SD CARD
1
2
.
.
7
8
2 1
4 3

10 9
12 11
4 1
5 2
6 3
3 1
4 2
4
3
2
1
1 2 3 4
5 6 7 8
3.3V
BAT
2
1

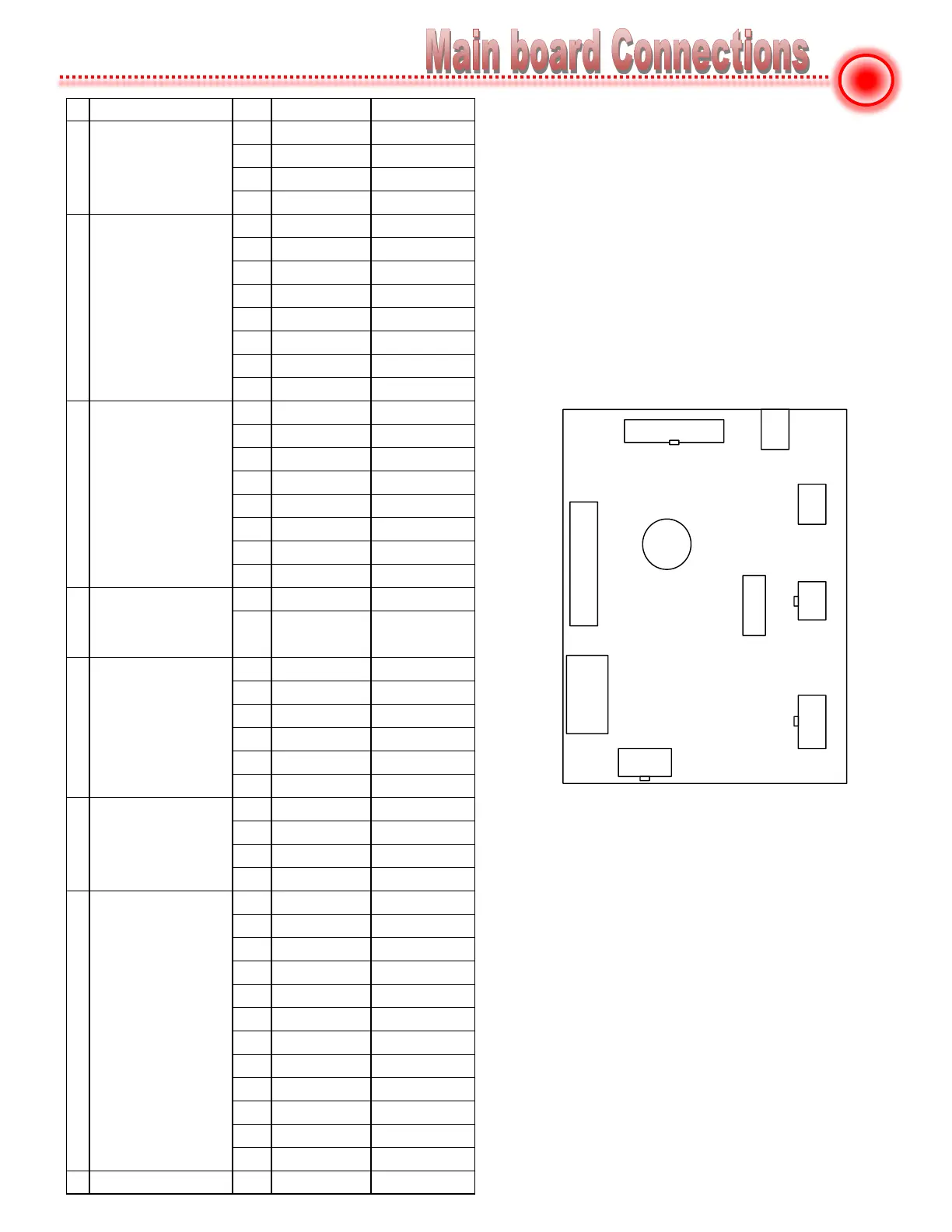

ID Type Pin Descripon Wire Color
J1 .100" 4-Pin Header
1 Le (+) RED/GRY
Audio
2 Le (-) BRN/GRY
3 Right (+) RED/WHT
4 Right (-) BRN/WHT
J3 .100" 8-Pin Header
1 N/C -
Buons
2 Start Light YEL/BLU
3 Start GRY/BLU
4 Player WHT/BLU
5 Game WHT/VIO
6 Up WHT/GRY
7 Down WHT
8 GND BLK/WHT
J4 .165" 8-Pin Header
1 PGND BLK/WHT
Power In
2 PGND BLK/WHT
3 GND BLK
4 GND BLK
5 +12VDC ORG
6 +12VDC ORG
7 +5VDC RED
8 +5VDC RED
J5 .156" 2-Pin Header
1 +12VDC ORG x2
Output 2
Enable &
MRQ Light GRY/BRN x2
J6 .165" 6-Pin Header
1 GND BLK
+5VDC out
2 GND BLK
3 GND BLK
4 +5VDC RED
5 +5VDC RED
6 +5VDC RED
P4 .165" 4-Pin Header
1 Red RED/BLK
RGB Lights
2 Green GRN/BLK
3 N/C -
4 Blue BLU/BLK
P5 .079" 12-Pin Header
1 N/C -
Sensors
2 GND BLK
3 Score 20 WHT/RED
4 Score 10 WHT/BRN
5 Score 30 WHT/YEL
6 Score 40 WHT/ORG
7 Score 50/100 WHT/GRN
8 Score 50/100 WHT/BLU
9 N/C -
10 N/C -
11 N/C -
12 N/C -
P2 .100" 16-Pin Header 1-12 Displays Ribbon Cable
KEY:
GRY = GREY
WHT = WHITE
BLU = BLUE
BLK = BLACK
ORG = ORANGE
GRN = GREEN
YEL = YELLOW
