I.C.E Iceball Pro - Score Sensor Replacement Guide; Safety Warning: Disconnect Power; 10, 20, 30, 40 Point Sensor Details

18
10 hole
20 hole
30 hole
40 hole
WARNING! UNPLUG THE AC CORD FROM GAME BEFORE REPLACING SENSORS!
Follow the instructions in “Accessing score sensors” .

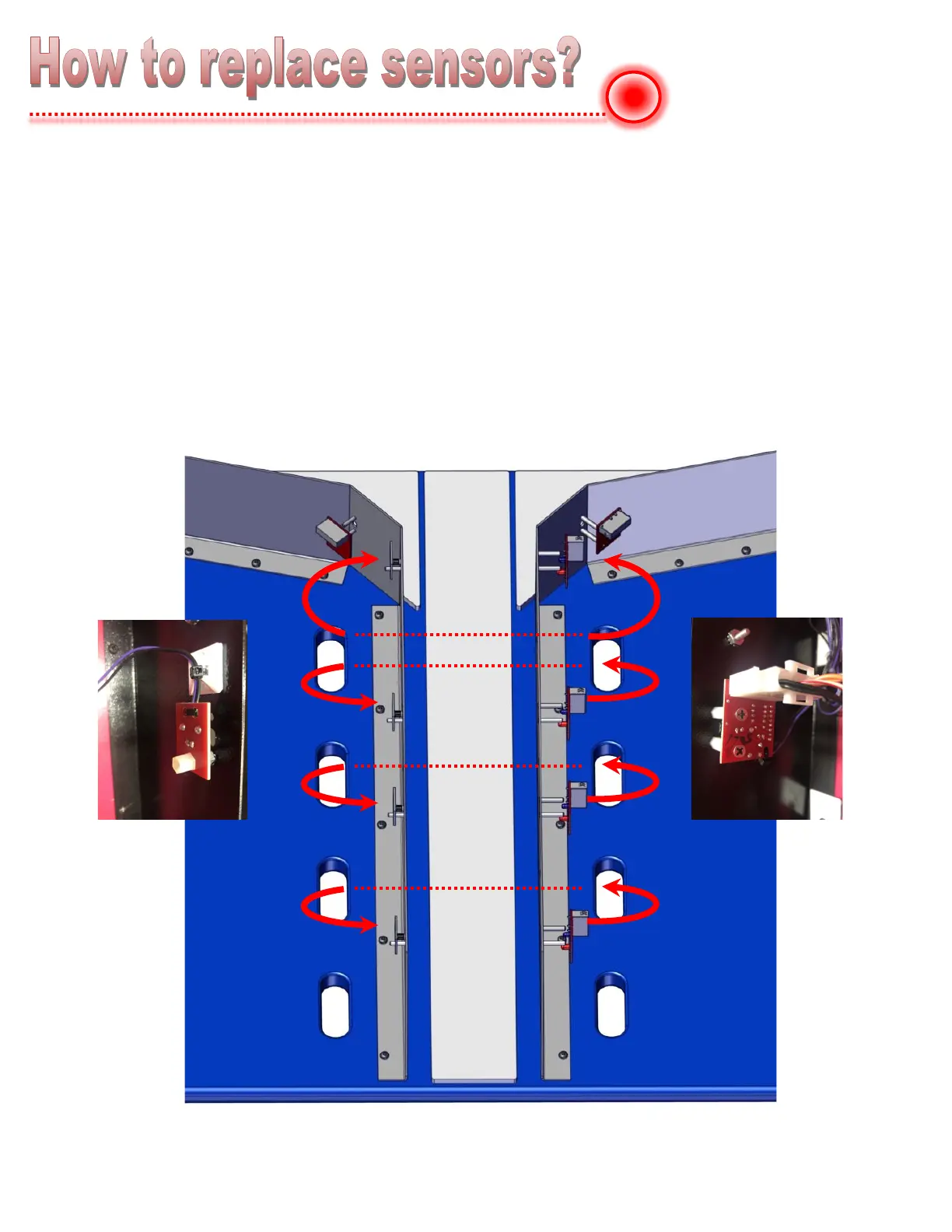

Each sensor is two boards with a harness that connects them together. The board with the
connection to the game’s harness is held in place by #2 Phillips screw. The other board is
attached with a standoff. The smaller board should be insert through the bottom cabinet holes
shown below and attached to the opposite side. When both are mounted to the cabinet, the
harness that connects the two should be underneath.
SCORE SENSORS 10, 20, 30 40
