iB KOJAK - Roll Scanning; Finger Placement

13
ROLL SCANNING
FINGER PLACEMENT
When performing rolls, place indicated finger firmly against the bezel and
platen to ensure proper contact.
· Roll scan LED illuminates
· Individual LEDs indicate specific finger to scan
· Place finger flat on platen between bezel guide markers
extending slightly past the first knuckle
· While maintaining good contact with both platen and bezel,
roll finger 45 degrees to the left
ROLL
CAPTURE CAPTURE CAPTURE
ROLL
CAPTURE CAPTURE CAPTURE
ROLL
CAPTURE CAPTURE CAPTURE
ROLL
CAPTURE CAPTURE CAPTURE
ROLL
CAPTURE CAPTURE CAPTURE
Roll Left Complete
NOTE: Optimal scanning
requires stopping at +/-
45 degrees from flat.
ROLL
CAPTURE CAPTURE CAPTURE
ROLL
CAPTURE CAPTURE CAPTURE
ROLL
CAPTURE CAPTURE CAPTURE
ROLL
CAPTURE CAPTURE CAPTURE
ROLL
CAPTURE CAPTURE CAPTURE

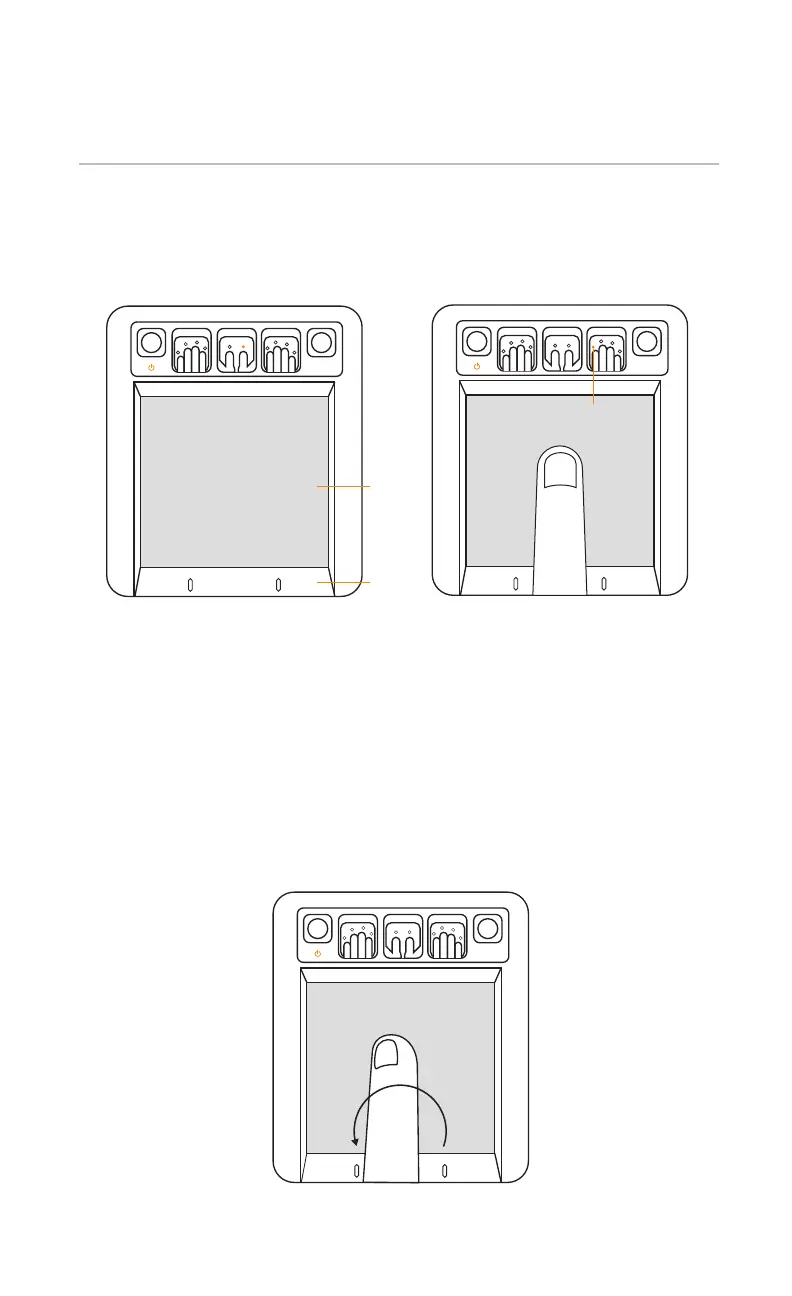

Finger PlacementReady to Scan - First Finger
Individual
LEDs
Bezel
Platen
