IBC EX 700

3.10.5 Thermostat heat anticipator
IBC “Therm” contacts draw no power, so an anticipator setting for the thermostat is not
applicable with the EX modulating series boilers. For a heat load where zone valves are used
to manage thermostatically controlled zones, each room's thermostat heat anticipator should
be adjusted to the current draw of its associated zone valve.

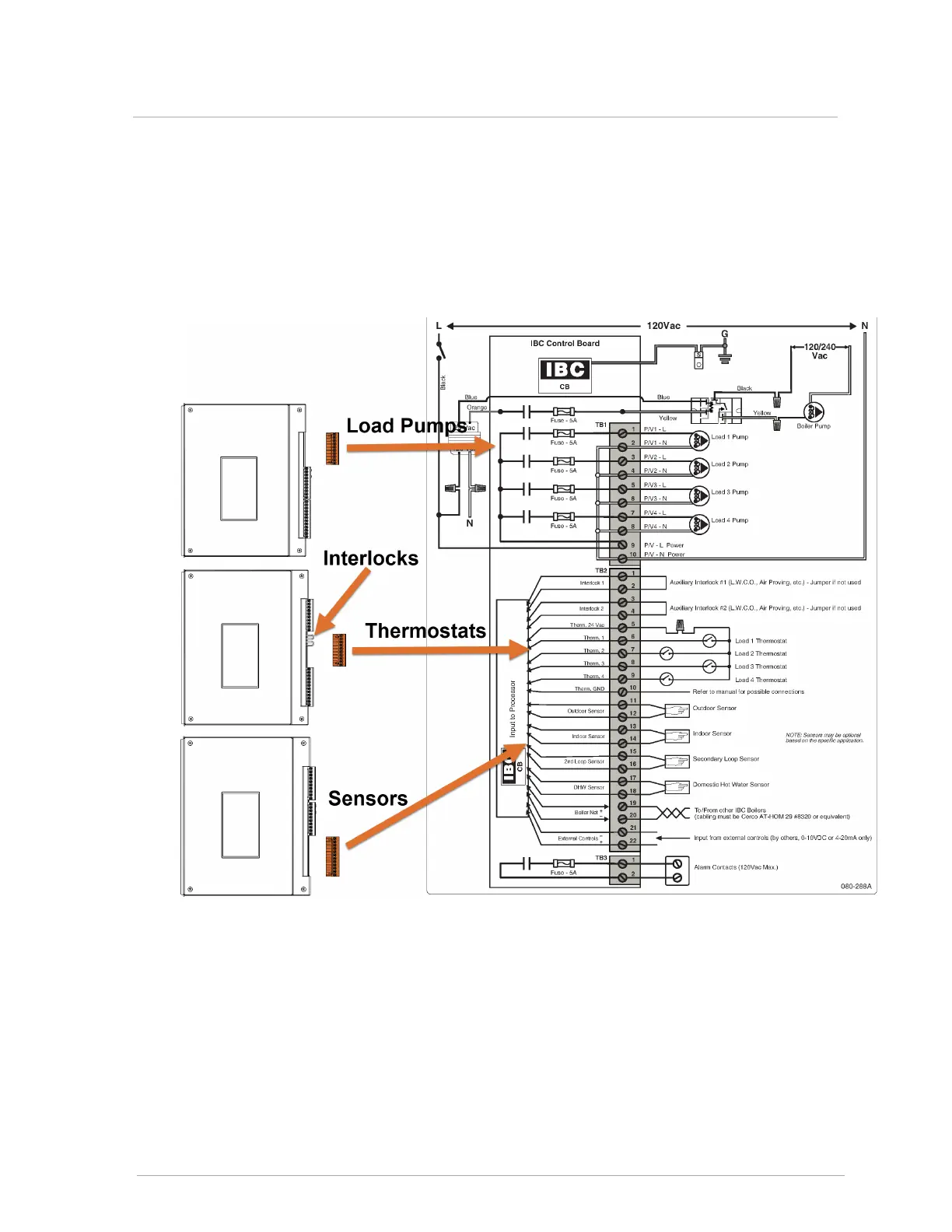

Figure 41 Electrical wiring connections
59
3.10.5 Thermostat heat anticipator
