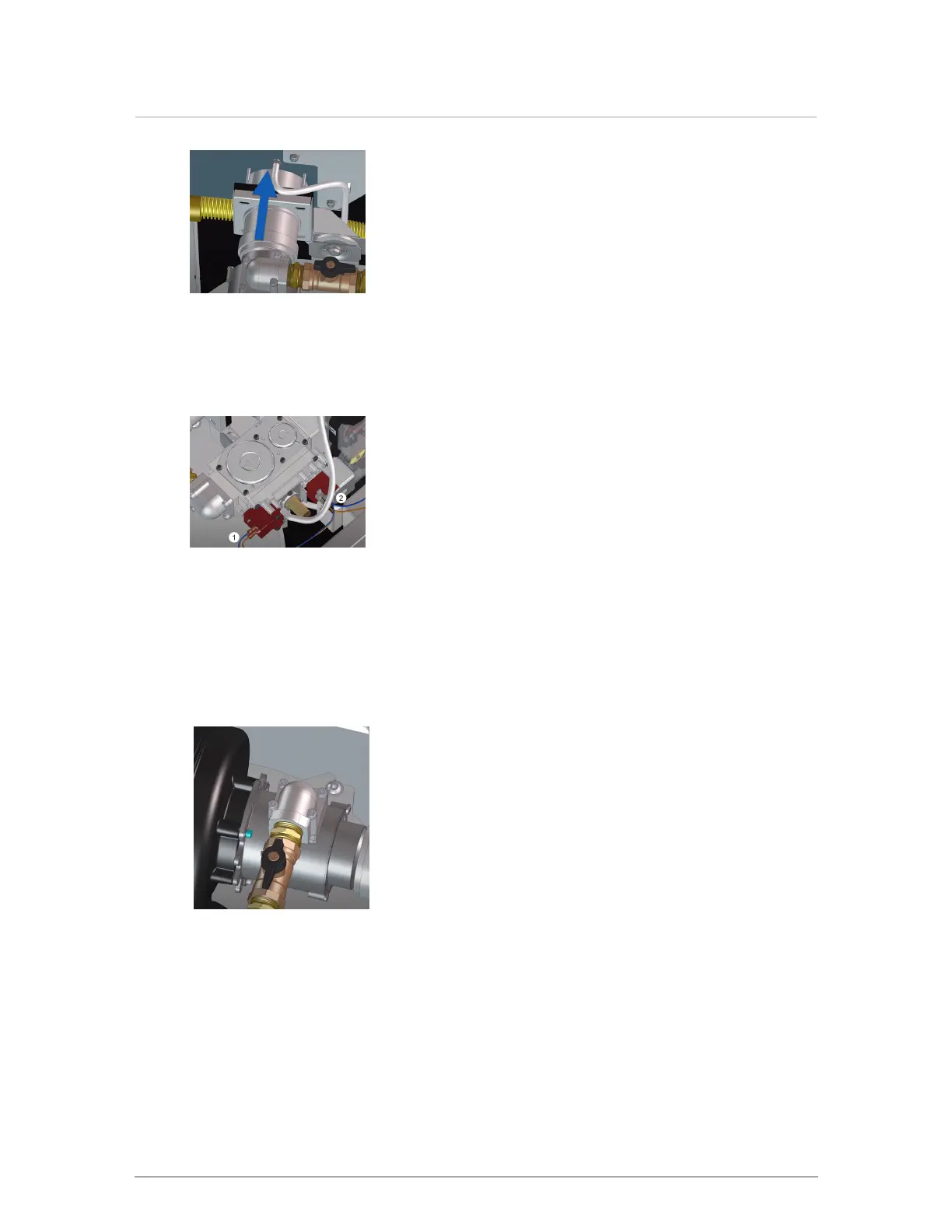

Figure 61 Removal of clamp and gasket assembly
7.
Remove the silicone tube.
:
Figure 62 Removal of silicone tube
8.
Disconnect the electrical connectors (see j and k on above image).
9. Remove the four (4) bolts from the right side of the gas valve.
10.
Remove the four (4) bolts that attach the mixing device to the fan.
Figure 63 Removing bolts securing mixer to fan
11.
Remove the mixer assembly, gas line and gas valve by pulling straight up.
Section: Service and maintenance
