The condensate trap must be installed on the drain connection at the base of the boiler. The condensate
drain must be piped to within 1" of a drain or connected to a condensate pump. The drainage line must
slope down to the drain at a pitch of ¼" per foot so condensate runs towards the drain.

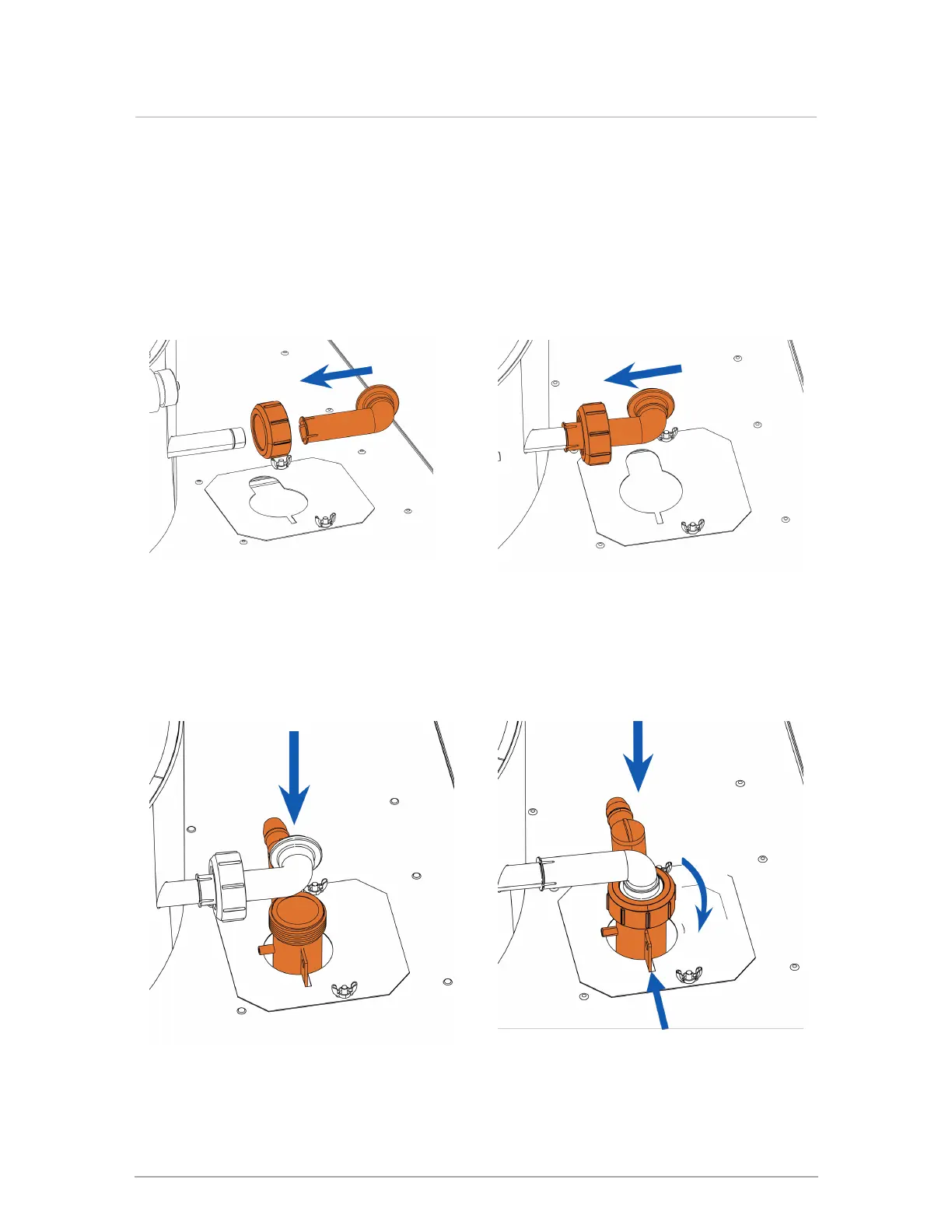

1.
Slide the union nut onto the elbow. The union
nut must include an embedded O-ring. Ensure
that the O-ring seal is in place on the heat
exchanger's stainless steel outlet tube.
2.
Attach the elbow and union nut firmly
to the boiler's outlet tube, making
sure that you rotate the elbow
sideways.
3.
Fill the condensate trap with water and insert
the trap into the hole of the metal plate.
4.
Rotate the elbow, and tighten the union
nut, so that the elbow and condensate
trap are secured. Ensure the union nut
O-ring is included. Check for leaks.
