DHW indirect tank
Air handler
Low temperature radiant protected by a mixing valve for simultaneous heating during higher
temperature air handler operation. Boiler can return to lower supply temperature when radiant
alone is operating.

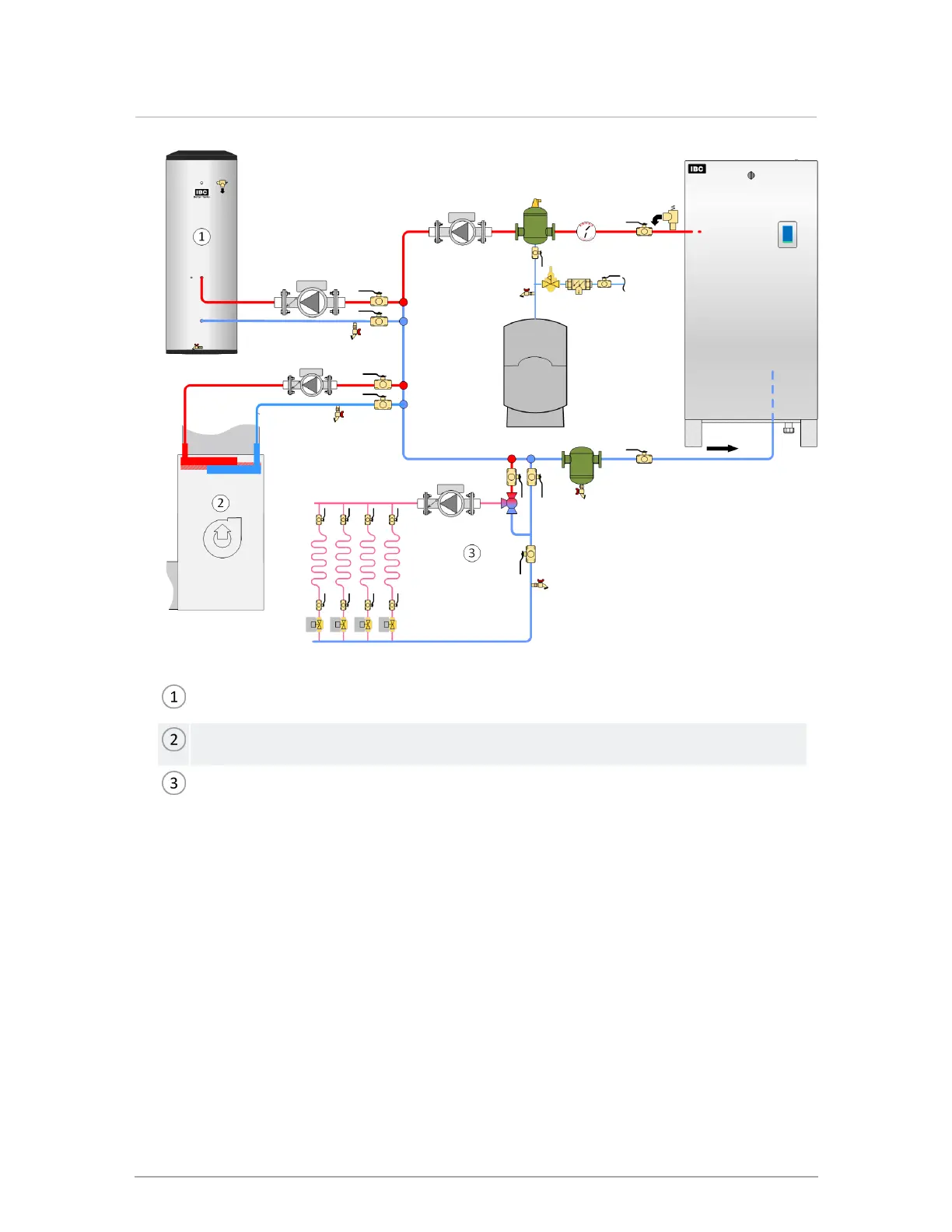

Figure 28 Primary/Secondary piping concept with simultaneous heating calls
