IBC TopFix 200 User Manual

22
Version 17.01, as of: 27-Jun-2017
4.3.8 “Alu-Vario S+” roof hooks
4-way adjustable aluminum roof hooks
parameters
value
Material
hook: Alumnium EN AC-42100 (DIN EN 1706)
base plate: Alumnium EN AC-43000 (DIN EN 1706)
yield strength
hook: f
y,k
= 210 N/mm²
base plate: 220 N/mm²
Dimensions base plate (length /
width / height)
100/ 70/ (9) mm
Dimensions hook (width / height)
35/ 6-8 mm
Drilling holes baseplate
∅ 7 mm
Drilling holes hook
slot ∅ 9 mm, L=25 mm
Hook distance from the base plate
40,6 – 55,6 mm
Horizontal adjustment at the base
plate
70 mm stufenlos
weight
0,465 kg
General construction approval
Z-14.4.-515 (in preparation)
Maximum ch. load / roof hook [kN]
pressure F
R,k,-x
= 2,06
suction F
R,k,+x
= 2,15
shear F
R,k,y
= 1,96
Incl. coach bolt M10x40 A2/70 + locking nut
Accessories
Flat head screw 6x100-A2 TX25
connection piece for roof hook profile M8

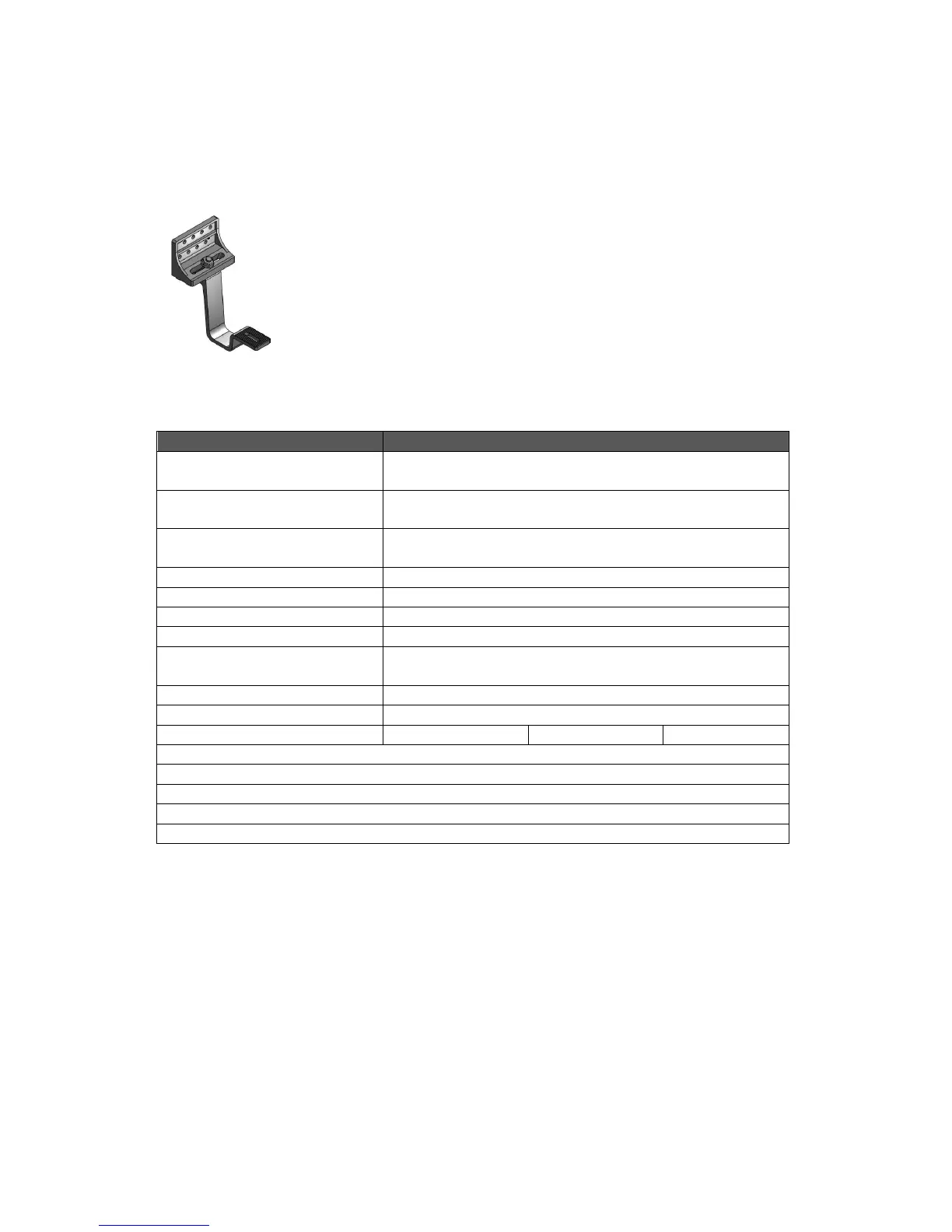

Figure 27: parameters roof hook “Alu-Vario S+”
Figure 26: “Alu-Vario S+“ roof hook
