Step 9: If required: Insert butt connector
Butt connectors are inserted via the TF27 carrier rail and fixed.

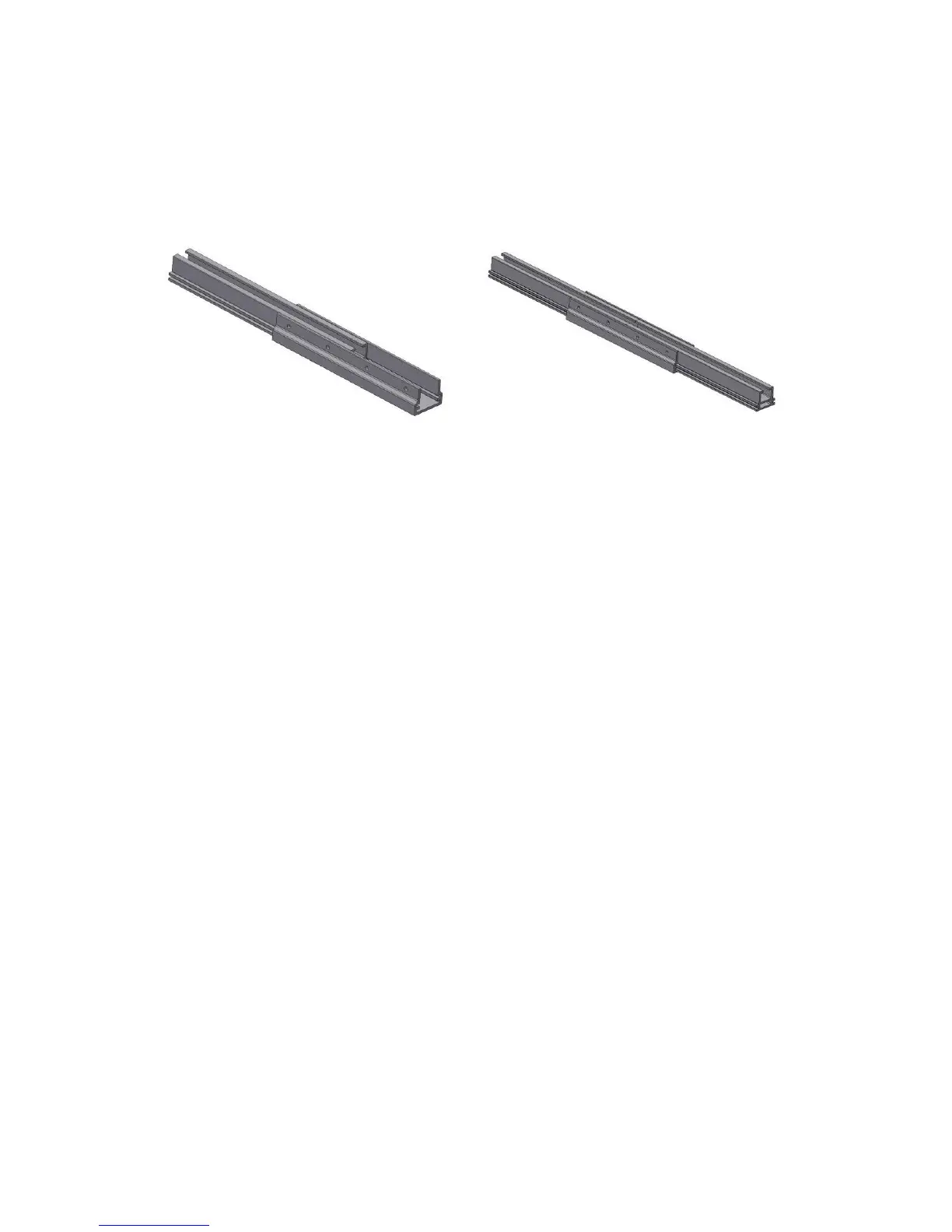

Figure 73: Insert butt connectors Figure 74: Joining together the carrier rails
The butt connector is either attached using two 4.8x15 mm blind rivets (pre-drilling) or two 5.5x25
mm self drilling screws.
