IBC TopFix 200 User Manual

43
Version 17.01, as of: 27-Jun-2017
 Now insert the 4.8x15mm blind rivets into the bores and rivet.

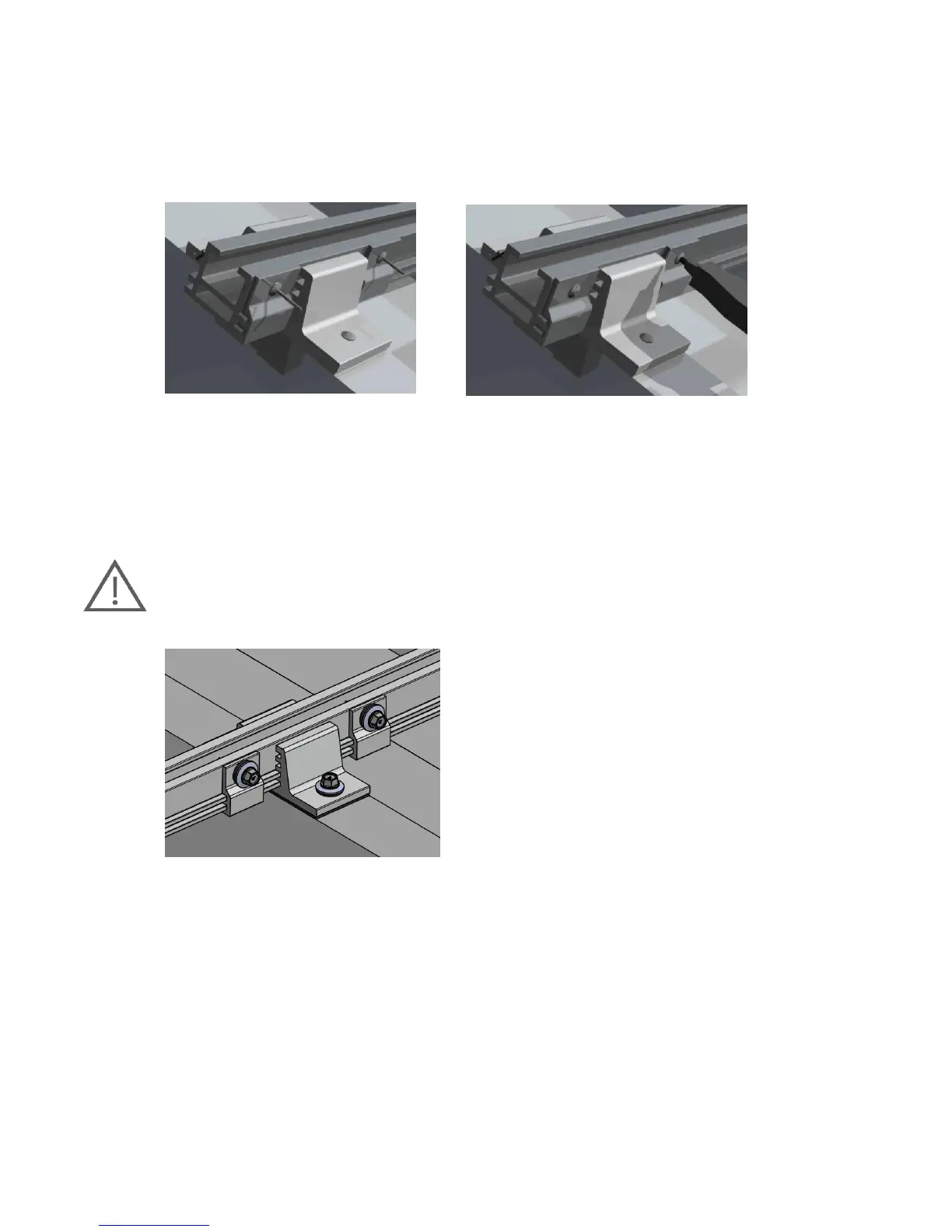

Figure 71: Rivet transverse securing clamps
Step 8B: Insert and affix the transverse securing clamp with self drilling screws
 The transverse securing clamps are affixed next to the trapezoidal clamp on the left and right with a
clearance of approximately 20 mm.
 There must be a minimum of two transverse securing clamp per string (15.60 m).
Important:
Mount additional transverse securing clamps on roofs that are particularly exposed to wind.
Figure 72 Screwed transverse securing clamps
