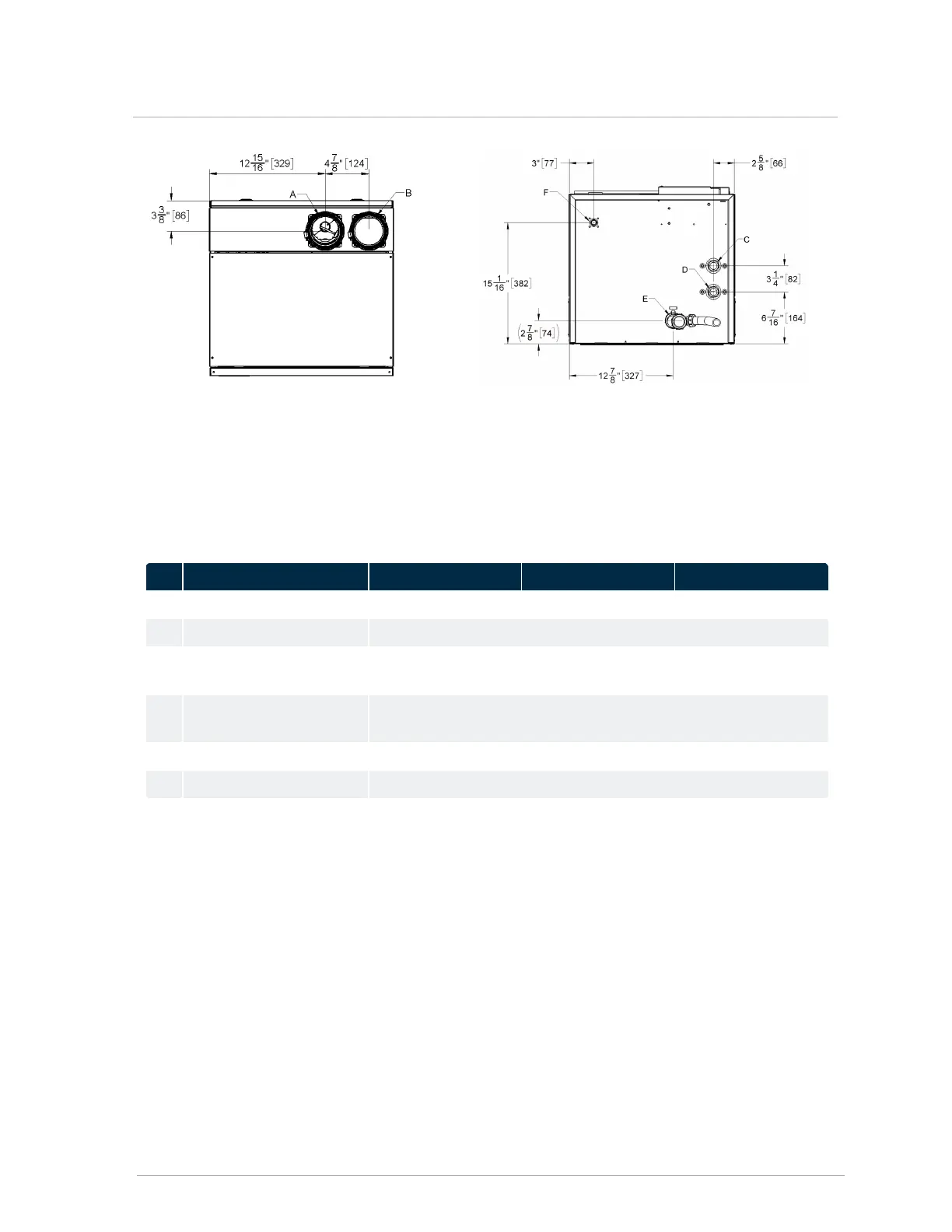

Figure 11 Top view - VX 199 Figure 12 Bottom view - VX 199
Connection specifications
The following table displays the required connection specifications.
Description
VX 110 VX 150 VX 199
A Flue Outlet 3" Schedule 40 or 3" PPs (80 mm)
B Combustion Air Inlet 3" Schedule 40 or 3" PPs (80 mm)
C Return water outlet (tepid
water)
1" NPT-M
D Supply Water Inlet (hot
water)
1" NPT-M
E Condensate Outlet ¾" Hose
F Gas Inlet ½" NPT-F
Table 1 Connections
9
Connection specifications

IBC VX 110 Specifications

General

Brand	IBC
Model	VX 110
Category	Boiler
Language	English
