Noto: Keytops and faces shown in bold outline are active; oil others are ignored.

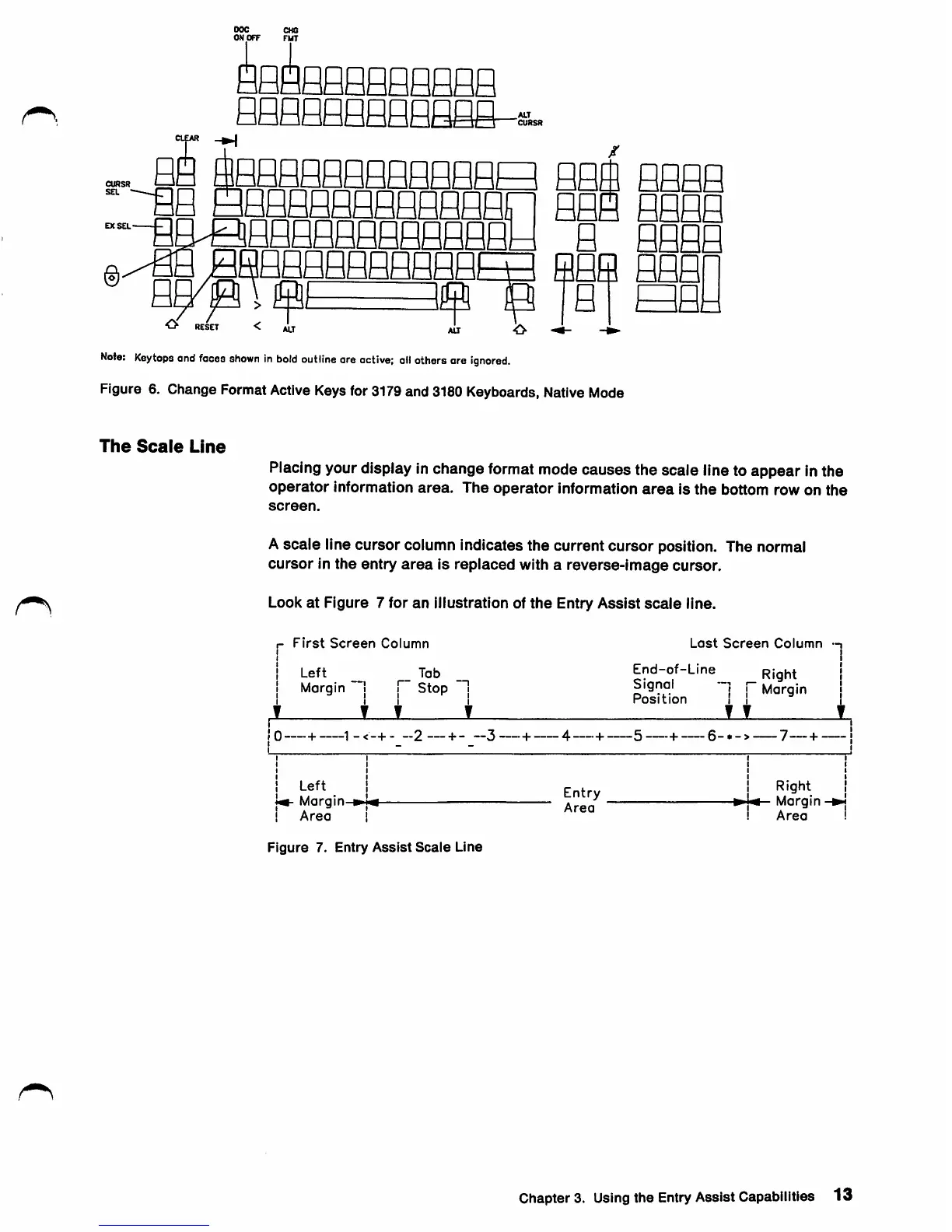

Figure 6. Change Format Active Keysfor 3179and 3180 Keyboards, Native Mode
The Scale Line
Placing your display in change format mode causes the scaie line to appear in the
operator information area. The operator information area is the bottom row on the
screen.
A scale line cursor column Indicates the current cursor position. The normai
cursor in the entry area is replaced with a reverse-image cursor.
Look at Figure 7 for an iiiustration of the Entry Assist scaie line.
First Screen Column
Left
Margin
_ Tab
r stop
1 L
Lost Screen Column i
End-of-Line
Signal —>, p
Position I I
UL
Right
Margin
•+ 1 -<-+—2 —+ 3—+ 4—+ 5—+ 6-«'-> 7—+ i
Left i
W Margin-»^
Area |
Figure 7. Entry Assist Scale Line
Entry
Area
Right
Margin
Area !
Chapter 3. Using the Entry Assist Capabilities 13
