Procedure
1. If the security kit is installed, slide the security bar to the unlocked position.
Note: If your rack uses a ruggedized kit, you must remove the securing screw to allow each side panel
to be removed. See “Releasing the side panel with a ruggedized kit” on page 88.
2. Unlock the side panels by pulling down on both locking latches to release the latches.

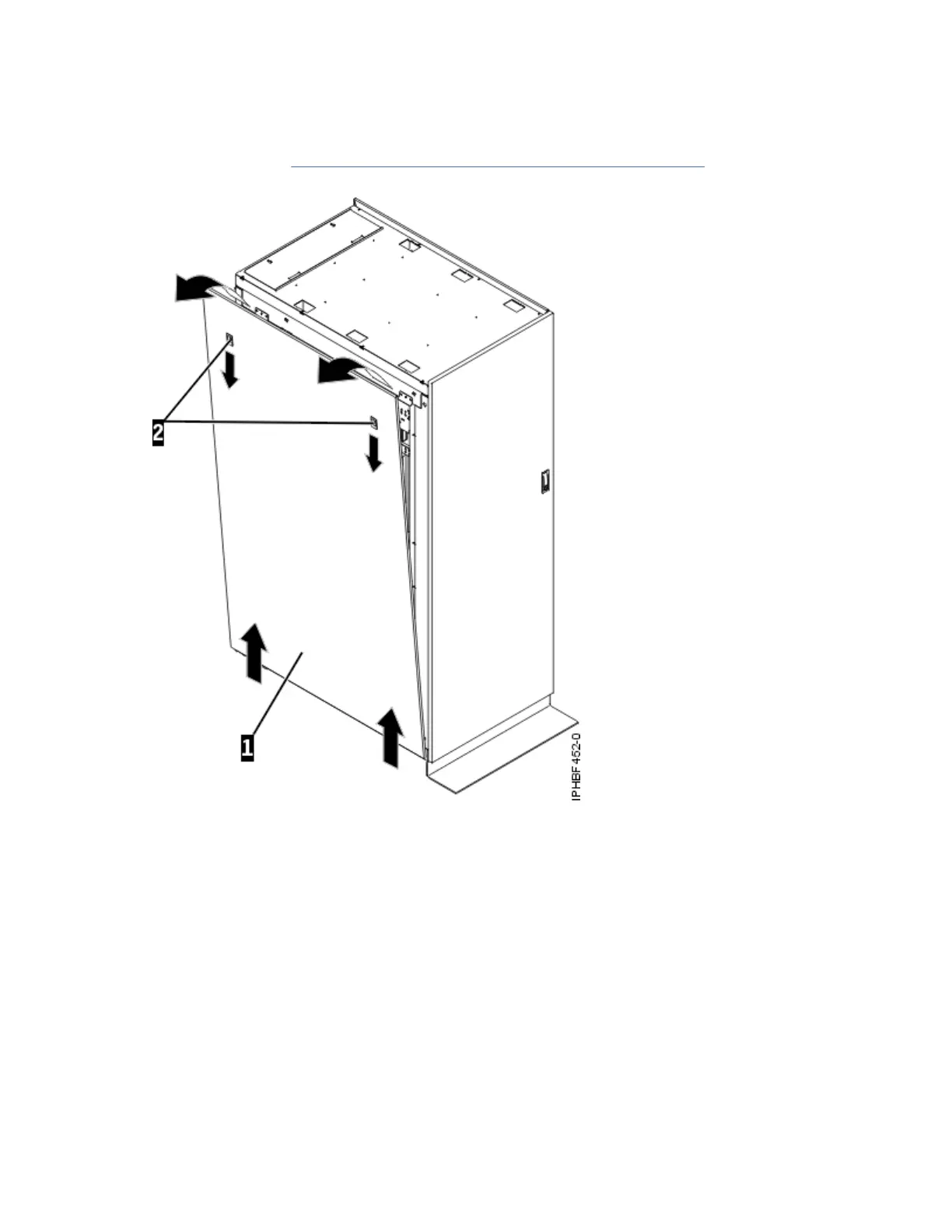

Figure 61. Removing the side panel
3. Tilt the top of the side panel slightly toward you.
4. Pull the panel up and away from the rack chassis. This motion will release the panel from the two
lower J brackets.
5. Repeat this procedure for the other side panel.
Replacing a 7014-T00 or 7014-T42 side panel
Use the procedure in this section to replace a side panel on a rack.
About this task
To replace a side panel, complete the following steps:
Procedure
1. Tilt the top of the side panel slightly toward you.
2. Place the bottom of the side panel onto the J brackets on the bottom of the rack.
90
