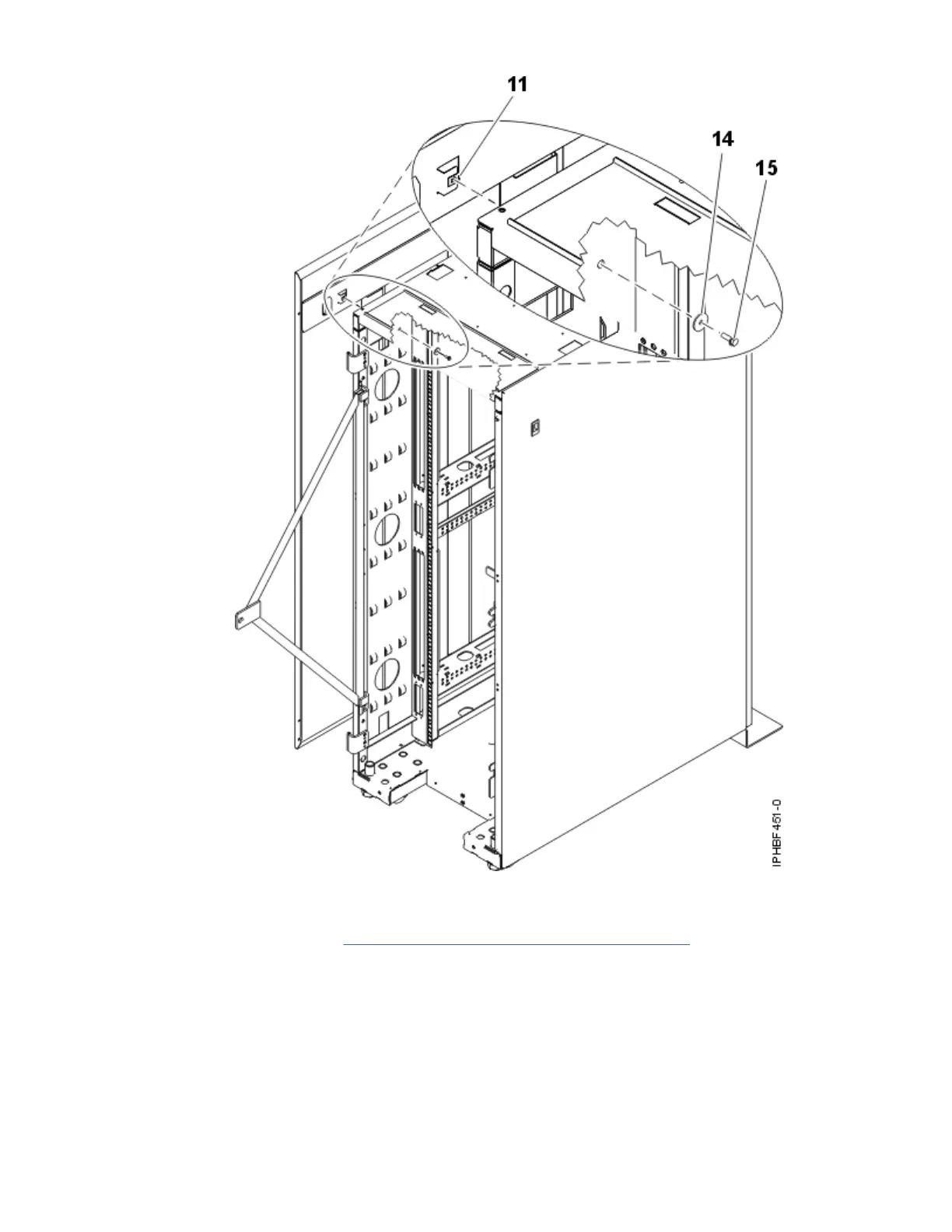

Figure 60. Removing the securing screws on the side panel
3. Using a socket or nut driver, remove the securing screw (15) and washer (14) from the side panel. To
remove the side panel, see “Removing and replacing side panels” on page 89.
Removing and replacing side panels
Learn how to remove and replace a side panel on a rack. Use the procedures in this section to perform
this task.
Removing a 7014-T00 or 7014-T42 side panel
Use the procedure in this section to remove a side panel on a rack.
About this task
To remove a side panel, complete the following steps:
Racks and rack features
89
