Item Description
D Top cover
E Cable access cover
F Side cover (quantity 2)
G EIA label

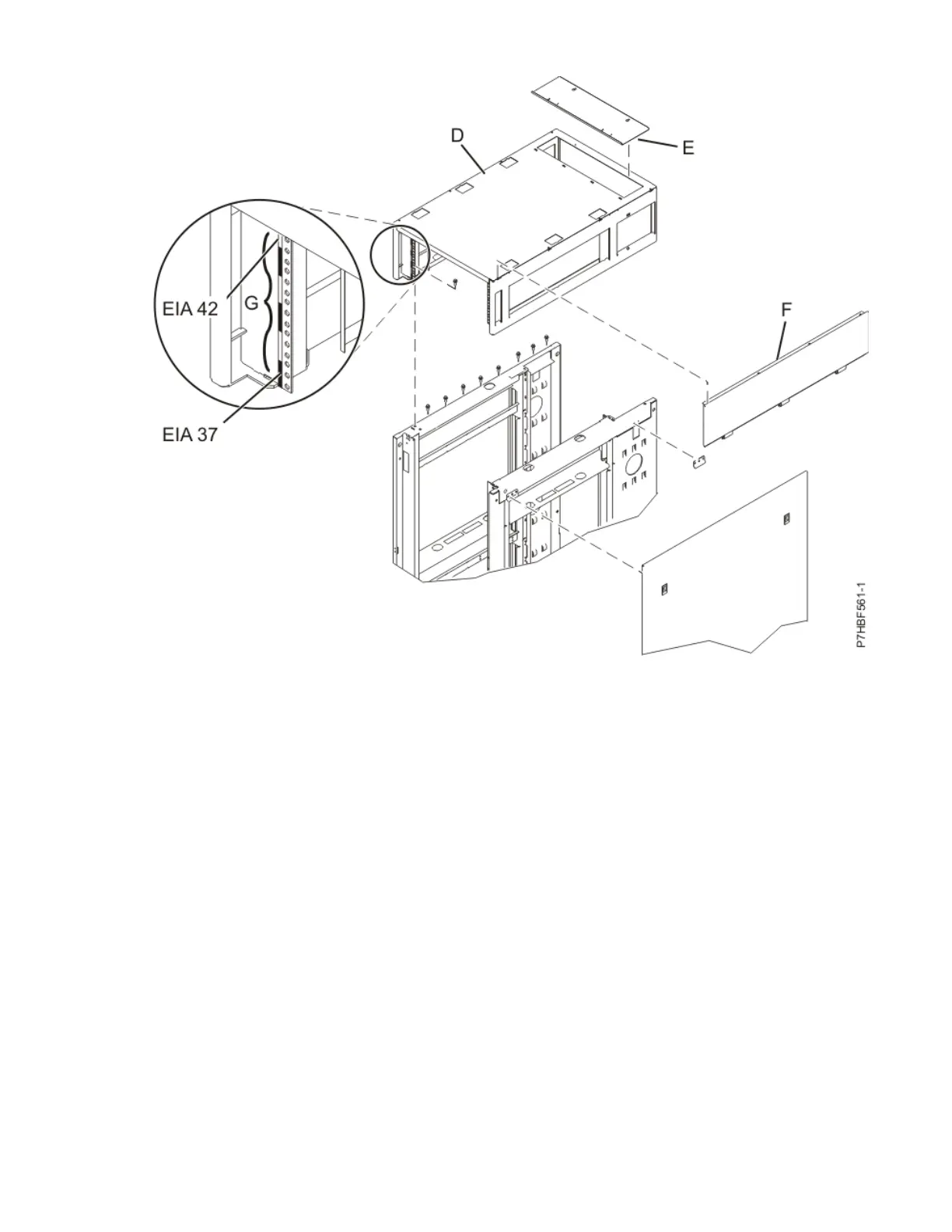

Figure 66. Removing the top cover
8. Lift off the top cover.
Replacing the rack top cover
You might need to replace the rack top cover. Use this procedure to perform this task.
About this task
Note: A 10 mm 6 point (pt) box socket with an extension bar is required to replace the screws into the
rack top cover. Other tools might cause the screw heads to become rounded and unable to be removed
again.
To replace the rack top cover onto the rack, complete the following steps:
Procedure
1. Position the rack top cover (D) on the rack.
Racks and rack features
95
