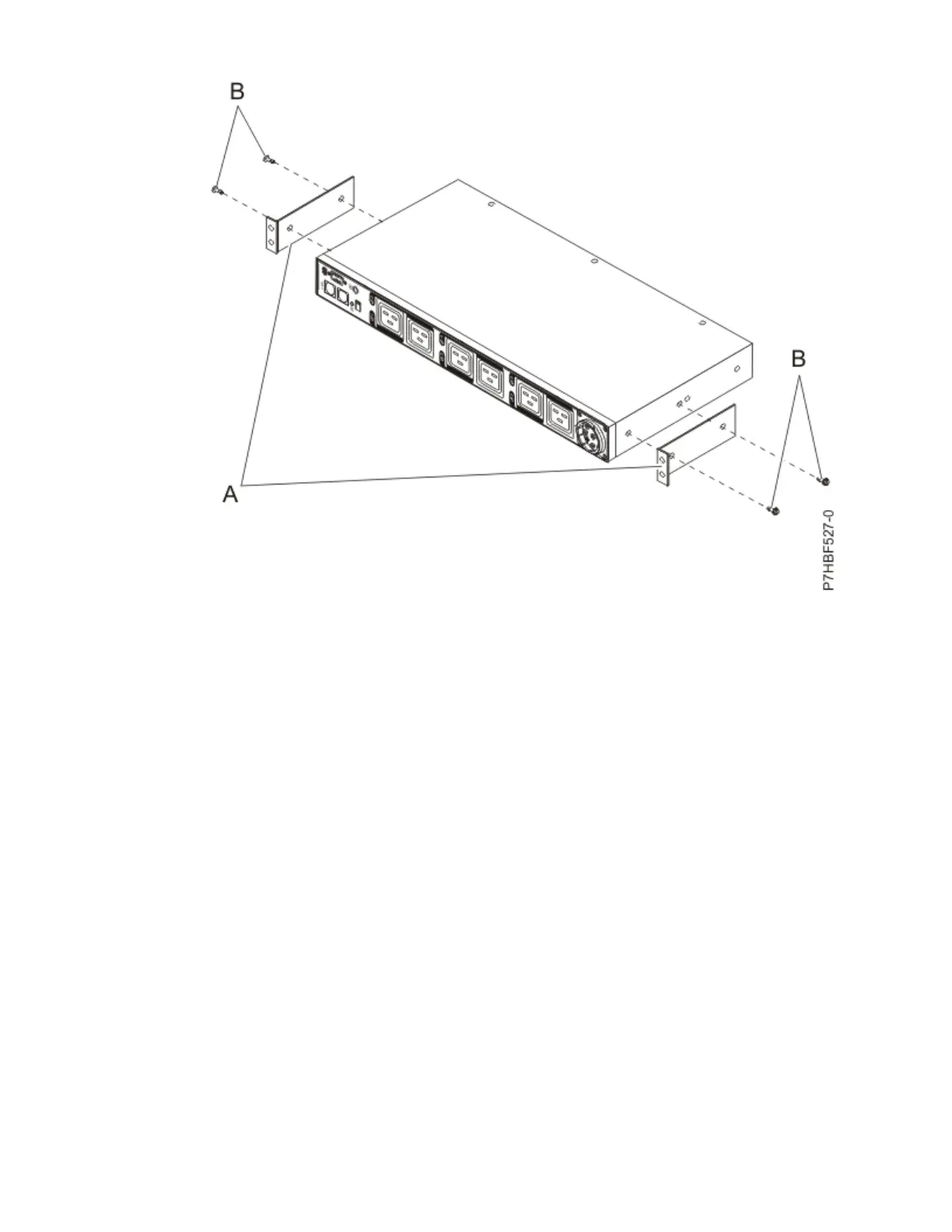

Figure 37. Aligning the vertical-mounting brackets to the front of the PDU+
4. Attach the brackets (A) to the PDU+ with two M3x5 screws (B) per bracket. Use screws that were
provided with the rack mounting kit.
5. Attach nut clips (A) to the four locations on the rack mounting flanges where you want to attach the
PDU model.
Use nut clips that were provided with the rack mounting kit. See the following gure.
54
Power Systems: Racks and rack features
