Figure 38. Attaching nut clips to the rack mounting flanges from the rear of the rack
6. Align the PDU model with the opening in the side of the rack.
Then, while you hold the PDU model in place, attach the brackets to the nut clips in the rack

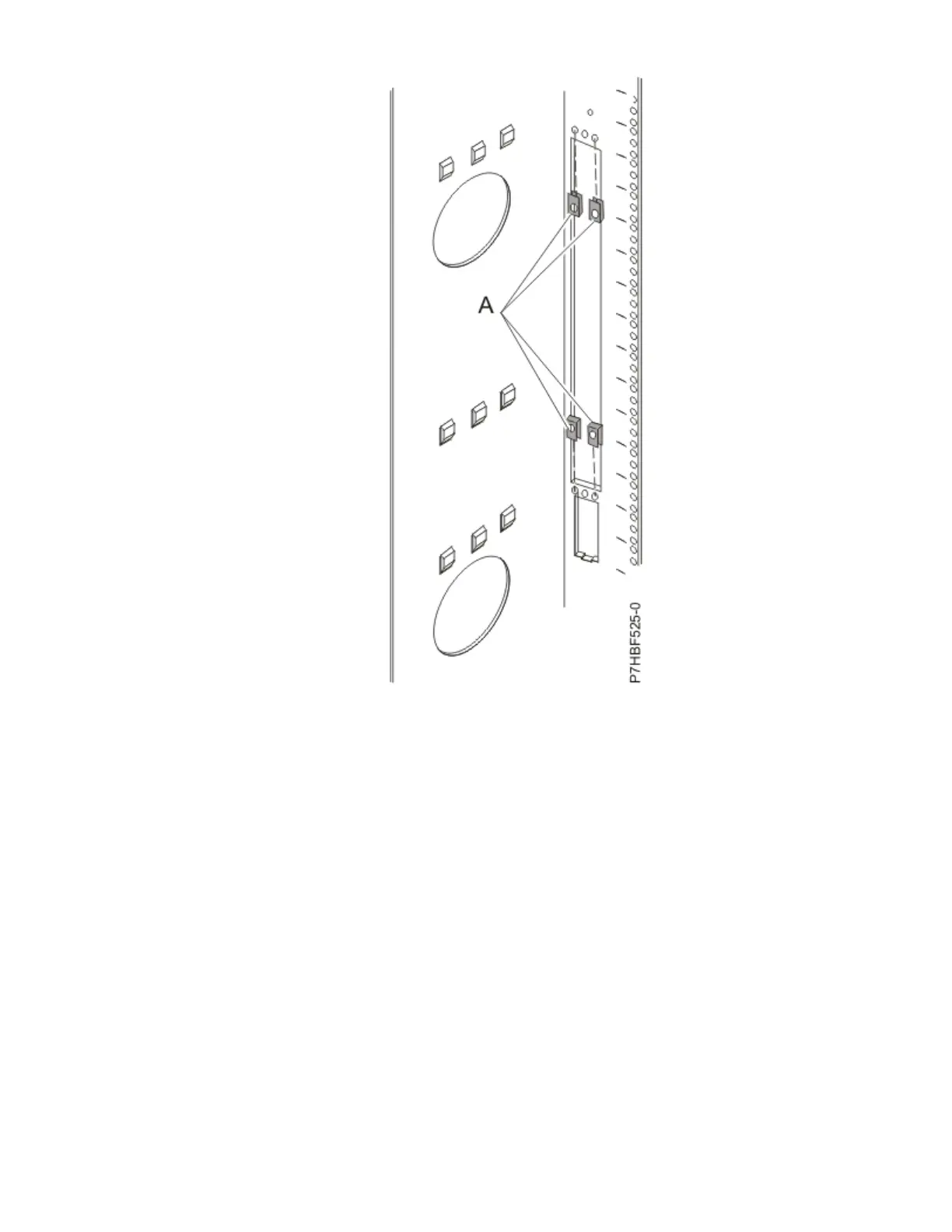

mounting flanges with four M5 screws (A) as shown in the following gure. Use screws that were
provided with the rack mounting kit.
Racks and rack features
55
