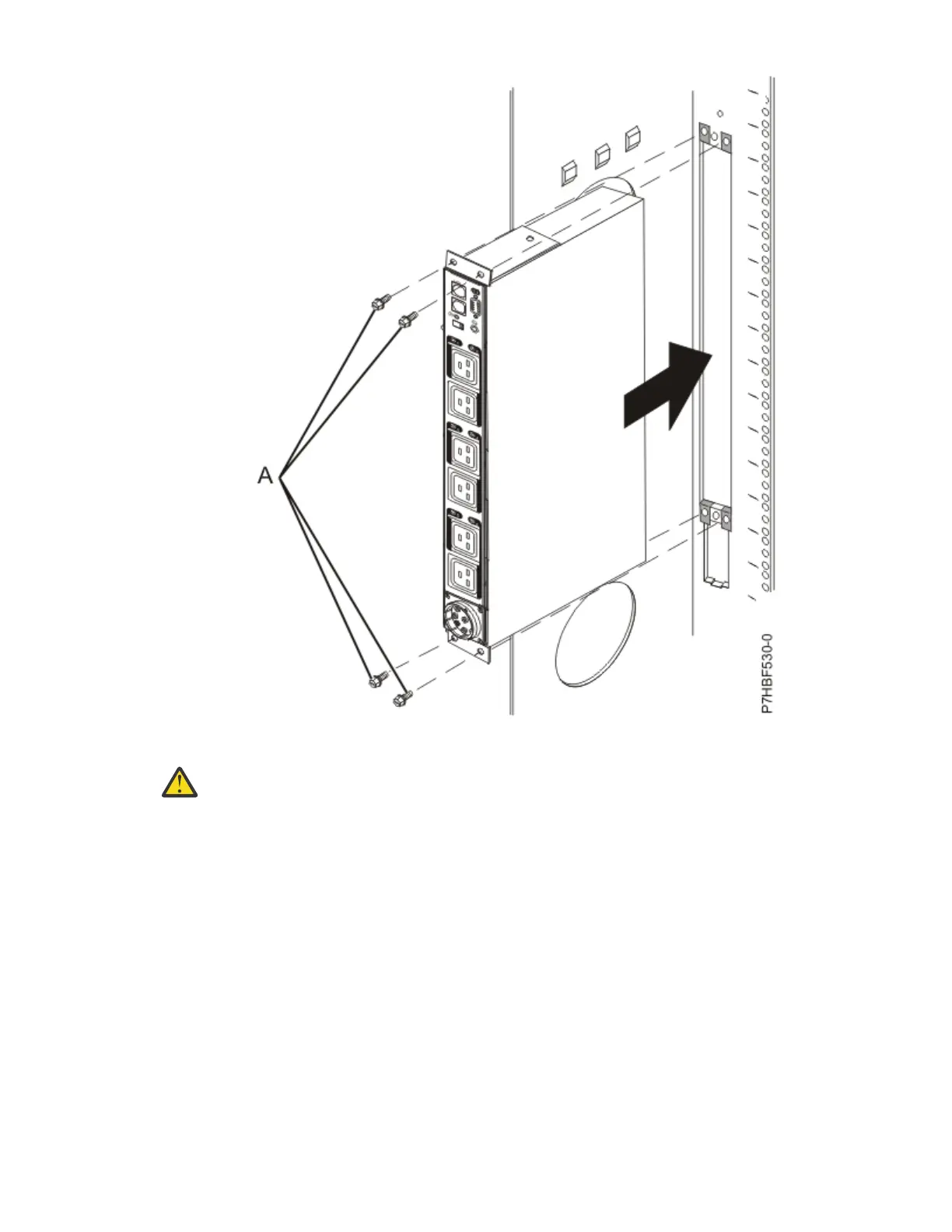

Figure 39. Aligning the PDU+ with the opening in the side of the rack, seen from the rear of the rack
Attention:
You must ensure that the main input power is disconnected from the power source
before you connect or disconnect the input power cord from the PDU model.
7. If it was included in your order, connect the PDU Access Cord 0.38m to the PDU before you install it
into the side of the rack.
8. If the PDU model was provided with a detached power cord, connect the power cord now.
Align the connector on the power cord (A) that was provided with the PDU model with the connector
on the front of the unit (A), turning as necessary for key alignment. Then, turn the connector twist-
lock (B) clockwise until it locks into place.
56
Power Systems: Racks and rack features
