Attention: Before you connect or disconnect the input power cord from the PDU, PDU+,
Intelligent Switched PDU, or Intelligent Switched PDU+ model, you must disconnect the main
input power.

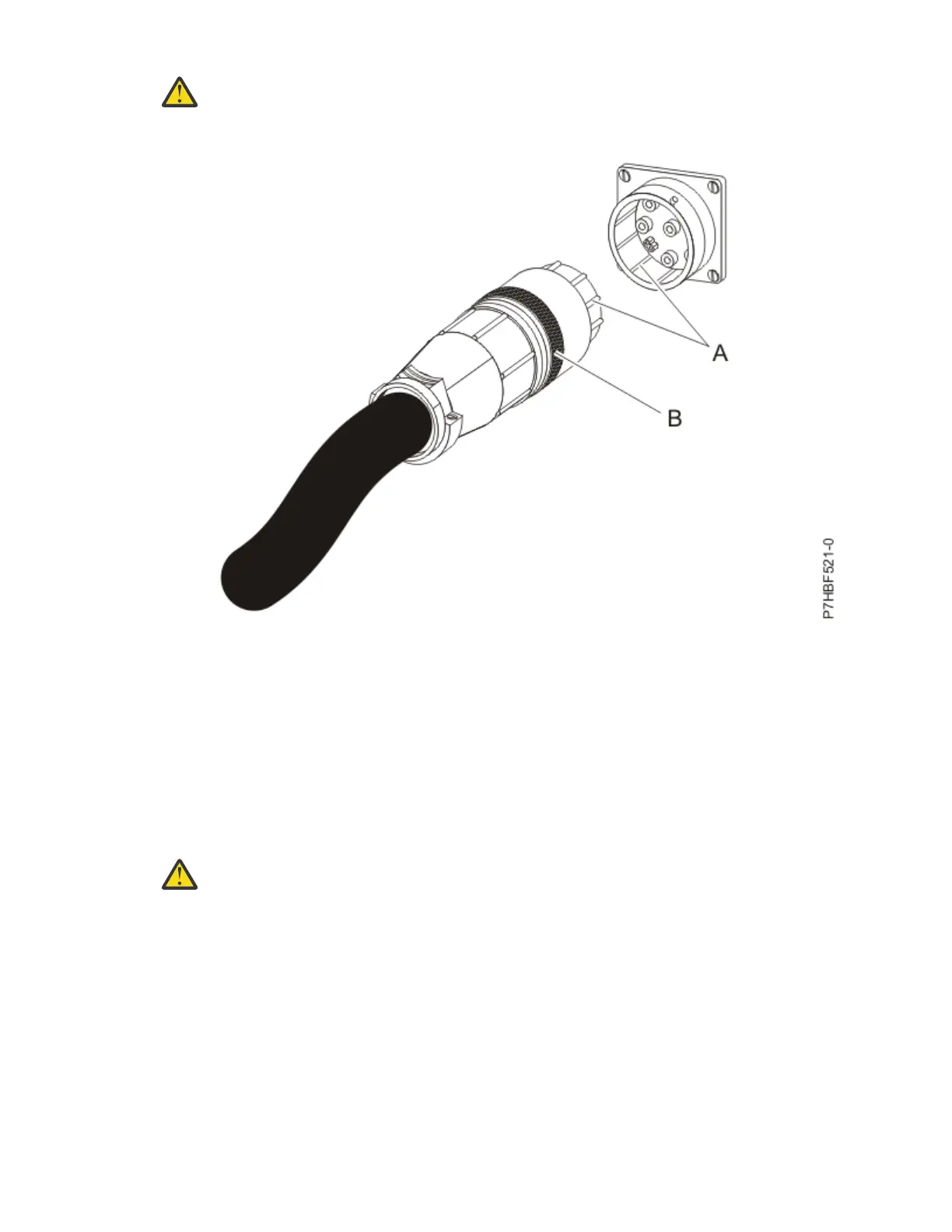

Figure 46. Aligning the connector on the power cord with thePDU, PDU+, Intelligent Switched PDU, or
Intelligent Switched PDU+ model
16. Route the power cord from the PDU, PDU+, Intelligent Switched PDU, or Intelligent Switched PDU+
model toward the rack side braces.
Route the power cord along a side brace toward the rear of the rack and secure the power cord with
the cable straps that are provided with the PDU, PDU+, Intelligent Switched PDU, or Intelligent
Switched PDU+.
17. Route the power cord toward a dedicated power source.
Use the provided cable straps to secure the power cord along the way. If the power cord must exit
the rack to connect to a power source, use the openings in the rack.
Attention:
To prevent damage to a power device and other connected devices, always
connect the power device to an authorized power source for that device.
18. Connect the power cord to a properly wired and grounded dedicated power source.
Then, you can connect the servers or rack PDU, PDU+, Intelligent Switched PDU, or Intelligent
Switched PDU+ in the rack to the power outlets on the PDU, PDU+, Intelligent Switched PDU, or
Intelligent Switched PDU+ model.
19. Route all of the other power cables neatly, and secure the power cables with cable straps.
20. If the side covers or doors were removed, reinstall them.
