15. Place a ground lug nut onto the ground lug and securely tighten it.

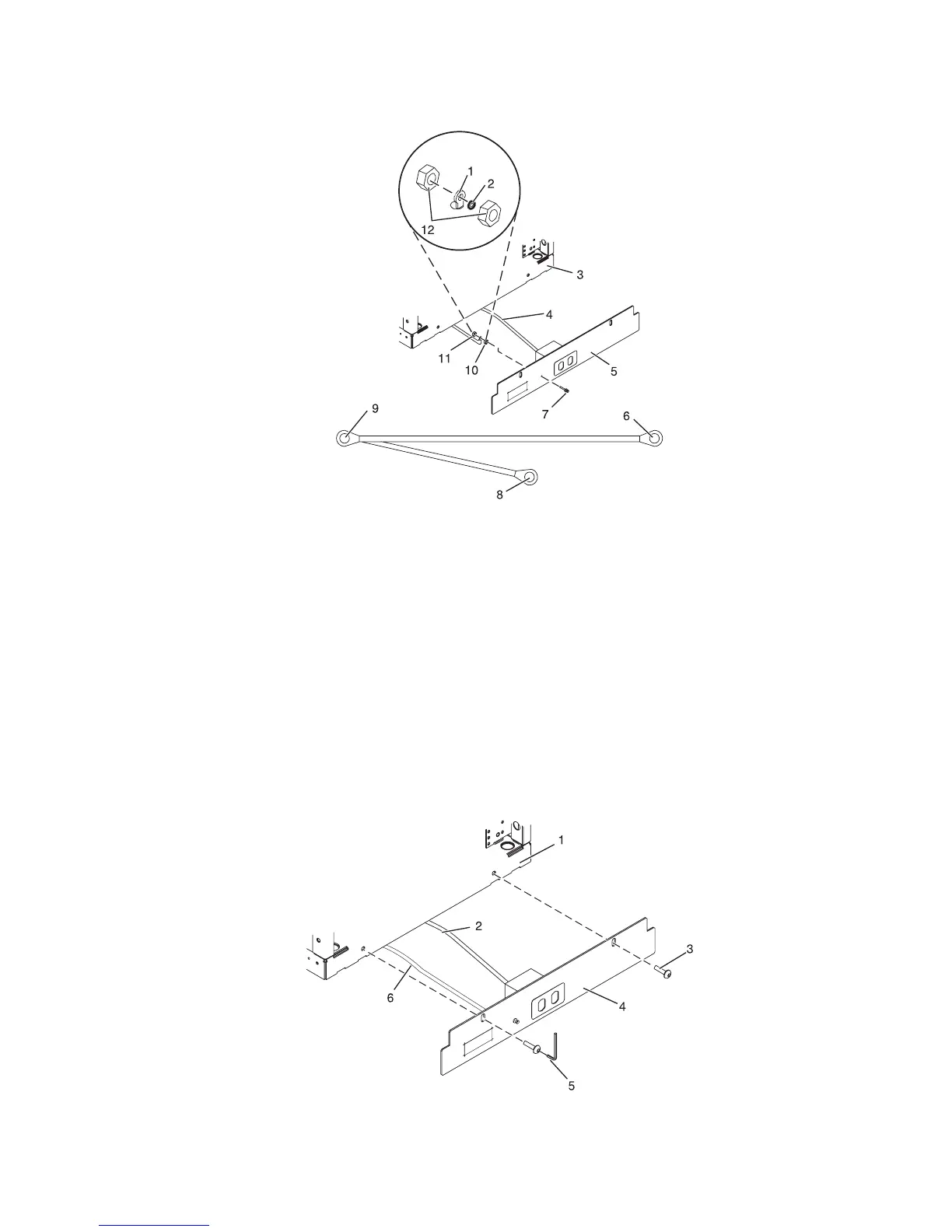

1 Ground cable lug 7 Ground lug
2 Star washer 8 Ground connector (short end of
ground cable)
3 Front of rack 9 "Y" end of ground cable
4 Power cable from the power source 10 Ground lug nut (quantity 2)
5 Mounting plate 11 Long end of ground cable
6 Long end of ground cable 12 Ground lug nut (quantity 2)
16. Position the rear ac outlet-mounting plate onto the rack frame with the ground lug fully inserted
through the mounting holes in the rack.
17. Install the front ac outlet-mounting plate screws (stabilizer mounting screws) into the mounting plate
and through the mounting holes in the rack. Securely tighten the screws.
1 Front or rear of rack (as applicable) 4 Mounting plate
Figure 11. Installing the ground lug
Racks and rack features 15
