2 Power cable from power source 5 Allen wrench
3 Button-head screw 6 Long end of ground cable
18. Connect the Y-shaped end of the ground cable to the rack frame, either near the center in the back of
the rack or to the ground bus bar at the rear of the rack.
19. Install the rear ac outlet-mounting plate screws (stabilizer mounting screws) into the mounting plate
and through the mounting holes in the rack. Securely tighten the screws.
Note: The bus bar might be located at either the top or bottom of the rack.

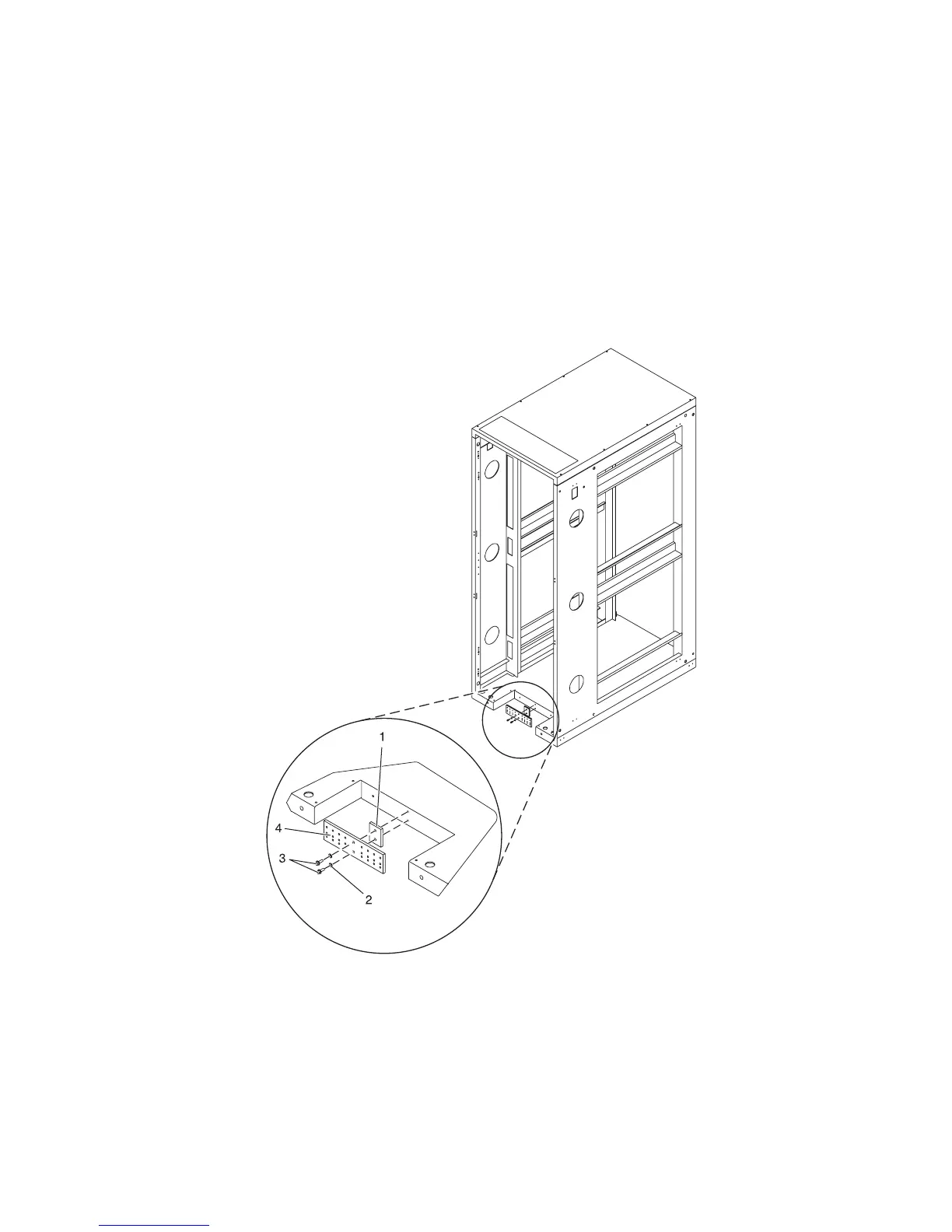

1 Bus bar mounting plate 3 Hex screws (M5 x 20) (quantity 2)
2 Lock washer (quantity 2) 4 Ground bus bar
Figure 12. Installing the front mounting plate
Figure 13. Installing the back mounting plate
16 Power Systems: Racks and rack features
