b. Open the microprocessor-tray levers (2).
c. Pull out the microprocessor tray (3) until it stops and then reposition your
hands to grasp the body of the tray.
d. Press in on the release latches on each side of the tray (4); then, pull the
tray out the rest of the way.

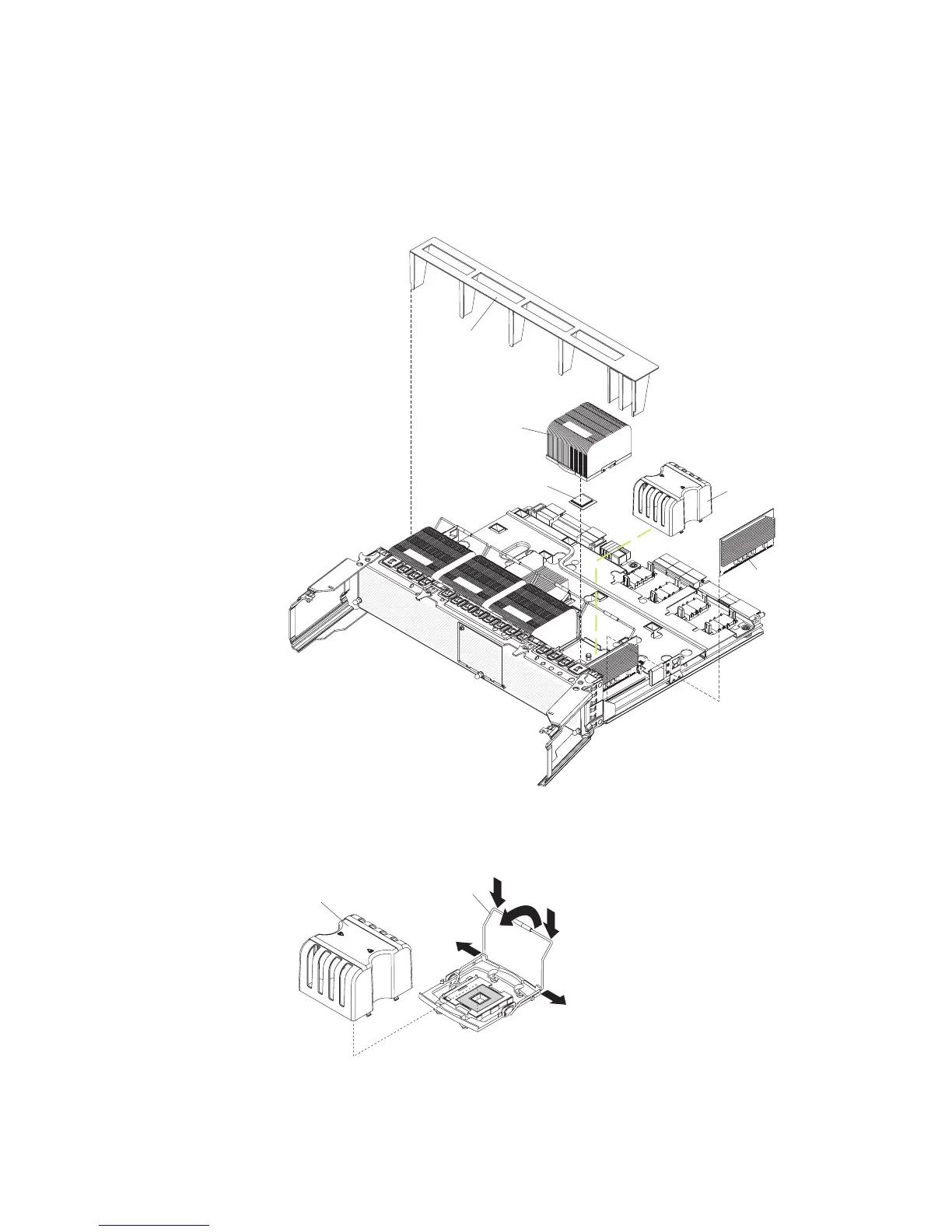

6. Lift the air baffle out of the microprocessor tray.
Heat sink
Microprocessor
Microprocessor
baffle
VRM 4
FRONT
Air baffle
FRONT
FRONT
FRONT
7. Remove the microprocessor baffle from a microprocessor socket and store it
for future use. If you remove a microprocessor you must install a
microprocessor baffle to prevent the server from over heating.
Microprocessor
baffle
Heat sink
retention clip
8. Open the heat sink retention clip.
a. Press down on one side of the heat sink retention clip to release it from the
side of the socket; then, repeat the process on the opposite side.
