IBM BladeCenter HX5 5
Locations of key components

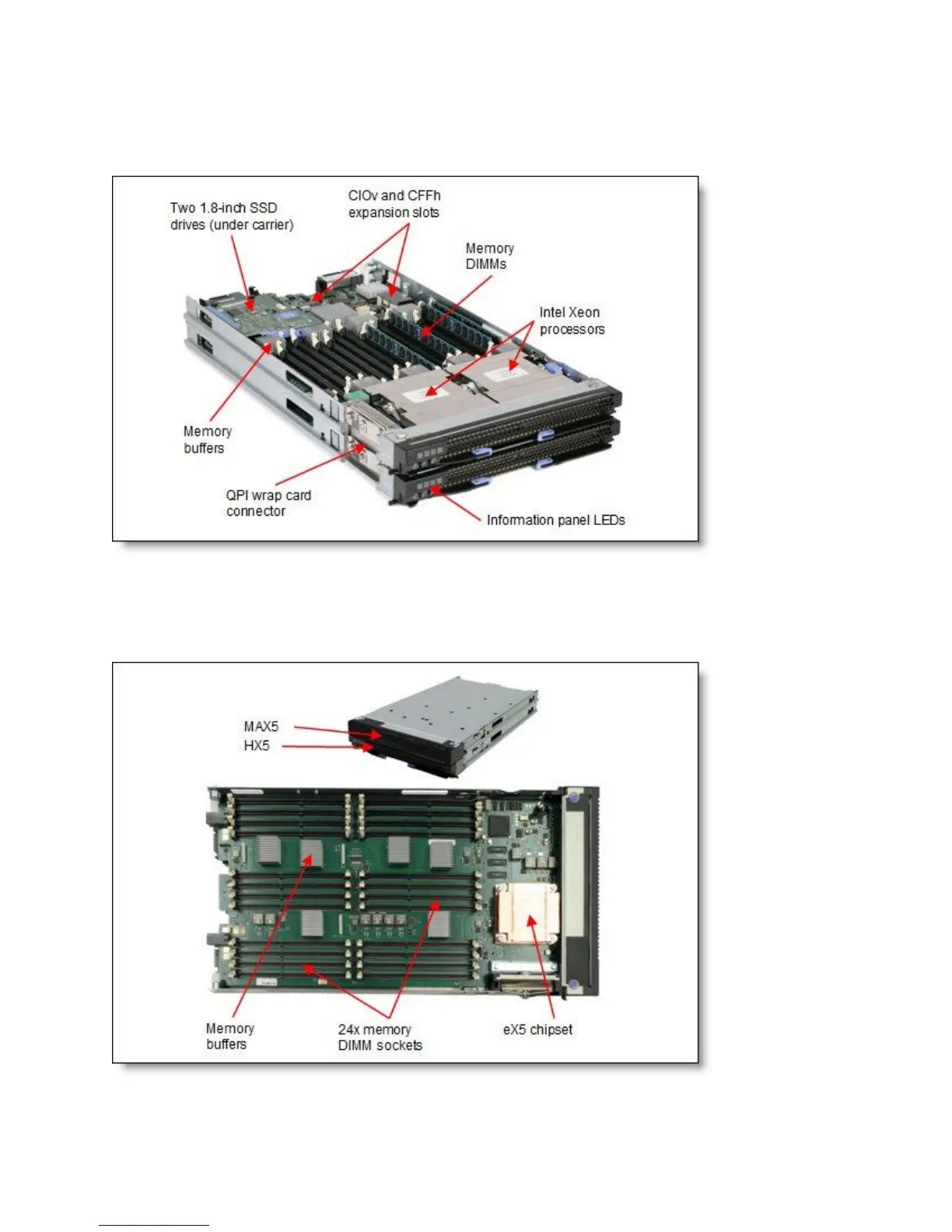

Figure 2 shows the inside of the server and indicates key components.
Figure 2. IBM BladeCenter HX5 (two nodes shown)
Figure 3 shows the internals of the MAX5 memory expansion blade. The MAX5 memory expansion blade
is a device with the same dimensions as the HX5. When attached it adds an additional 24 DIMM sockets
to the blade server.
Figure 3. MAX5 memory expansion blade
