Installing an advanced management module
To install an advanced management module, open the release handle on the
module and slide it into the advanced management module module bay.
About this task

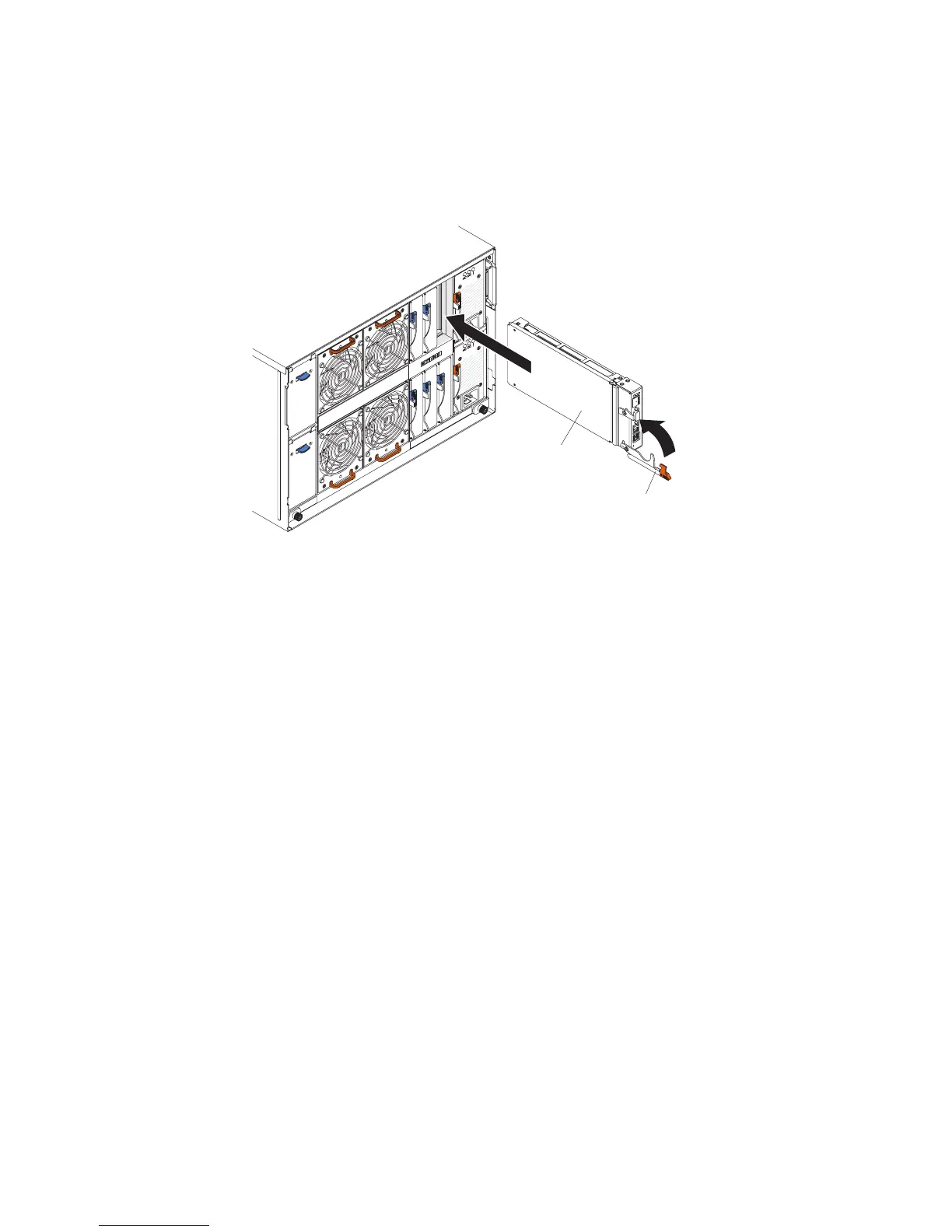

Advanced
management
module
Release handle
Procedure
1. Read Safety and “Handling static-sensitive devices” on page 26.
2. Open the release handle (rotate the handle down).
3. Slide the advanced management module into the advanced management
module bay until it stops.
4. Close the release handle (rotate the handle up).
Installing a power module
To install a power module, open the release handle, slide the power module into
the power module bay, and close the release handle.
About this task
Note: On the rear of the power module, there is a plastic strain-relief tie that
should not be removed.
