Locating the connectors on the rear of your computer

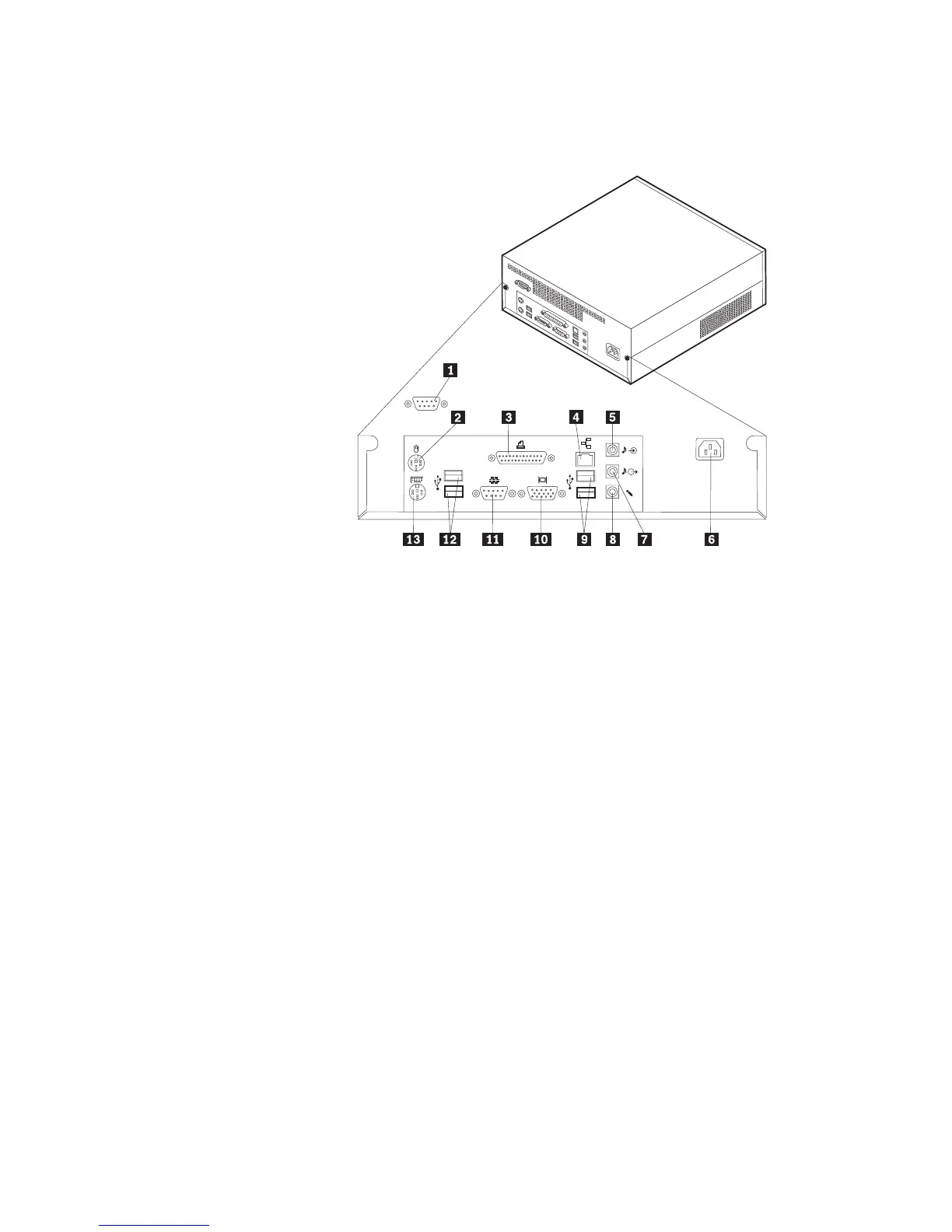

The following illustration shows the locations of the connectors on the rear of the
computer.
1Serial connector 8 Microphone connector
2Mouse connector 9 USB connectors
3Parallel connector 10VGA monitor connector
4Ethernet connector 11Serial connector
5Audio line in connector 12USB connectors
6Power connector 13Keyboard connector
7Audio line out connector
Note: Some connectors on the rear of the computer are color-coded to help you to
determine where to connect the cables on your computer.
Chapter 1. Types 8301 and 8302 7
