Locating the connectors on the rear of your computer

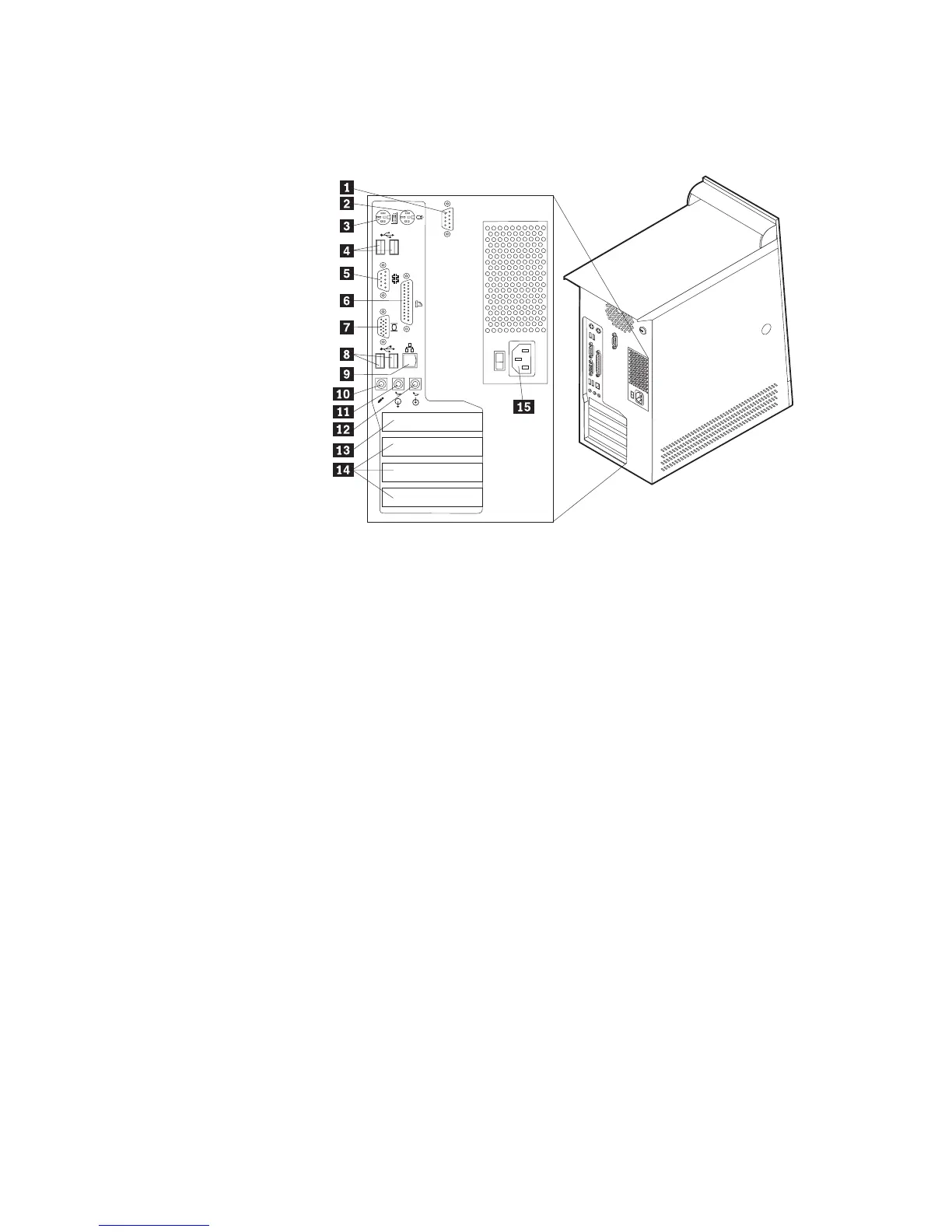

The following illustration shows the locations of the connectors on the back of the
computer.
1Serial connector 9 Ethernet connector
2Mouse connector 10Microphone connector
3Keyboard connector 11Audio line out connector
4USB connectors 12Audio line in connector
5Serial connector 13AGP slot (some models)
6Parallel connector 14PCI slots
7VGA monitor connector 15Power connector
8USB connectors
Note: Some connectors on the rear of the computer are color-coded to help you to
determine where to connect the cables on your computer.
Chapter 4. Types 8307, 8308, 8310, 8311, 8314, and 8315 59
