Locating the connectors on the rear of your computer

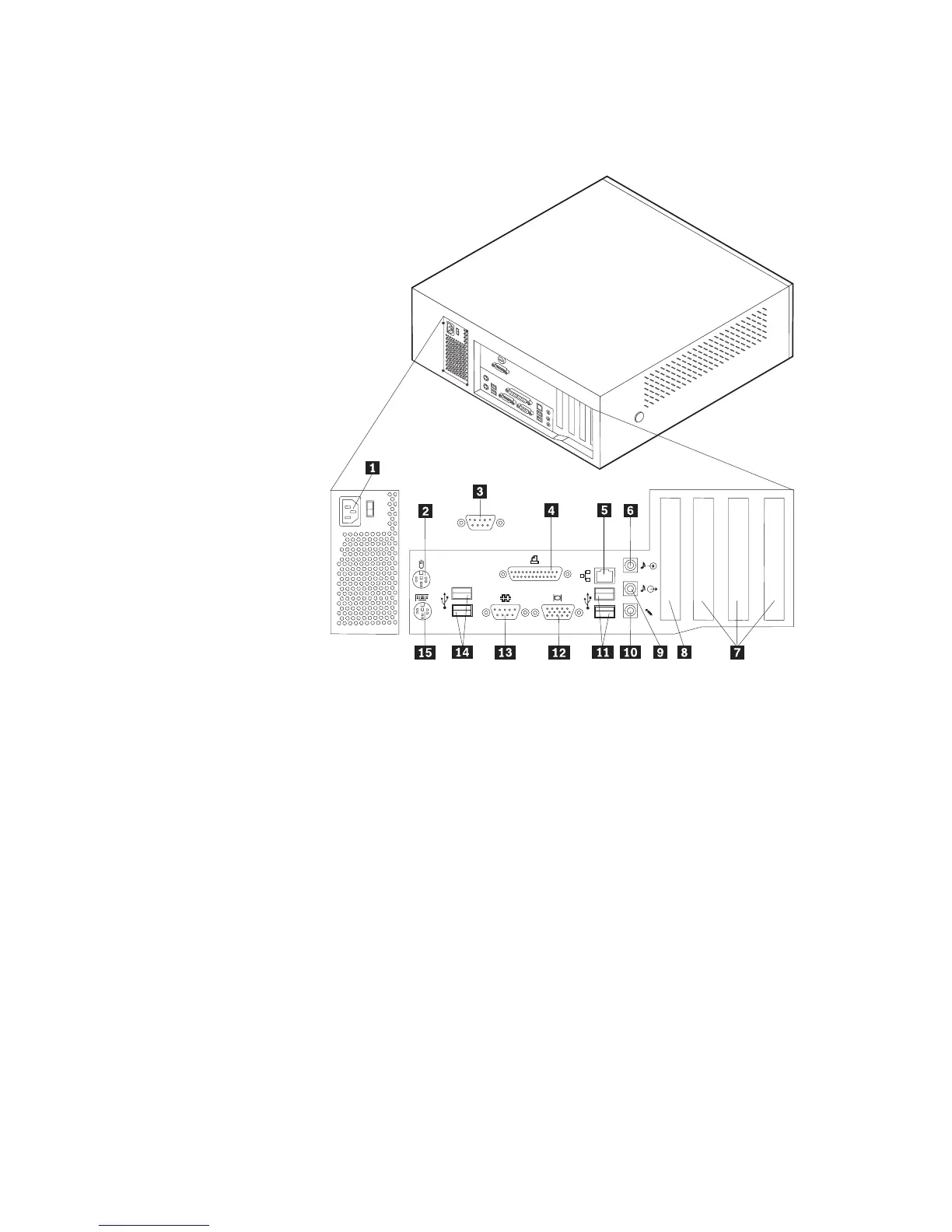

The following illustration shows the locations of the connectors on the rear of the
computer.
1Power connector 9 Audio line out connector
2Mouse connector 10Microphone connector
3Serial connector 11USB connectors
4Parallel connector 12VGA monitor connector
5Ethernet connector 13Serial connector
6Audio line in connector 14USB connectors
7PCI slots 15Keyboard connector
8AGP slot (some models)
Note: Some connectors on the rear of the computer are color-coded to help you to
determine where to connect the cables on your computer.
Chapter 3. Types 8305, 8306, 8309, and 8313 37
