When connecting one drawer to the server, the suggested approach is to have both FC EJ03
ports connected to the drawer for redundancy, as shown on Figure 2-32.

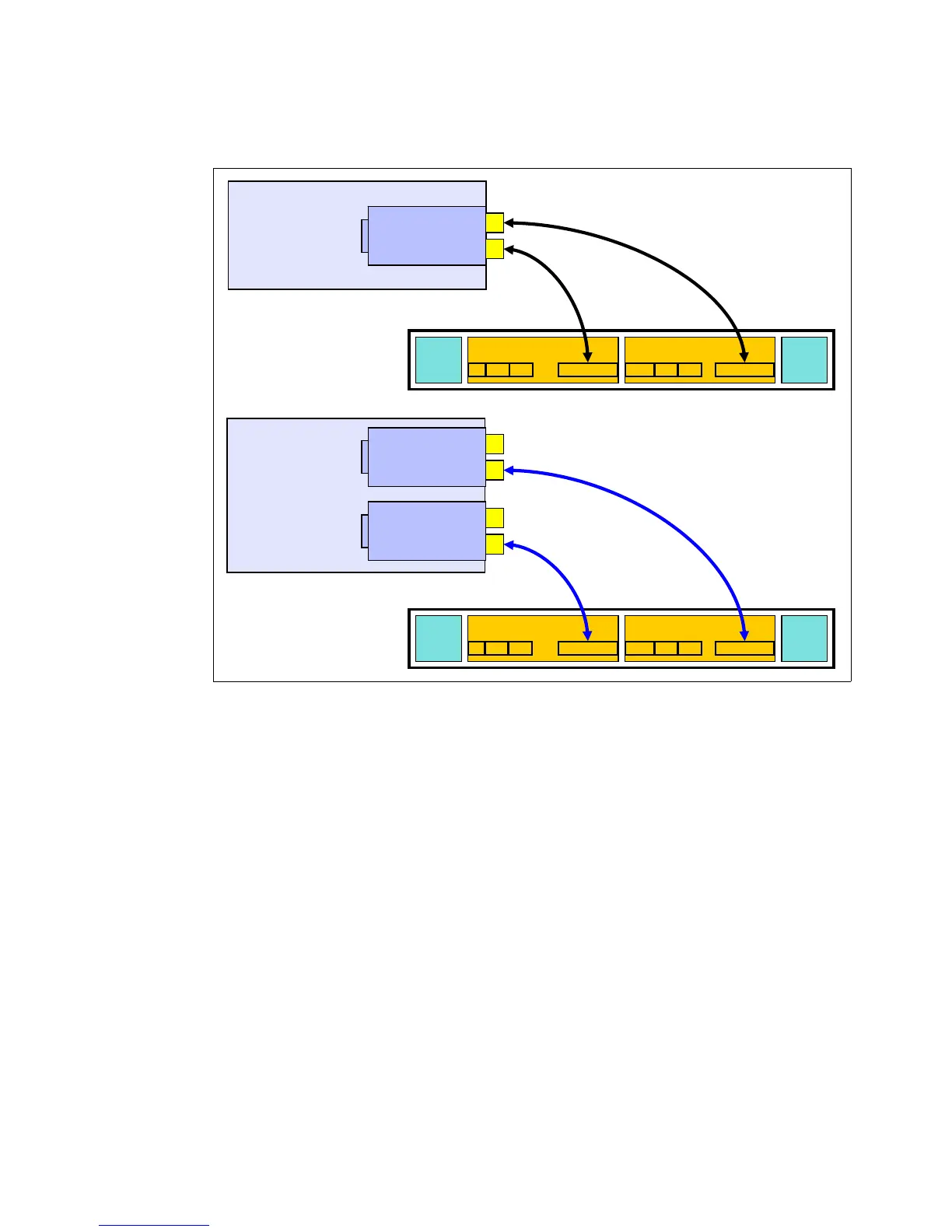

Figure 2-32 Connection between one or two FC EJ03 cards and a single FC EDR1 drawer
Power 740
ERM - C1
T1 T3
ERM - C2
PSU
P2
PCIe Gen2 8X cable
PCIe Gen2 8X cable
FC EDR1
FC EJ03
T2
8X
8X
T3
PSU
P1
T2 T1 T2
ERM - C1
T1
ERM - C2
PSU
P2
FC EDR1
PSU
P1
T2 T1 T2T3 T3
FC EJ03
T2
8X
8X
T1
FC EJ03
T2
8X
8X
T1
PCIe Gen2 8X cable
Power 720
or
Power 740
PCIe Gen2 8X cable
T1

IBM Power 720 Specifications

General

Processor	POWER7
Operating System	AIX, IBM i, Linux
Memory Slots	16
Disk Bays	8
RAID Support	RAID 0, 5, 6, 10
Form Factor	4U rack
Processor Speed	3.0 GHz or 3.7 GHz
