Chapter 1. General description 7
Table 1-5 shows the physical dimensions of the rack-mount models.
Table 1-5 Physical dimensions of the Power 720 and Power 740 rack-mount chassis

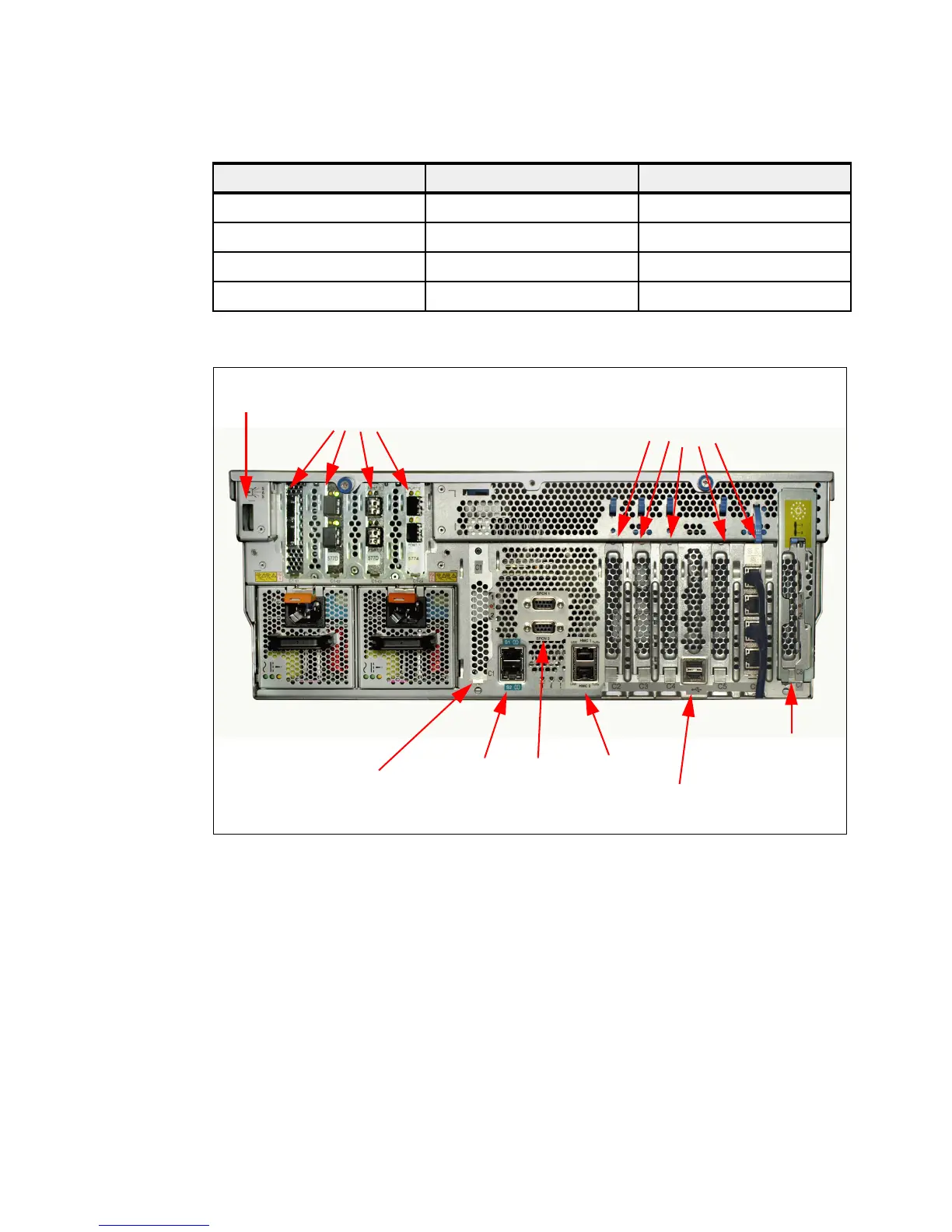

Figure 1-3 shows the rear view of a Power 740 with the optional PCIe expansion.
Figure 1-3 Rear view of a rack-mount Power 740 server
1.4 System features
The system chassis contains one processor module (Power 720) or up to two processor
modules (Power 740). Each POWER7+ processor module is either 4-core, 6-core, or 8-core
for the Power 720, and 6-core or 8-core for the Power 740. Each of the POWER7+ processor
chips in the server has a 64-bit architecture, up to 2 MB of L2 cache (256 KB per core) and up
to 80 MB of L3 cache (10 MB per core).
Dimension Power 720 (8202-E4D) Power 740 (8205-E6D)
Width 440 mm (17.3 ) 440 mm (17.3 in)
Depth 610 mm (24.0 in) 610 mm (24.0 in)
Height 173 mm (6.81 in) 173 mm (6.81 in)
Weight 48.7 kg (107.4 lb) 48.7 kg (107.4 lb)
External
SAS Port
5 x PCIe x8 Gen2 slots
GX++ Slot 1
(shared with PCIe
expansion feature)
System
Ports
SPCN
Ports
HMC
Ports
Optional
4 x PCIe x8 Gen2 slots
USB
Ports
Slot 2
GX++
4-port
1 Gb
Ethernet
or
