94 IBM Power 720 and 740 Technical Overview and Introduction

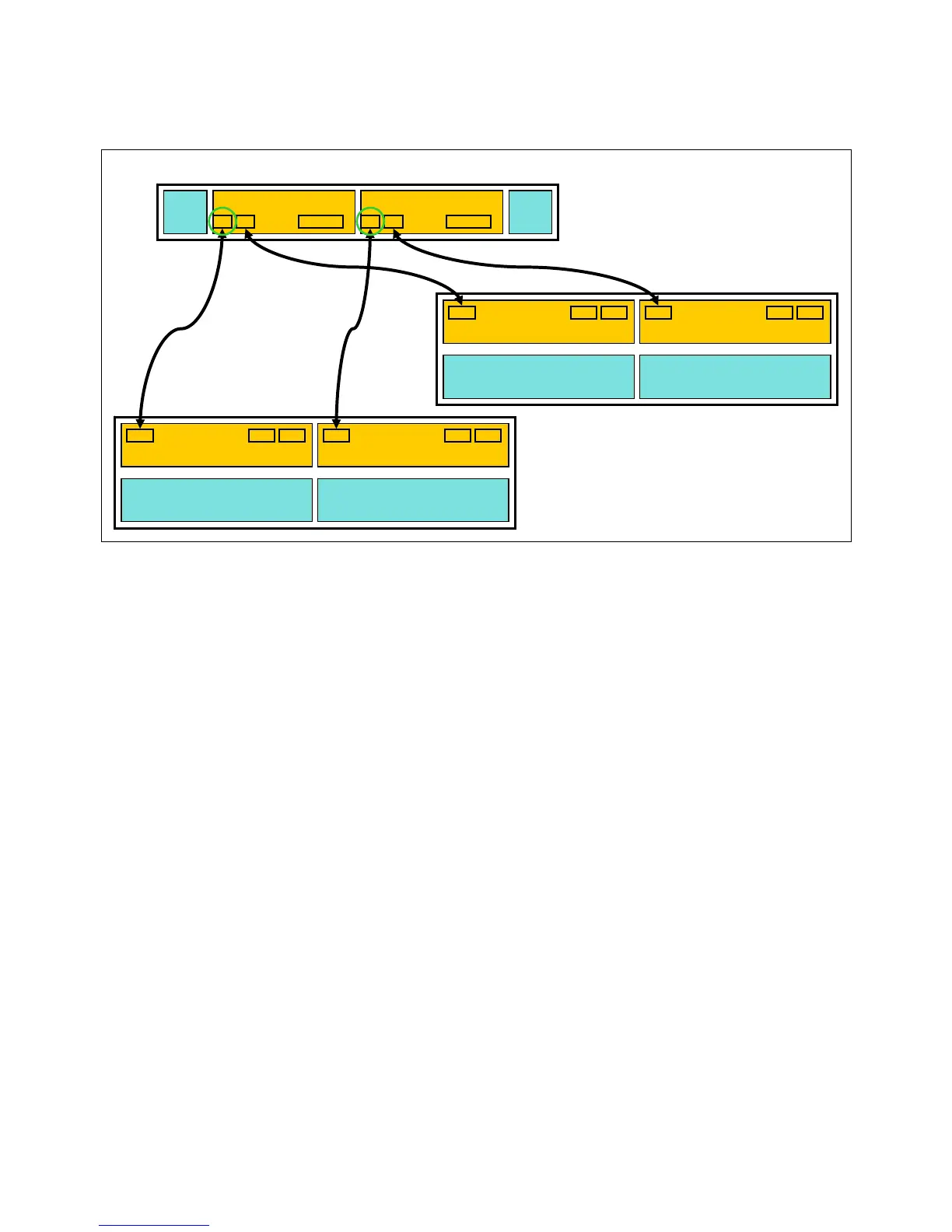

Figure 2-34 shows two EXP24S drawers connected to one EXP30 drawer.
Figure 2-34 FC EDR1 drawer connection to two FC 5887 drawers
More details about the EXP30 Ultra SSD I/O drawer are available at the following website:
http://pic.dhe.ibm.com/infocenter/powersys/v3r1m5/index.jsp?topic=/p7ham/p7ham_edr
1_kickoff.htm
2.10.2 EXP24S SFF Gen2-bay drawer
The EXP24S SFF Gen2-bay drawer (FC 5887) is an expansion drawer supporting up to 24
hot-swap 2.5-inch SFF SAS HDDs on POWER6, POWER6+, POWER7, or POWER7+
servers in 2U of 19-inch rack space.
The SFF bays of the EXP24S drawer differ from the SFF bays of the POWER7 or POWER7+
system units or of the 12X PCIe I/O Drawers (FC 5802 or FC 5803). The EXP24S uses Gen2
or SFF-2 SAS drives that physically do not fit in the Gen1 or SFF-1 bays of the POWER7 or
POWER7+ system unit or of the 12X PCIe I/O Drawers, or vice versa.
The drawer can be attached to the Power 720 and Power 740 either using the FC EJ01
storage backplane, providing an external SAS port, or using the following PCIe SAS adapters
or pair of adapters:
򐂰 PCIe LP Dual-x4-Port SAS adapter 3 Gb (FC 5278, CCIN 57B3)
򐂰 PCIe 380 MB Cache Dual - x4 3 Gb SAS RAID adapter (FC 5805, CCIN 574E)
򐂰 PCIe Dual-x4 SAS adapter 3 Gb (FC 5901, CCIN 57B3)
򐂰 PCIe 380 MB Cache Dual - x4 3 Gb SAS RAID adapter (FC 5903, CCIN 574E)
򐂰 PCI-X 1.5 GB Cache SAS RAID adapter 3 Gb (FC 5908)
򐂰 PCIe2 1.8 GB Cache RAID SAS adapter Tri-Port 6 Gb (FC 5913, CCIN 57B5)
򐂰 PCIe2 RAID SAS adapter Dual-Port 6 Gb (FC ESA1, CCIN 57B4)
򐂰 PCIe2 LP RAID SAS adapter Dual-Port 6 Gb (FC ESA2, CCIN 57B4)
ERM - C1
PSU
P2
FC EDR1
PSU
P1
T2 T3
ERM - C2
T2 T3
PSU
P1
ERM - C1
T2 T3
ERM - C2
T2 T3
PSU
P2
Second FC 5887 drawer
* SSDs only
* HDDs only
* HDDs only
PSU
P1
ERM - C1 ERM - C2
PSU
P2
First FC 5887 drawer
EX SAS Cables
EX SAS Cables
T1 T2 T3 T2 T3
T1 T1
T1 T1
T1
