Chapter 1. General description 39
1.14.10 OEM rack
The system can be installed in a suitable OEM rack, if the rack conforms to the EIA-310-D
standard for 19-inch racks. This standard is published by the Electrical Industries Alliance.
For details, see the IBM Power Systems Hardware information center:
http://pic.dhe.ibm.com/infocenter/powersys/v3r1m5/index.jsp?topic=/iphad_p5/iphado
emrack.htm
The following two key points are mentioned in the information center:
The front-rack opening must be 451 mm wide ± 0.75 mm (17.75 in. ± 0.03 in.), and the
rail-mounting holes must be 465 mm ± 0.8 mm (18.3 in. ± 0.03 in.) apart on center
(horizontal width between the vertical columns of holes on the two front-mounting flanges
and on the two rear-mounting flanges). Figure 1-13 shows a top view of the specification
dimensions.

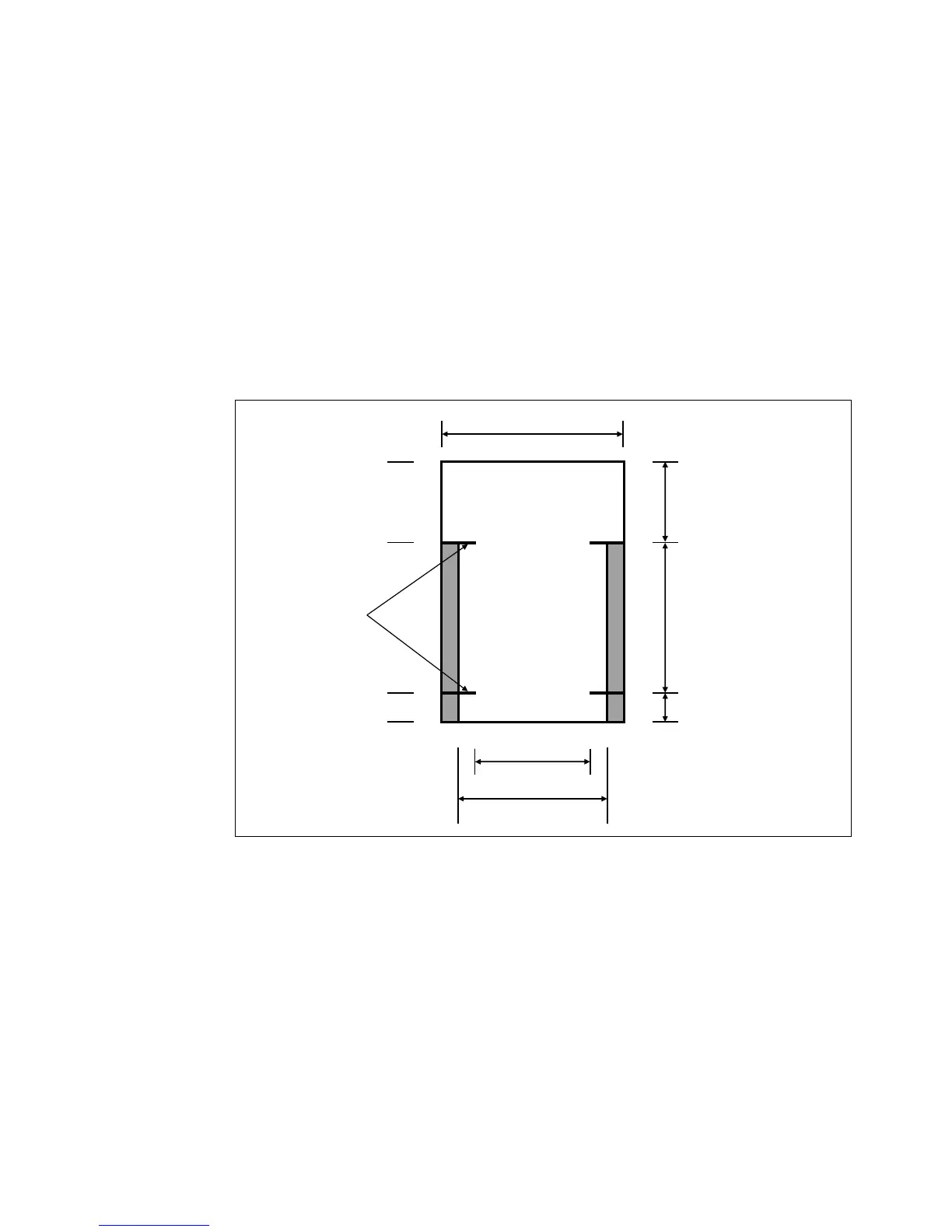

Figure 1-13 Top view of rack specification dimensions (that are not IBM)
571mm (22.50 in.)
Drawer Rail
Mounting
Flanges
Back, No Door
494mm (19.45 in.)
Front, No Door
203mm (8.0 in.)
719mm (28.31 in.)
51mm (2.01 in.)
451mm (17.76 in.)
494mm (19.45 in.)
