Chapter 2. Architecture and technical overview 65

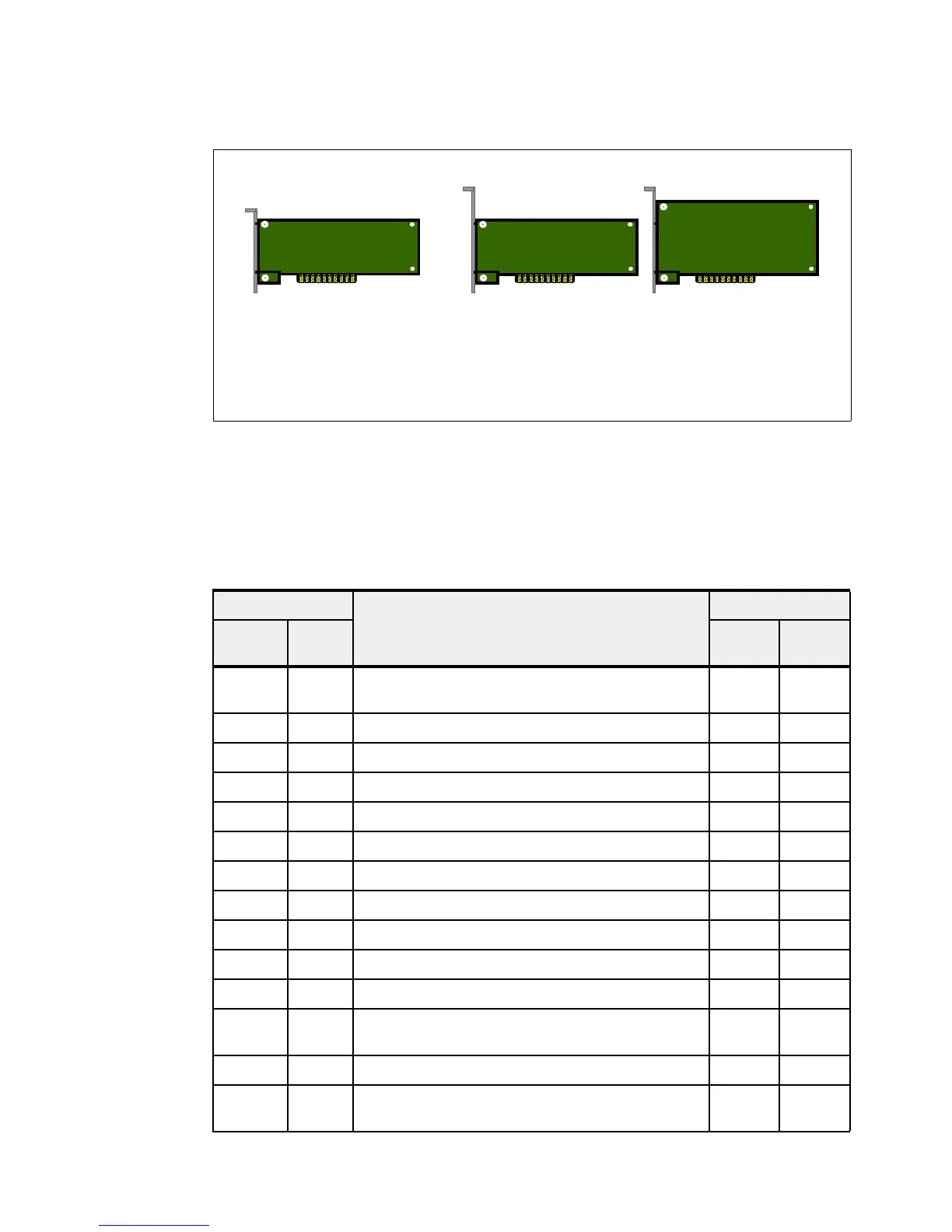

Figure 2-15 shows the PCIe adapter form factors.
Figure 2-15 PCIe adapter form factors
Many of the full-height card features are available in low-profile format. For example, the
FC 5273 8 Gb dual-port Fibre Channel adapter is the low-profile adapter equivalent of the
FC 5735 adapter full height. They have equivalent functional characteristics.
Table 2-10 is a list of low-profile adapter cards and their equivalents in full height.
Table 2-10 Equivalent adapter cards
Low profile Adapter description Full height
Feature
code
CCIN Feature
code
CCIN
2053 57CD PCIe RAID and SSD SAS adapter 3 Gb 2054 or
2055
57CD
5269 5269 PCIe POWER GXT145 Graphics Accelerator 5748 5748
5270 2B3B 10 Gb FCoE PCIe Dual Port adapter 5708 2B3B
5271 5271 4-Port 10/100/1000 Base-TX PCI Express adapter 5717 5271
5272 5272 10 Gigabit Ethernet-CX4 PCI Express adapter 5732 5732
5273 577D 8 Gigabit PCI Express Dual Port Fibre Channel adapter 5735 577D
5274 5768 2-Port Gigabit Ethernet-SX PCI Express adapter 5768 5768
5275 5275 10 Gb ENet Fibre RNIC PCIe 8x adapter 5769 5275
5276 5774 4 Gigabit PCI Express Dual Port Fibre Channel adapter 5774 5774
5277 57D2 4-Port Sync EIA-232 PCIe adapter 5785 57D2
5278 57B3 SAS Controller PCIe 8x adapter 5901 57B3
5280 2B44 PCIe2 LP 4-Port 10 Gb Ethernet &1 Gb Ethernet
SR&RJ45 adapter
5744 2B44
EN0B 577F PCIe2 16 Gb 2-Port Fibre Channel adapter EN0A 577F
EN0J 2B93 PCIe2 4-Port (10 Gb FCOE & 1 Gb Ethernet)
SR & RJ45 adapter
EN0H 2B93
Low Profile PCIe Slots
Power 710 / 730
Power 720 / 740
- PCIe riser card
Low Profile Full Height Full High
Full High PCIe Slots
Power 720 / 740 / 750 / 760 / 770 / 780 / 795
12X PCIe I/O Drawer
- FC 5802 / FC 5877 for 19-inch rack
- FC 5803 / FC 5873 for 24-inch rack
