Chapter 2. Architecture and technical overview 85

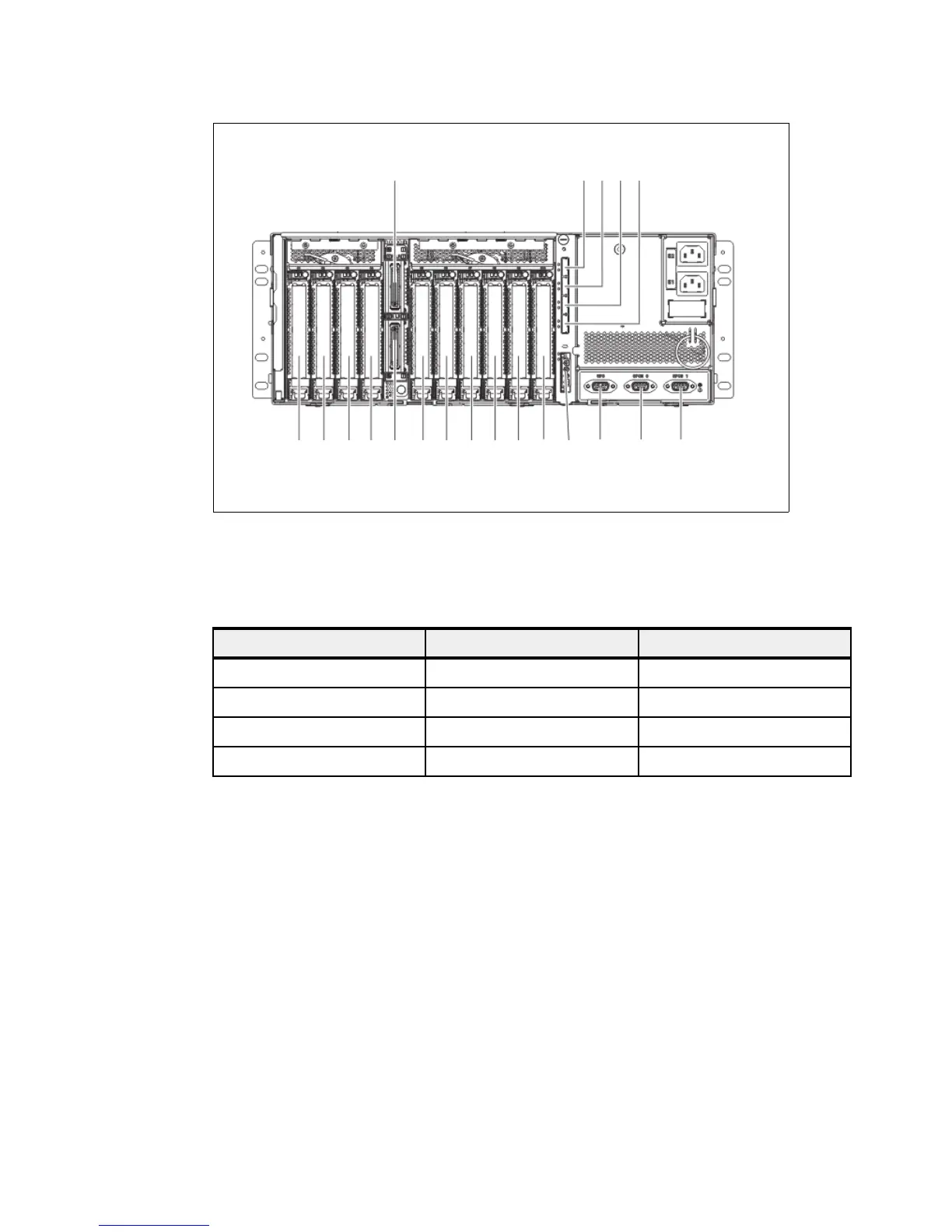

Figure 2-26 FC 5802 I/O drawer rear view location codes
Table 2-24 lists the SAS ports associated to the disk bays with the mode selector switch 4.
Other mode selection options are also available.
Table 2-24 SAS connection mappings
For more detailed information about cabling and other switch modes, see the Power Systems
enclosures and expansion units documentation:
http://pic.dhe.ibm.com/infocenter/powersys/v3r1m5/topic/ipham/ipham.pdf
Location code Mappings Number of bays
P4-T1 P3-D1 to P3-D5 5 bays
P4-T2 P3-D6 to P3-D9 4 bays
P4-T3 P3-D10 to P3-D14 5 bays
P4-T4 P3-D15 to P3-D18 4 bays
P1-C1 P1-C2 P1-C3 P1-C4
P1-T2
P1-C5 P1-C6 P1-C7 P1-C8 P1-C9
P1-C10
P4-T5
P2-T1
P2-T2 P2-T3
ARECW501-0
P4-T1 P4-T2 P4-T3 P4-T4 P1-T1
