Chapter 2. Power, controls, indicators, and connectors
You can use the control panel to turn the blade server on or off and to view some controls and indicators.
Other indicators are on the system board. The system board also has connectors for various components.
Blade server control panel buttons and LEDs
Blade server control panel buttons and LEDs provide operational controls and status indicators.
Note: Figure 1 shows the control-panel door in the closed (normal) position. To access the power-control
button, you must open the control-panel door.

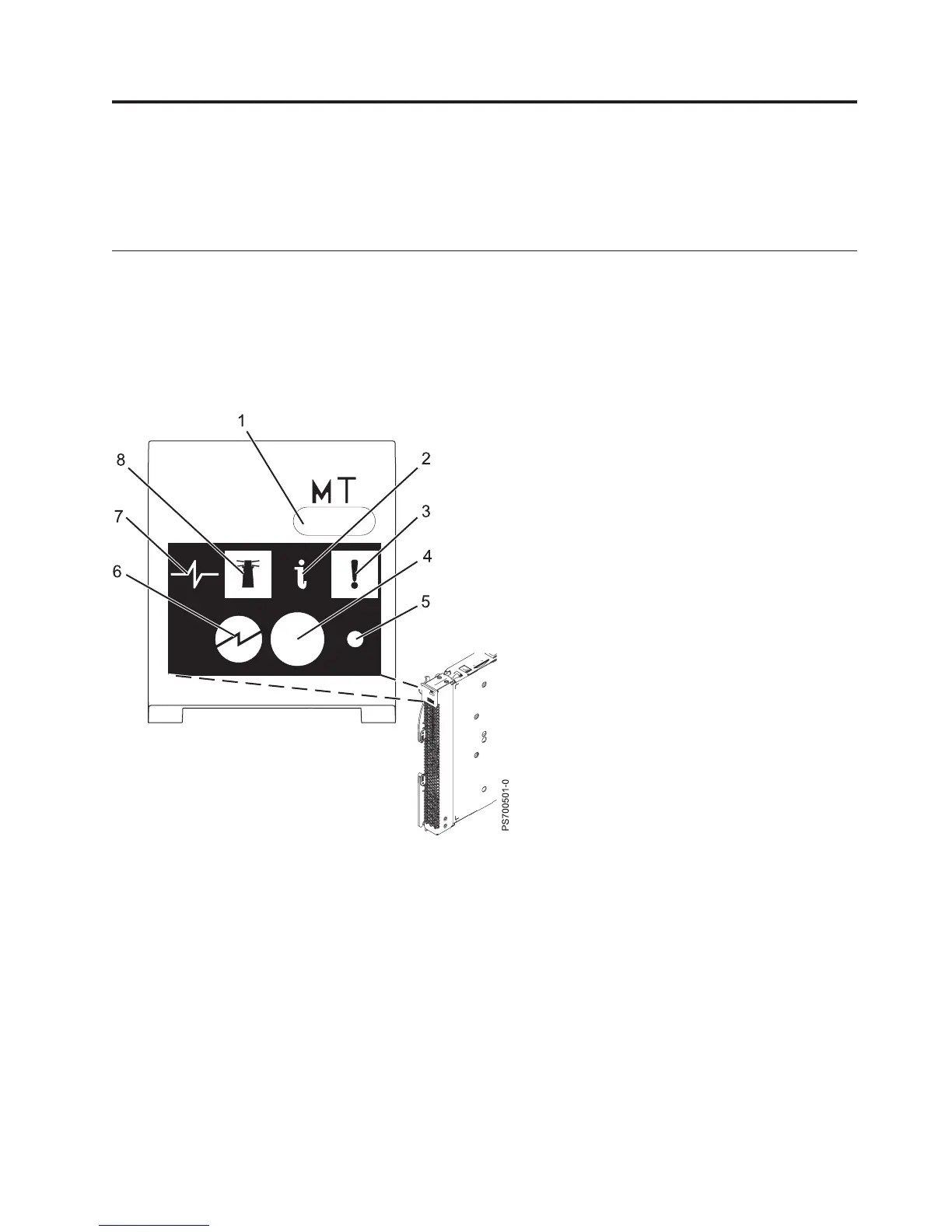

Figure 1. Blade server control panel buttons and LEDs
