Table 5 shows allowable placement of DIMM modules:

Table 5. Memory module combinations

DIMM

count PS700 Base blade planar (P1) DIMM slots

12345678

2 XX

4 XX XX

6 XXXXXX

8 XXXXXXXX

Removing and installing an I/O expansion card

Add an I/O expansion card to the blade server to provide additional connections for communicating on a

network.

The blade server supports various types of I/O expansion cards, including Gigabit Ethernet, Fibre

Channel, and Myrinet expansion cards.

Verify that any expansion card that you are using is listed on the ServerProven Web site in the list of

supported expansion cards for the PS700 blade server. For example, the following expansion cards are not

supported by the PS700 blade server:

v BladeCenter SFF Gb Ethernet

v Cisco 1X InfiniBand

v Qlogic iSCSI TOE Expansion Card (LFF)

v Broadcom 1Gb Ethernet (CIOv)

v SAS 3Gb Expansion Card (CIOv)

v Emulex 4Gb Fibre Channel Expansion Card (CIOv)

v Qlogic 4Gb SFF Fibre Channel Expansion card (CIOv)

See the ServerProven Web site for information about supported operating-system versions and all PS700

blade server optional devices.

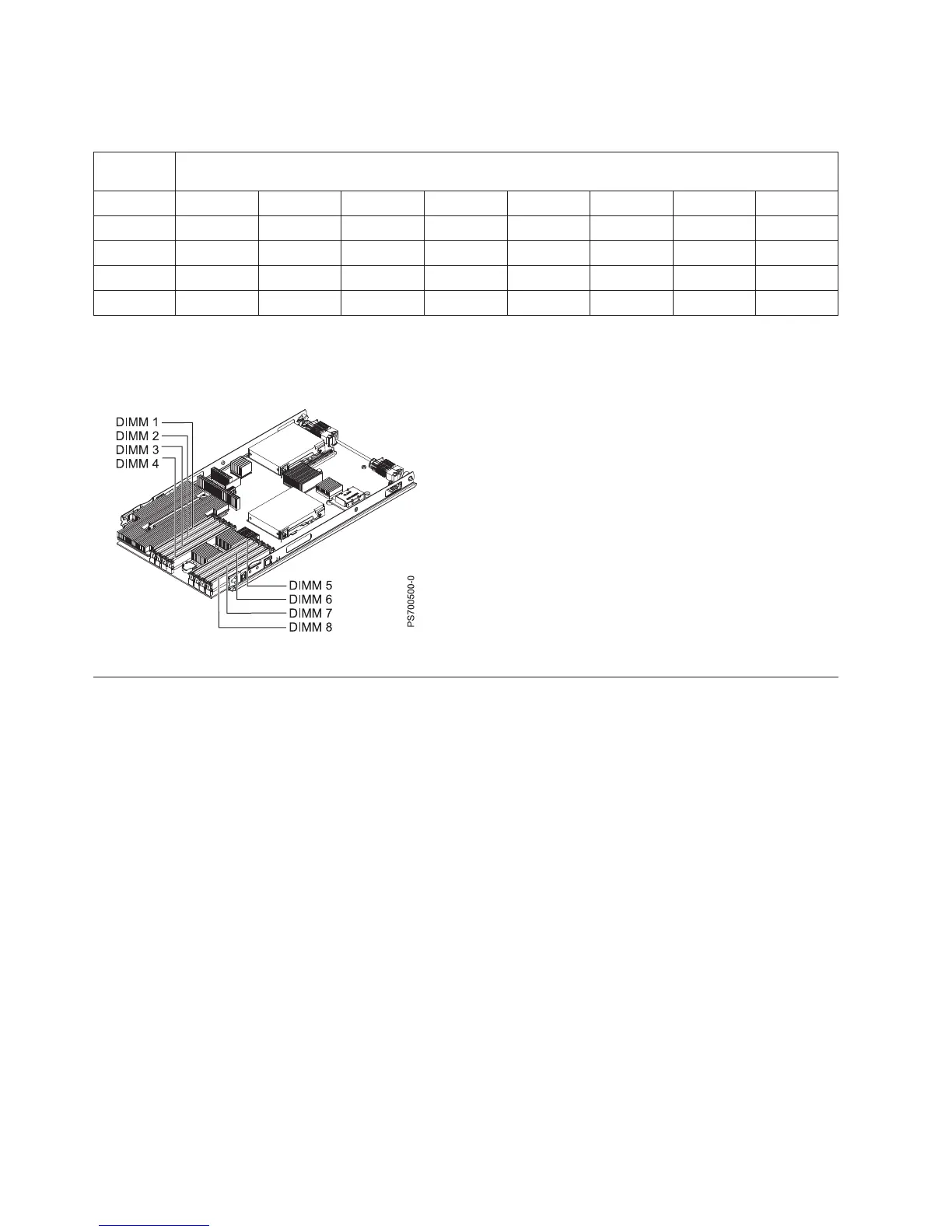

Figure 11. DIMM connectors. Base unit connectors

28 Power Systems: Installation and User's Guide for the IBM Power PS700 (8406-70Y)
