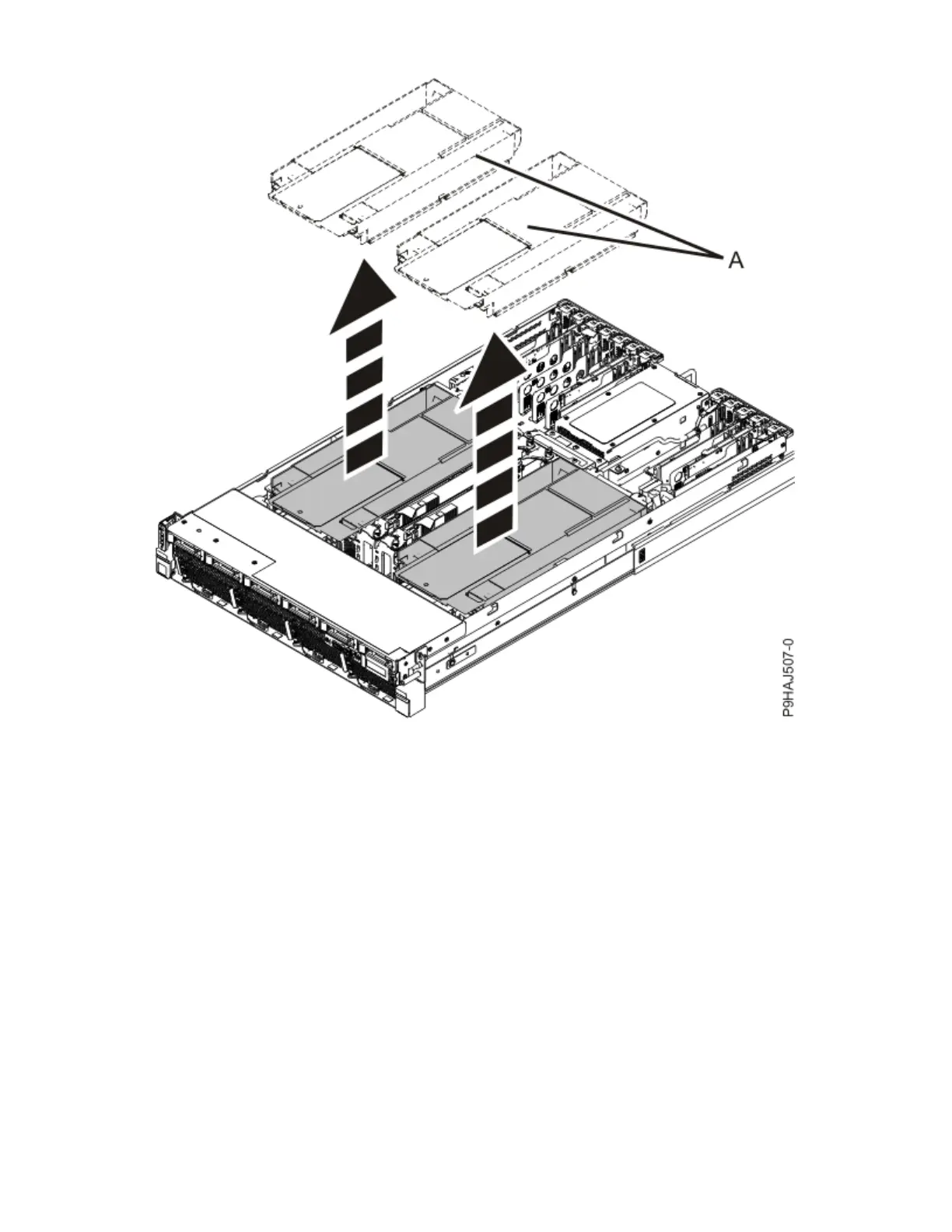

Figure 50. Removing the air baffle
3.
Unplug but do not remove the front drives and front
llers
if present from their slots. Pull out the driv
es
and
llers
far enough to prevent them from interfering with the removal of the NVMe drive backplane
as shown in the following
gure.
Drive backplanes for the 5105-22E, 9008-22L, 9009-22A, 9009-22G, or 9223-22H
53
66
68
