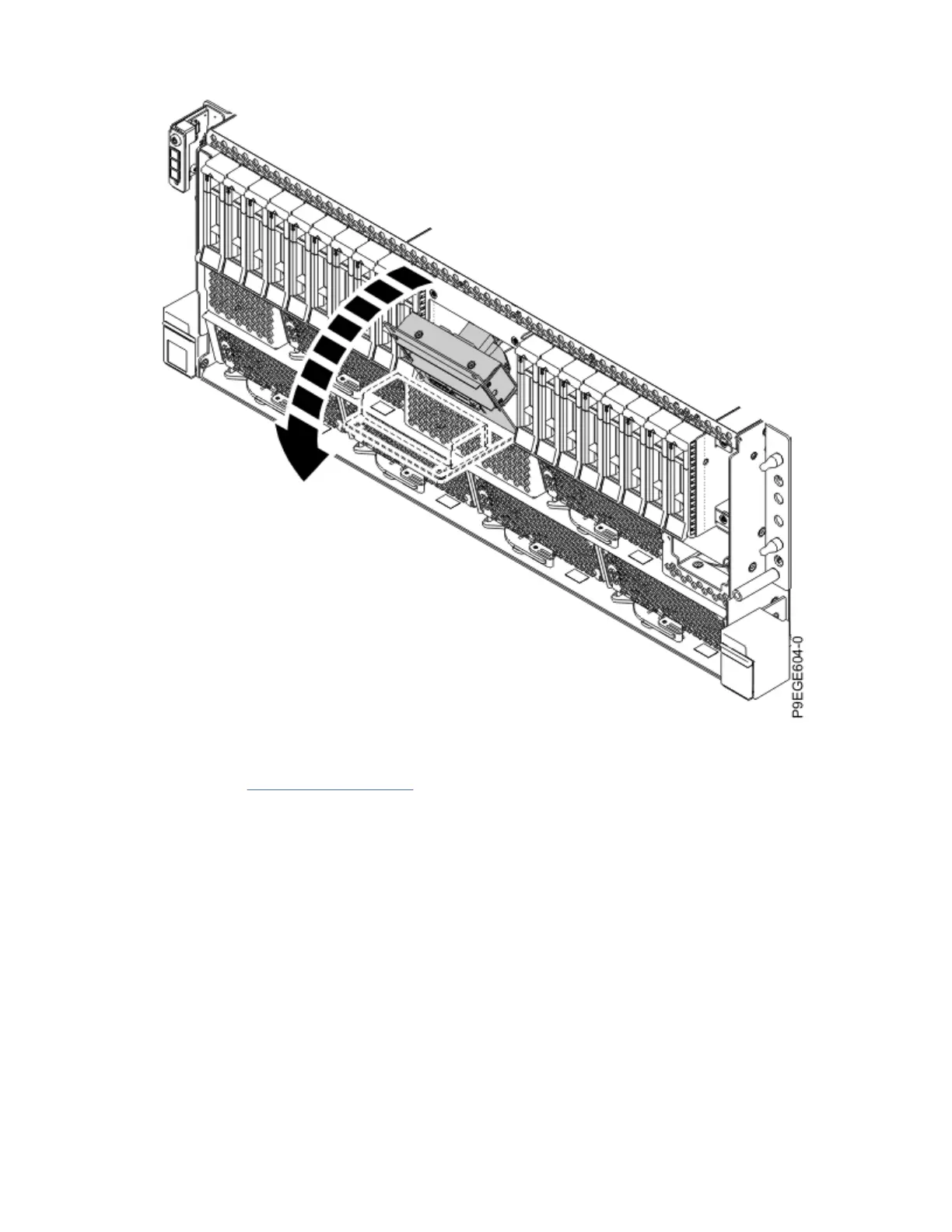

Figure 113. Opening the control panel display holder for a rack-mounted system
9. For the rack-mounted system, remove the control panel display housing and cable from the system
as shown in Figure 114 on page 119.
Ensure that the cable does not catch on any components while you are removing it.
118
Power Systems: Power Systems: Control panel
